Stereo Component Amplifier Communication Error

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Stereo Component Amplifier Communication Error

Stereo Component Amplifier Communication Error

INSPECTION PROCEDURE

PROCEDURE

1. IDENTIFY THE COMPONENT SHOWN BY SUB-CODE
(a) Enter the diagnostic mode.

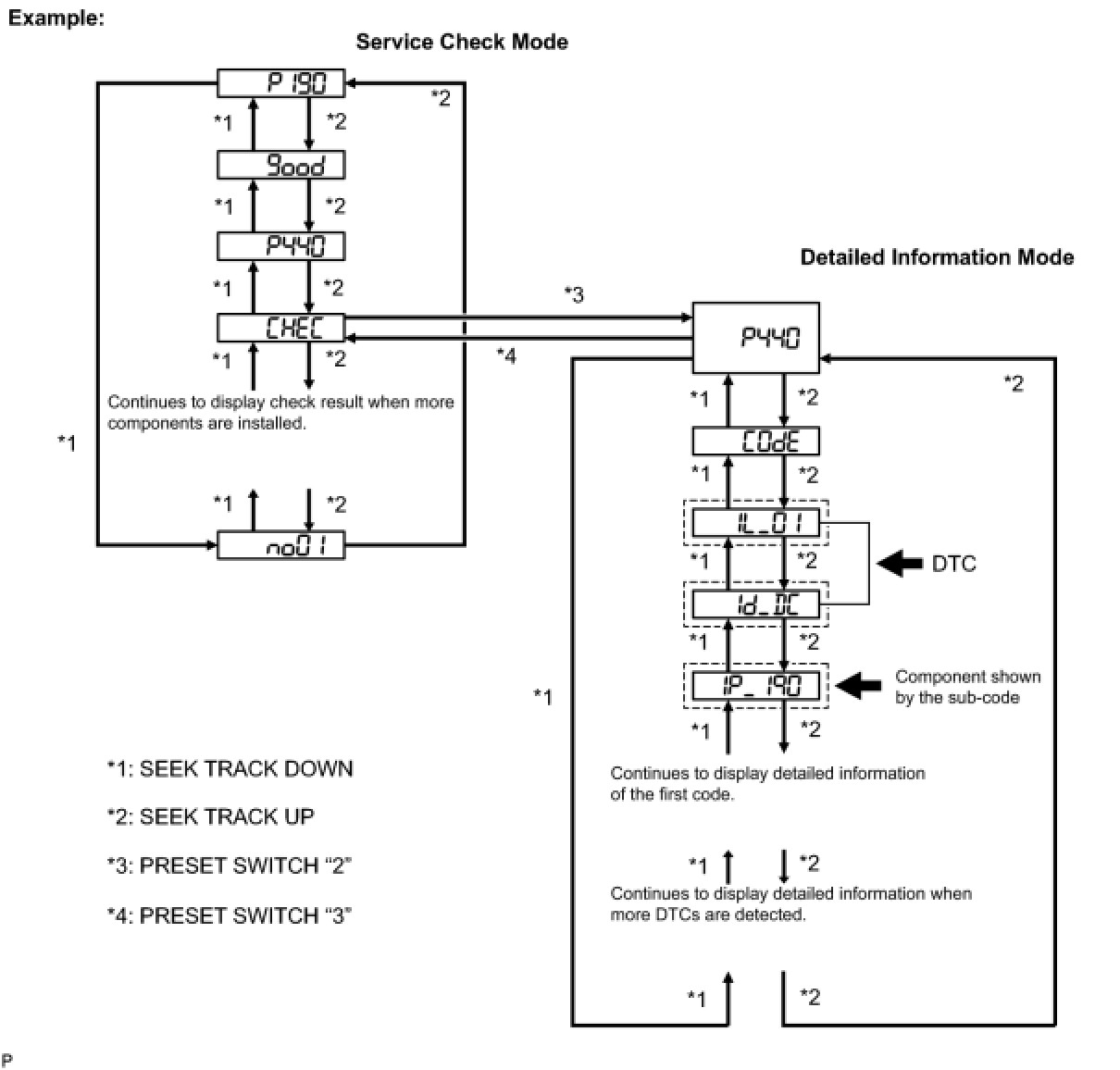

(b) Press the preset switch "3" to change the mode to "Detailed Information Mode".
(c) Identify the component shown by the sub-code.

HINT:
- For example, "190 (radio receiver)" is the component shown by the sub-code as shown in the illustration.
- For details of the DTC display, refer to "DTC CHECK/CLEAR" Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

2. CHECK COMPONENT WHICH HAS STORED THIS CODE
(a) Select the component which has stored this code.

HINT: The "Bluetooth" handsfree module is built into the radio receiver. If there is a problem between the "Bluetooth" handsfree module and radio receiver, replace the radio receiver.

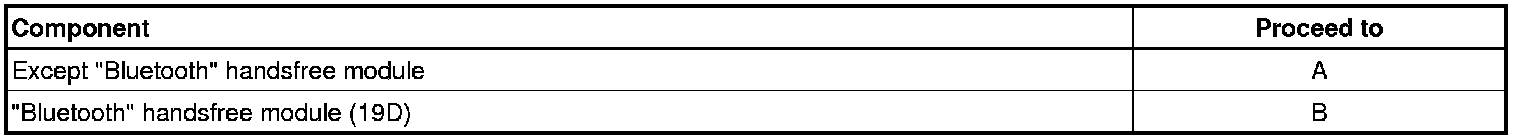

Component Table:





B -- REPLACE RADIO RECEIVER
A -- Continue to next step.

3. CHECK POWER SOURCE CIRCUIT OF COMPONENT SHOWN BY SUB-CODE
(a) Inspect the power source circuit of the component shown by the sub-code.
If the power source circuit is operating normally, proceed to the next step.

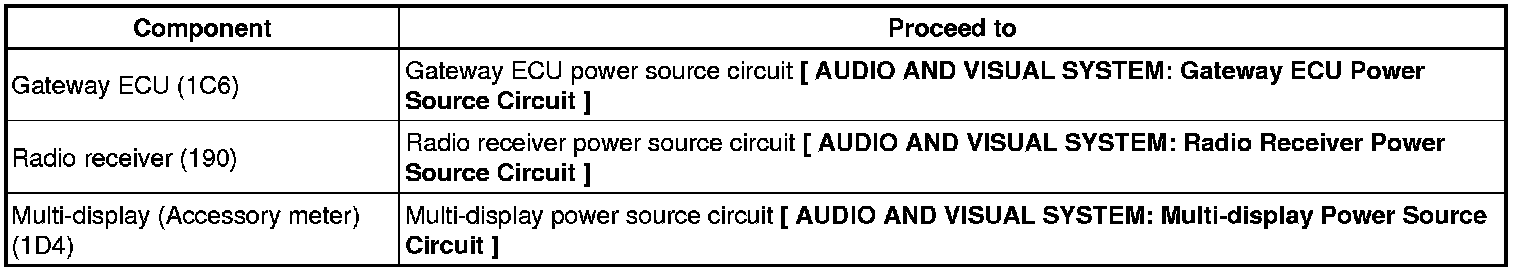

Component Table:





NEXT -- Continue to next step.

4. INSPECT RADIO RECEIVER





(a) Disconnect the radio receiver connectors.
(b) Measure the resistance according to the value(s) in the table below.

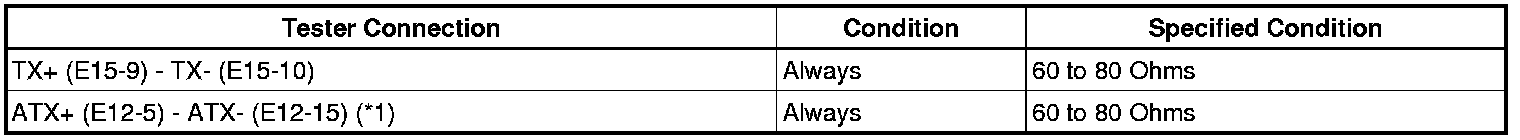

Standard resistance:





HINT: *1: for 12 Speaker System

NG -- REPLACE RADIO RECEIVER
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER - COMPONENT SHOWN BY SUB-CODE)

HINT:
- Start the check from the circuit that is near the component shown by the sub-code first.

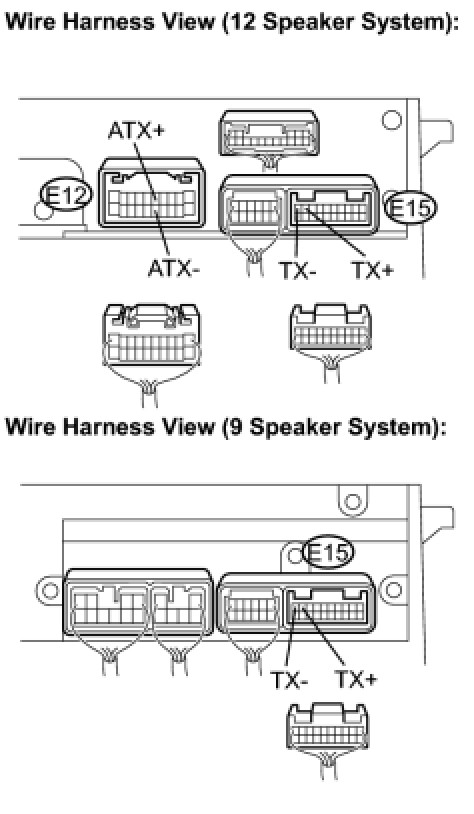

- For details of the connectors, refer to the "TERMINALS OF ECU" Pinout Values and Diagnostic Parameters.

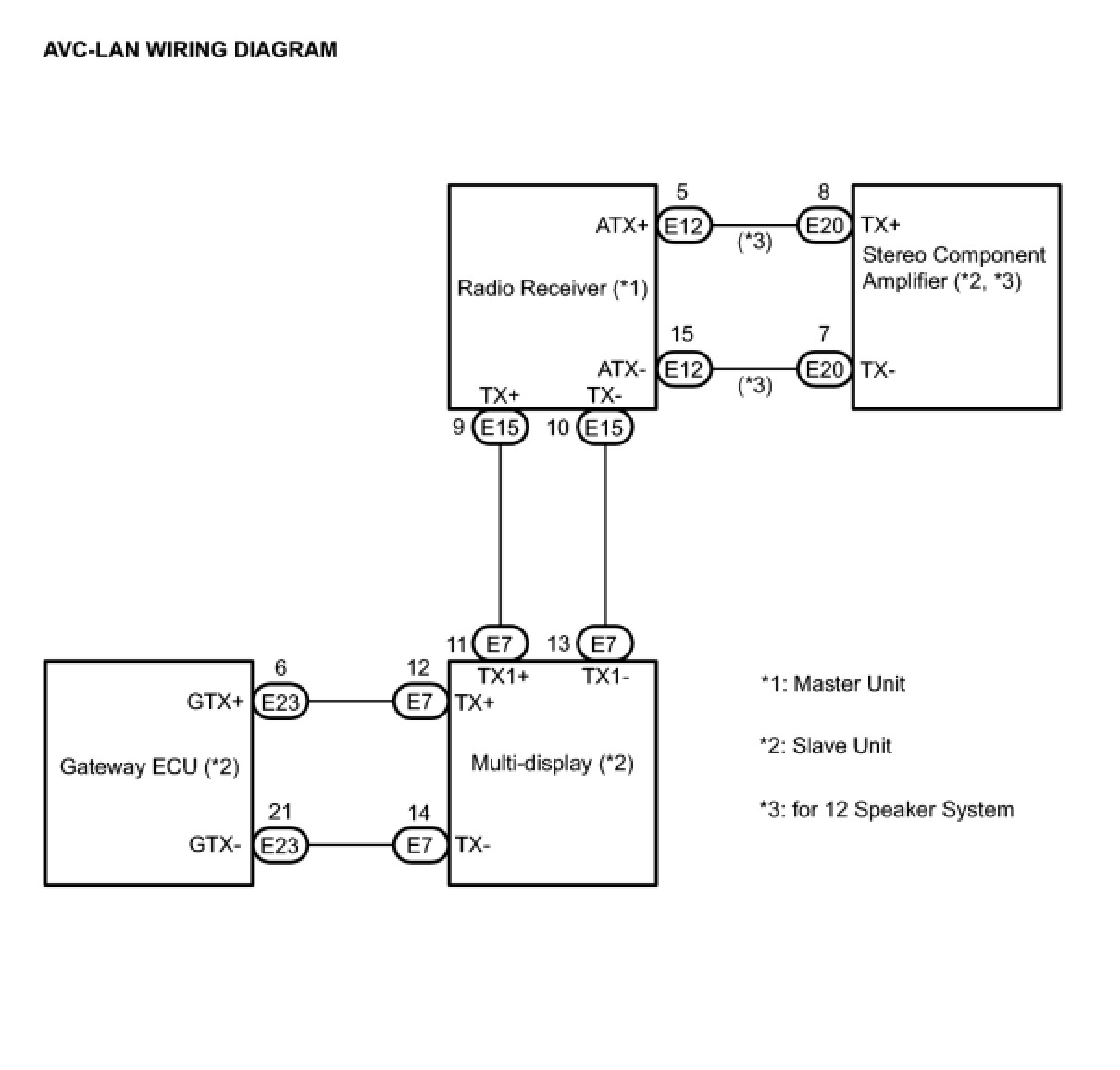

(a) Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the stereo component amplifier and the component shown by the sub-code.
(1) Disconnect all connectors between the stereo component amplifier and the component shown by sub-code.
(2) Check for an open or short in the AVC-LAN circuit between the stereo component amplifier and the component shown by the sub-code.
OK:
There is no open or short circuit.






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

6. REPLACE COMPONENT SHOWN BY SUB-CODE
(a) Replace the component shown by the sub-code with a normal one and check if the same problem occurs again.
OK:
Same problem does not occur.

NG -- REPLACE STEREO COMPONENT AMPLIFIER
OK -- END
