Disassembly

EXTERIOR: FRONT BUMPER: DISASSEMBLY

DISASSEMBLY

1. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light) Removal
2. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

HINT: Use the same procedure for the RH side and LH side.

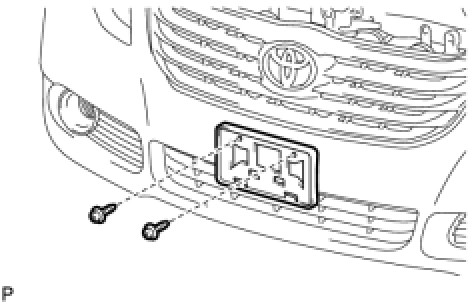

3. REMOVE FRONT LICENSE PLATE BRACKET (w/ Bracket)





(a) Remove the 2 screws.

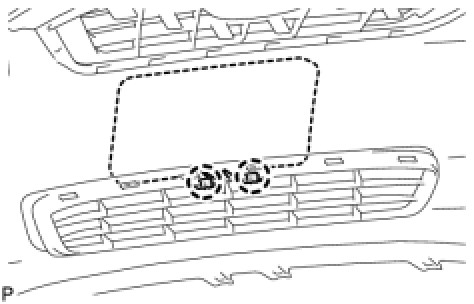

(b) Disengage the 2 claws and remove the front license plate bracket.

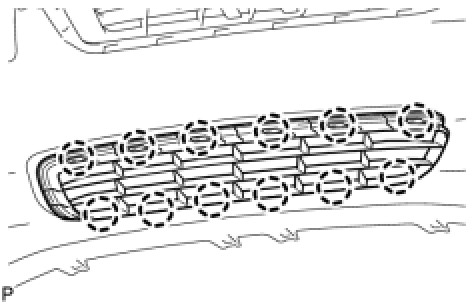

4. REMOVE LOWER RADIATOR GRILLE





(a) Disengage the 12 claws and remove the lower radiator grille.

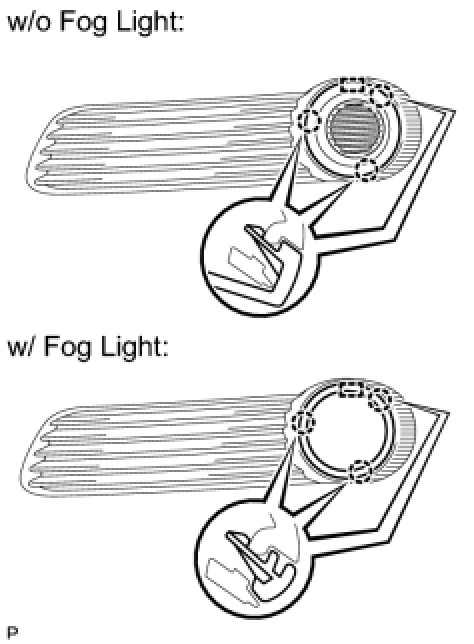

5. REMOVE FRONT BUMPER HOLE COVER LH





(a) Disengage the 6 claws and remove the front bumper hole cover LH.
6. REMOVE FRONT BUMPER HOLE COVER RH

HINT: Use the same procedure for the RH side and LH side.

7. REMOVE FRONT BUMPER SIDE MOULDING LH





(a) Disengage the 3 claws and guide, and remove the front bumper side moulding LH.
8. REMOVE FRONT BUMPER SIDE MOULDING RH

HINT: Use the same procedure for the RH side and LH side.

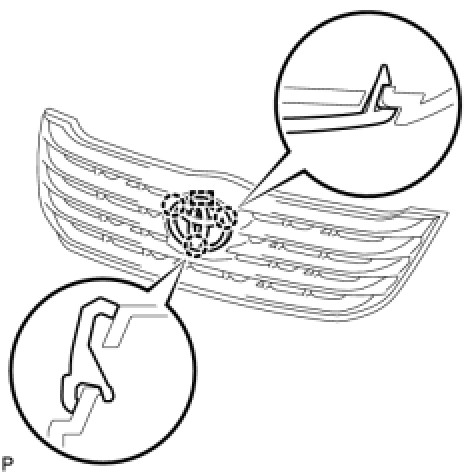

9. REMOVE RADIATOR GRILLE EMBLEM





(a) Disengage the 3 claws and guide, and remove the radiator grille emblem.
