Disposal

ENGINE HOOD / DOOR: HOOD SUPPORT: DISPOSAL

DISPOSAL

1. DISPOSE OF HOOD SUPPORT ASSEMBLY LH
(a) Horizontally fix the stay in a vise with the piston-rod pulled out.

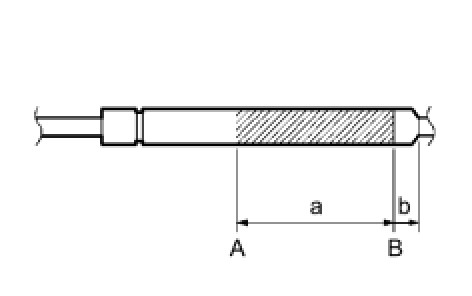

(b) Wearing safety glasses, slowly cut a part between A and B as shown in the illustration using a metal saw to gradually release the gas.
Specification:





CAUTION: Be careful to cover the area that is being cut as there is a possibility that metal debris could be blown out by the gas (the gas is colorless, odorless and harness).
