Disassembly

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR: DISASSEMBLY

DISASSEMBLY

HINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - How To Determine Nut Strength.

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

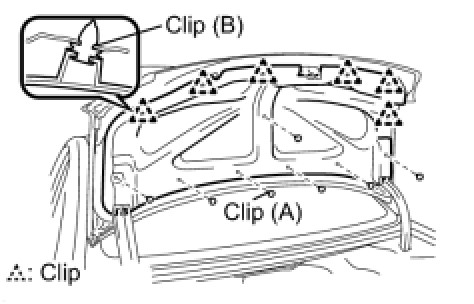

(a) Using a clip remover, remove the 7 clips (A).
(b) Disengage the 6 clips (B) and remove the luggage compartment door cover.
2. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

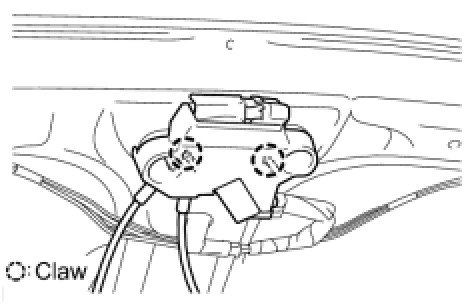

(a) Disengage the 2 claws and remove the cover.
(b) Disconnect the connector and control cable.





(c) Remove the 2 bolts and the luggage compartment door lock assembly.
3. REMOVE LUGGAGE COMPARTMENT DOOR HANDLE INSIDE
4. REMOVE REAR DOOR LOCK
5. REMOVE REAR DOOR LOCK
