Reassembly

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR: REASSEMBLY

REASSEMBLY

1. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

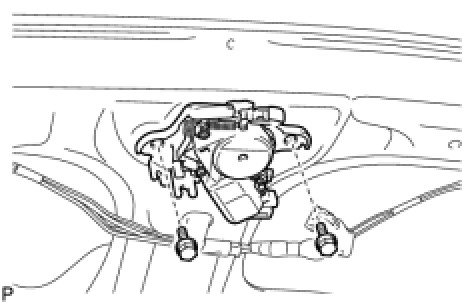

(a) Install the luggage compartment door lock assembly with the 2 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(b) Install the control cable.
(c) Connect the connector.
(d) Install the cover.
