Removal

EXTERIOR: NAME PLATE: REMOVAL

REMOVAL

HINT: When removing the name plate, heat the vehicle body and name plate using a heat light.

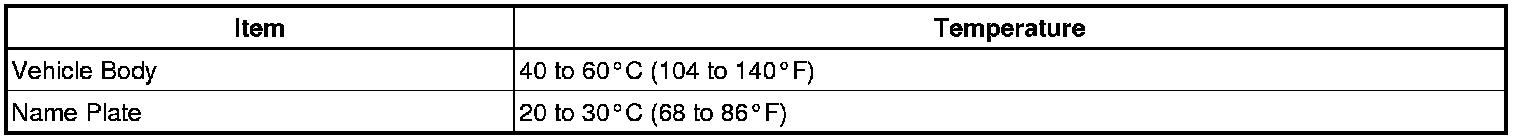

Heating temperature:





NOTE: Do not heat the vehicle body or name plate excessively.

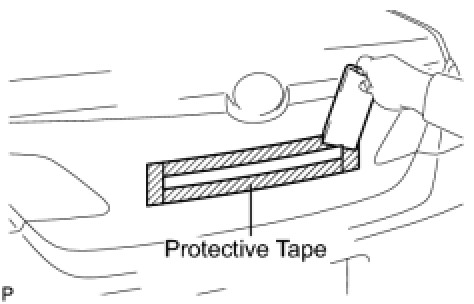

1. REMOVE BACK DOOR NAME PLATE





(a) Put protective tape around the name plate.
(b) Using a moulding remover, peel off the double-sided tape and remove the name plate.

NOTE: Be careful not to damage the vehicle body.

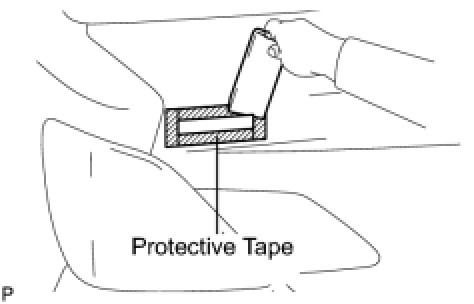

2. REMOVE NO. 7 LUGGAGE COMPARTMENT DOOR NAME PLATE





(a) Put protective tape around the name plate.
(b) Using a moulding remover, peel off the double-sided tape and remove the name plate.

NOTE: Be careful not to damage the vehicle body.

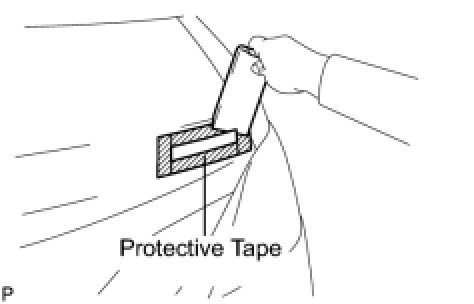

3. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR NAME PLATE





(a) Put protective tape around the name plate.
(b) Using a moulding remover, peel off the double-sided tape and remove the name plate.

NOTE: Be careful not to damage the vehicle body.

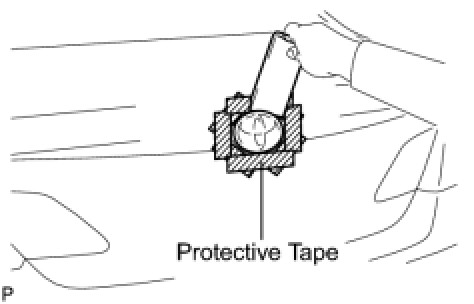

4. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE





(a) Put protective tape around the name plate.
(b) Using a moulding remover, peel off the double-sided tape and remove the name plate.

NOTE: Be careful not to damage the vehicle body.
