Installation

EXTERIOR: OUTSIDE MOULDING: INSTALLATION

INSTALLATION

1. INSTALL OUTSIDE MOULDING
(a) Using a heat light, heat the body.
(b) Remove the protective tape from the body.
(c) Wipe off the stains with cleaner.
(d) Clean the moulding (if reusing the moulding).
(1) Using a heat light, heat the moulding.
(2) Remove the double-sided tape from the moulding.
(3) Wipe off the stains with cleaner.

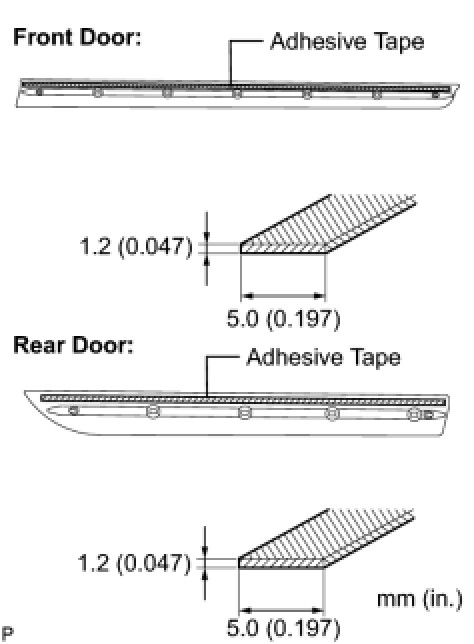

(4) Apply new double-sided tape to the moulding as shown in the illustration.
(e) Using a heat light, heat the body and moulding.
(f) Remove the peeling paper from the face of the moulding and attach the moulding securely to the vehicle body.

NOTE: Be careful that dirt or foreign objects do not stick to adhesive part when removing the peeling paper.

(g) Push the moulding to the body.

NOTE: Do not apply excessive force onto the moulding. Instead, apply steady pressure with your thumbs.

(h) Front Door:
Install the outside moulding with the 2 nuts.
(i) Rear Door:
Install the outside moulding with the nut.
