Removal

EXTERIOR: OUTSIDE MOULDING: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
3. REMOVE FRONT ARMREST BASE PANEL UPPER LH
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
5. REMOVE FRONT NO.1 SPEAKER ASSEMBLY
6. REMOVE FRONT DOOR SERVICE HOLE COVER LH
7. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH
8. REMOVE REAR DOOR ARMREST BASE PANEL UPPER LH
9. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
10. REMOVE REAR DOOR INSIDE PANEL BRACKET NO.1 LH
11. REMOVE REAR SPEAKER ASSEMBLY
12. REMOVE REAR DOOR SERVICE HOLE COVER LH

HINT: When replacing the moulding, heat the body and moulding using a heat light.

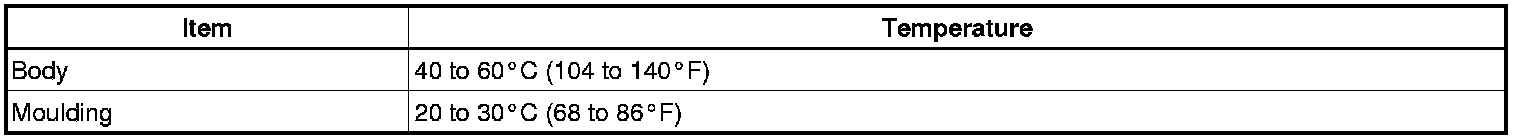

Heating temperature:





NOTE: Do not heat the body and moulding excessively.

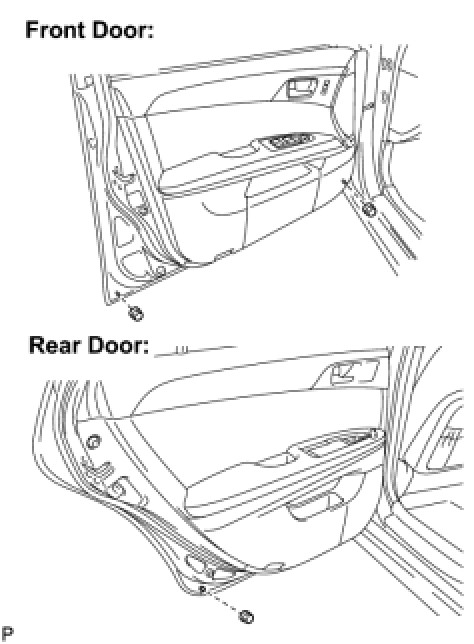

13. REMOVE OUTSIDE MOULDING





(a) Front Door:
Remove the 2 nuts.
(b) Rear Door:
Remove the nut.

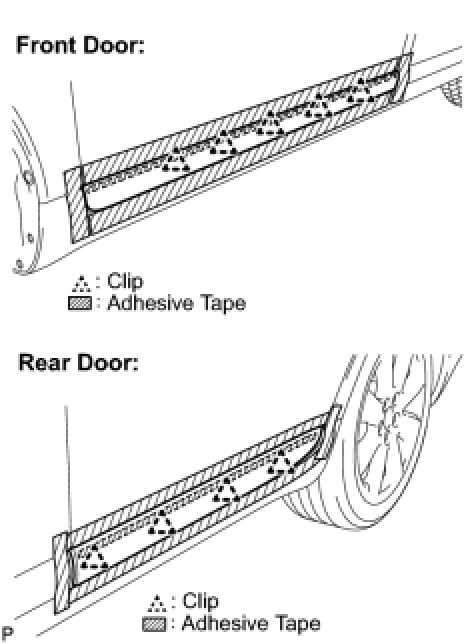

(c) Put protective tape around the edges of the moulding.
(d) Using a heat light, heat the moulding.

NOTE: Do not heat the moulding excessively.

(e) Using a moulding remover, remove the clips and the outside moulding.
