LIGHTING: PERSONAL LIGHT ASSEMBLY: INSPECTION

INSPECTION

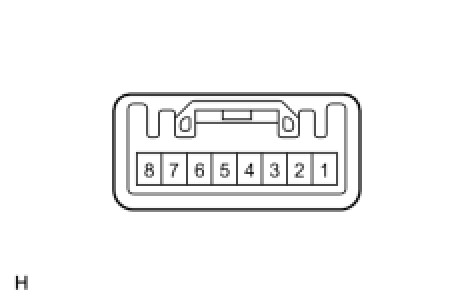

1. INSPECT PERSONAL LIGHT ASSEMBLY

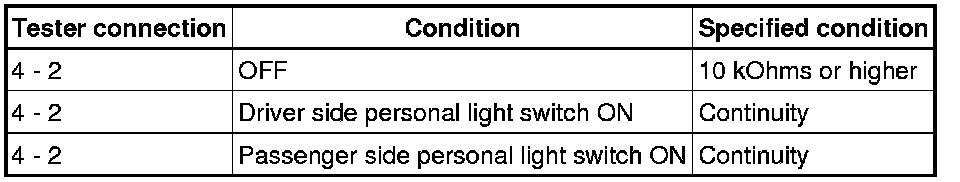

(a) Measure the resistance according to the value(s) in the table below.
Resistance:
