Door Lock - Smart Key System
Door Lock - Smart Key System

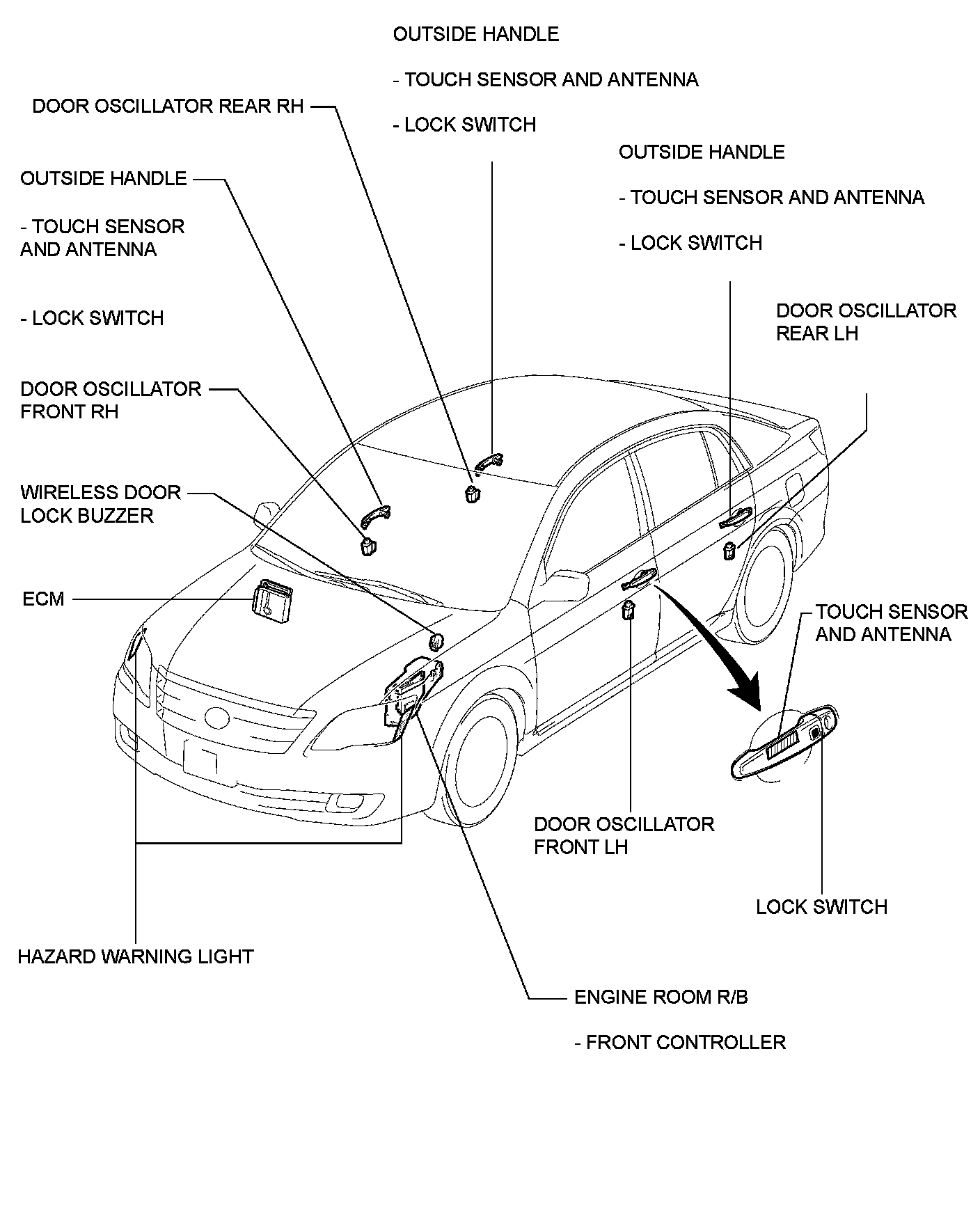

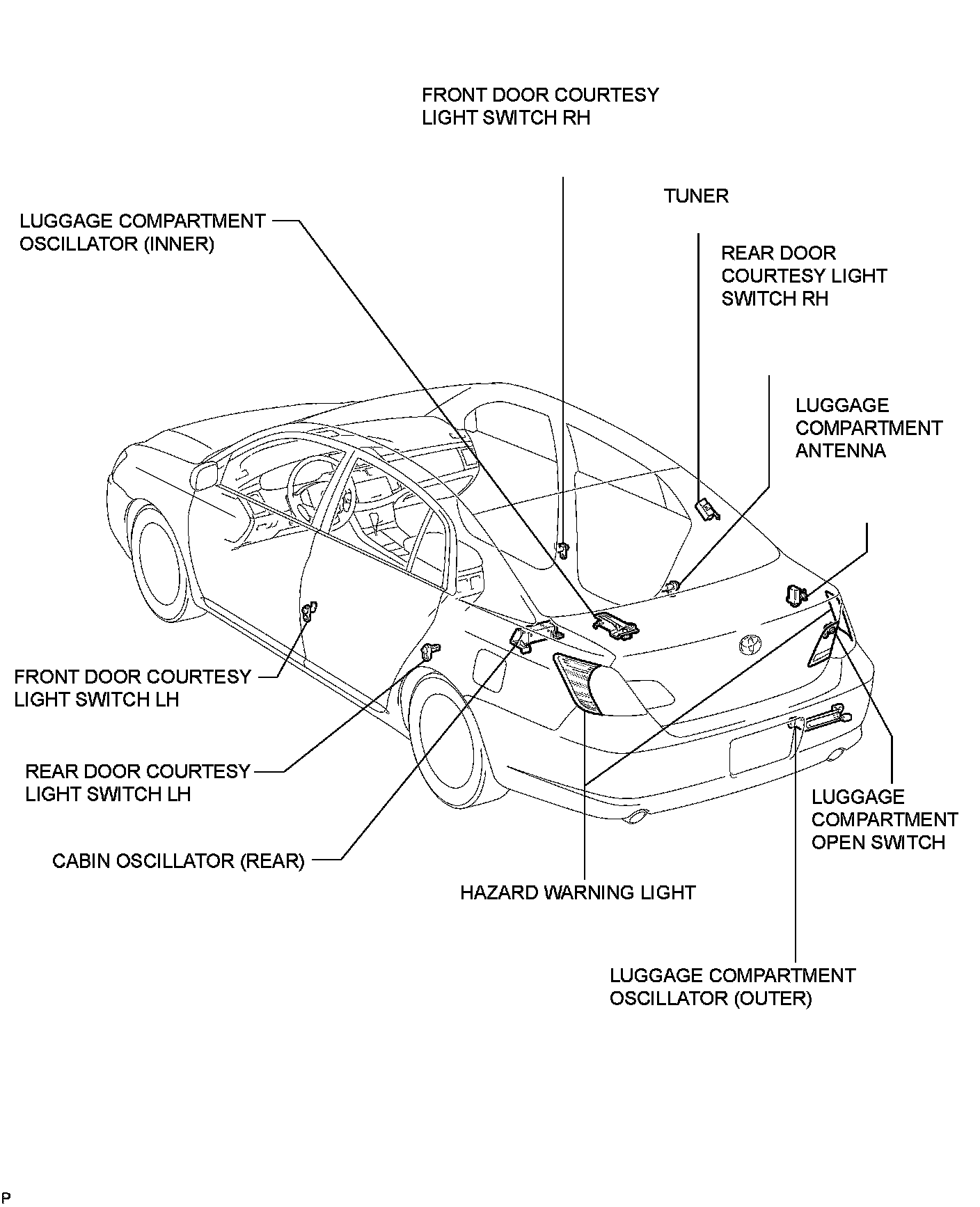

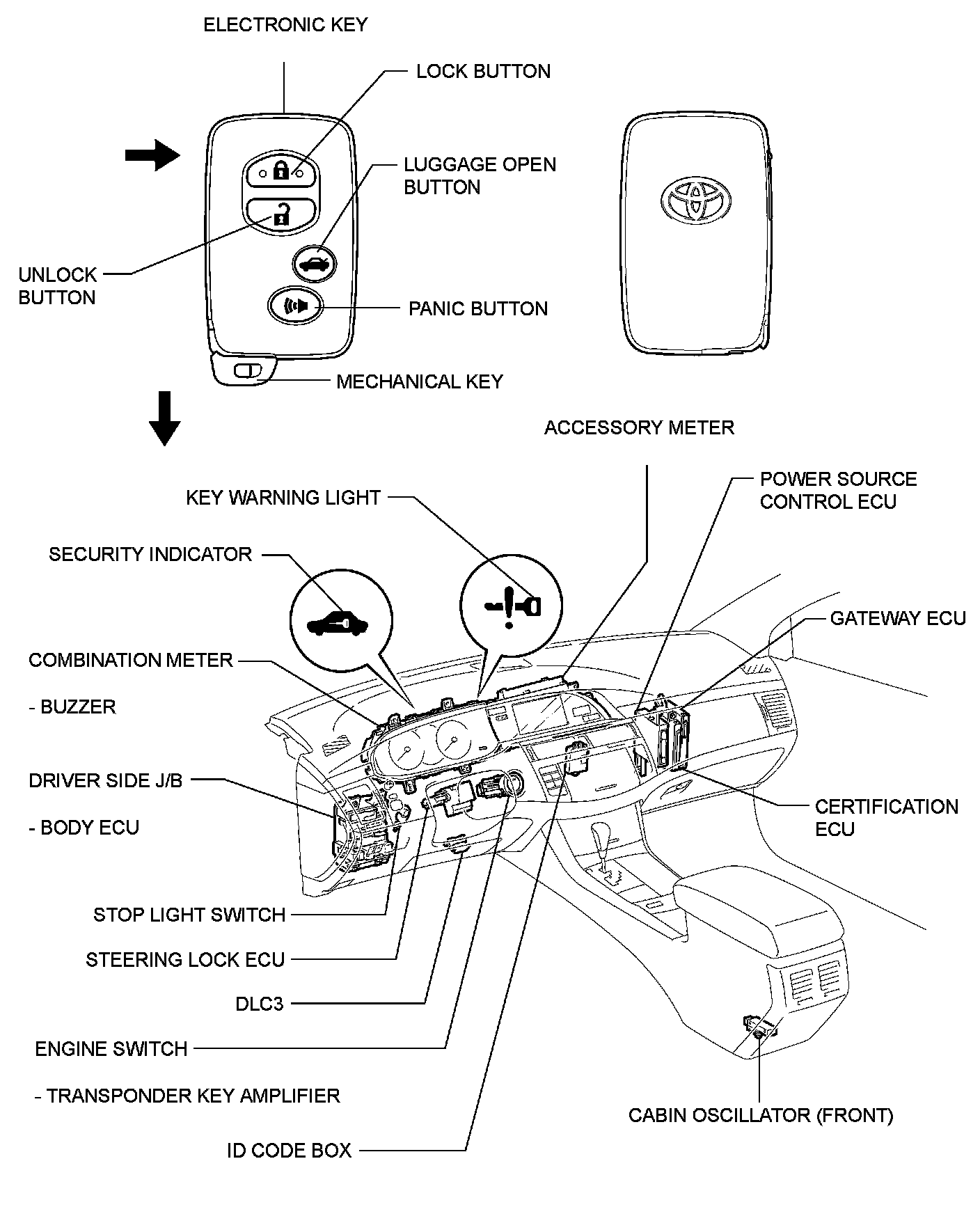

DOOR LOCK: SMART KEY SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
