Power Source Circuit

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: Power Source Circuit

Power Source Circuit

DESCRIPTION

This circuit supplies power to operate the body ECU.

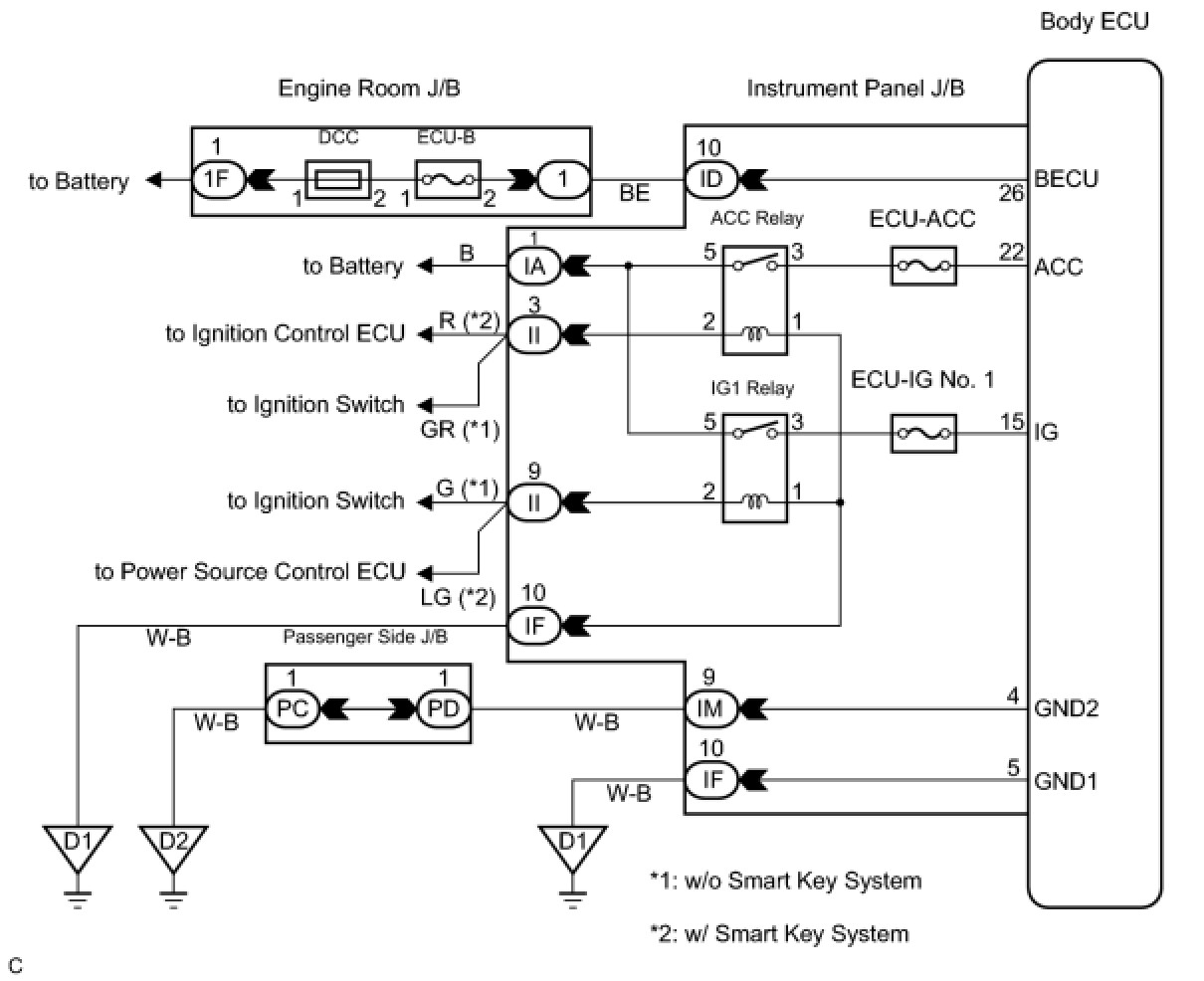

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

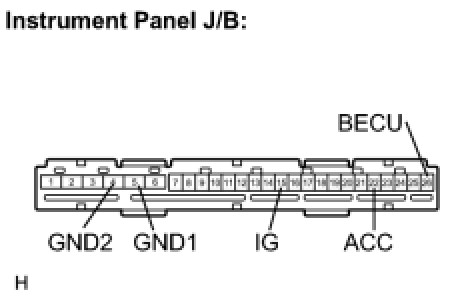

1. CHECK WIRE HARNESS (INSTRUMENT PANEL J/B - BATTERY AND BODY GROUND)





(a) Remove the body ECU from instrument panel J/B.

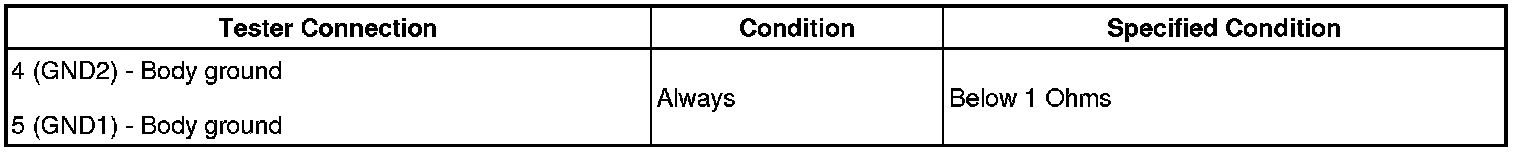

(b) Measure the resistance according to the value(s) in the table below.
Resistance:

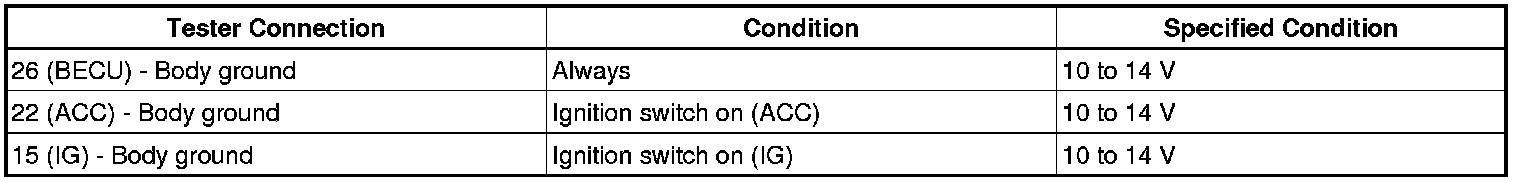

(c) Measure the voltage according to the value(s) in the table below.
Voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
