Fail-Safe Chart

DOOR LOCK: SMART KEY SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

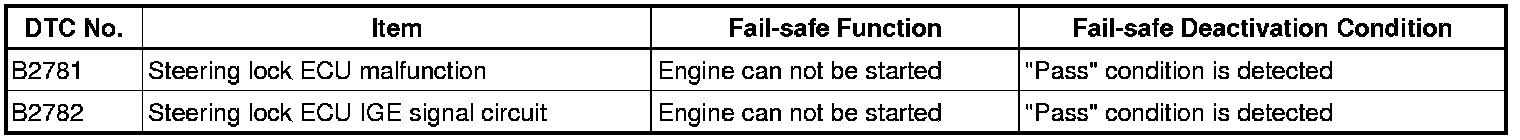

If any of the following codes is recorded, the power source control ECU enters the fail-safe mode.

POWER SOURCE CONTROL ECU





CERTIFICATION ECU
