Power Door Lock Control System








DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

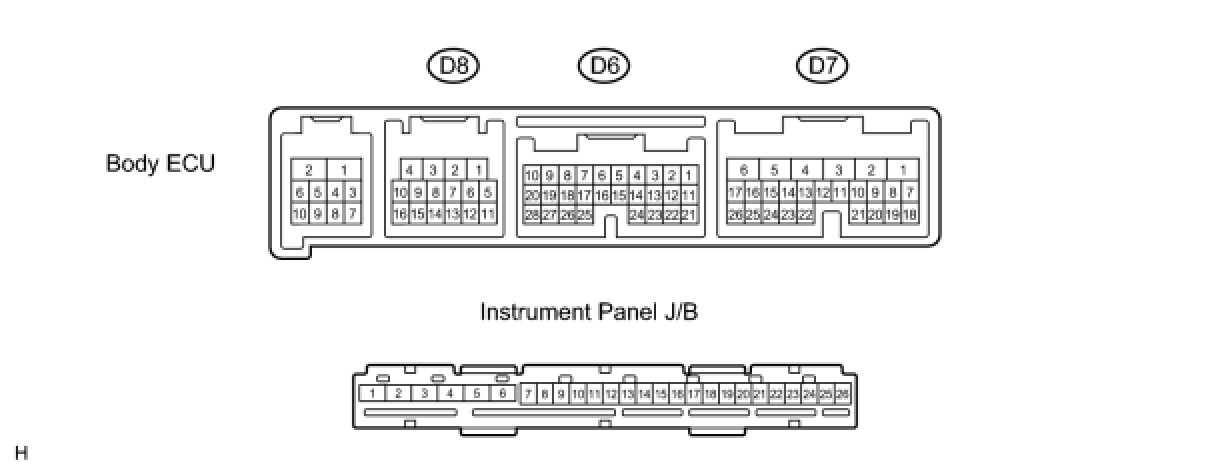

1. INSTRUMENT PANEL J/B (BODY ECU)

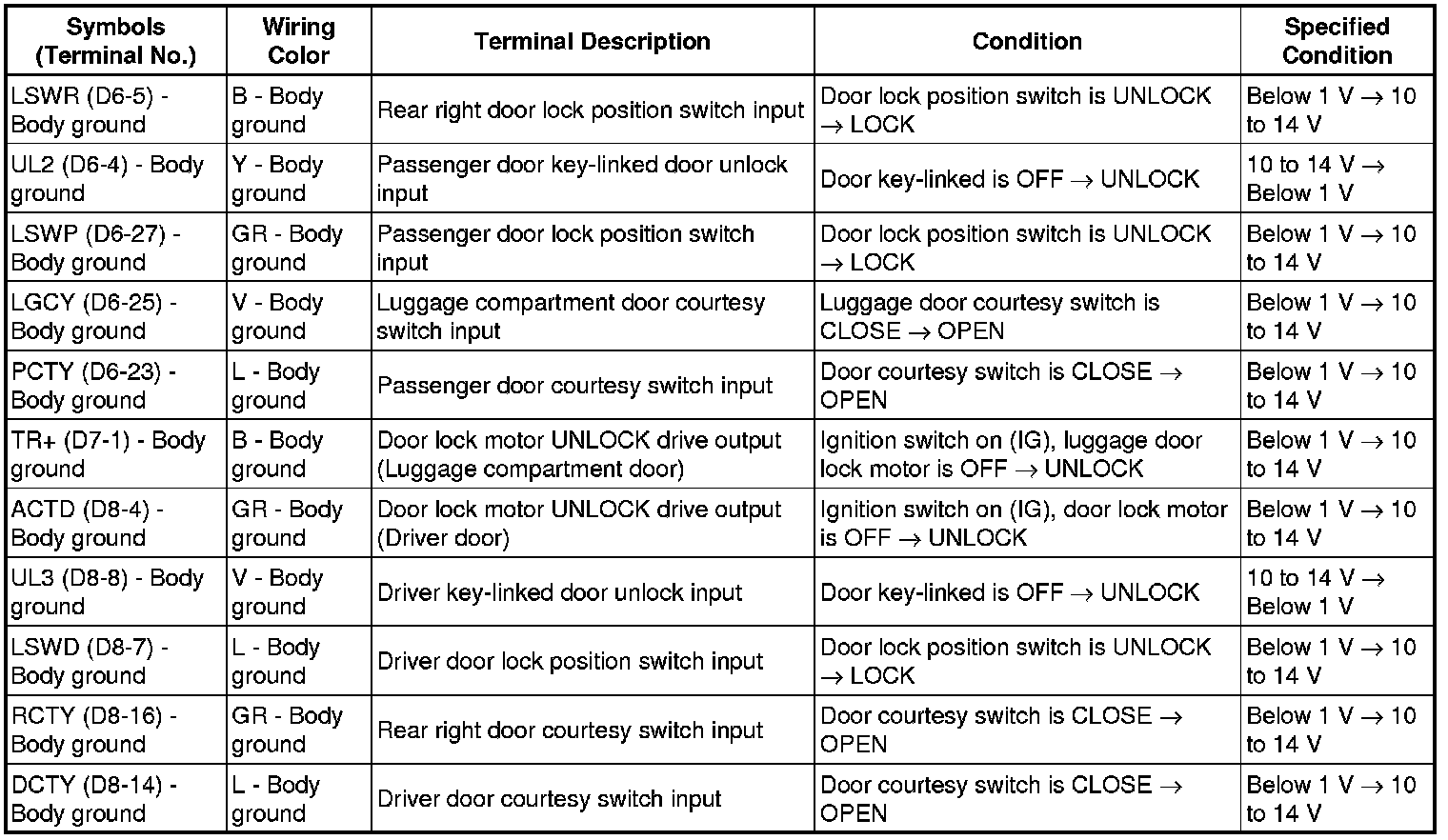

BODY ECU:

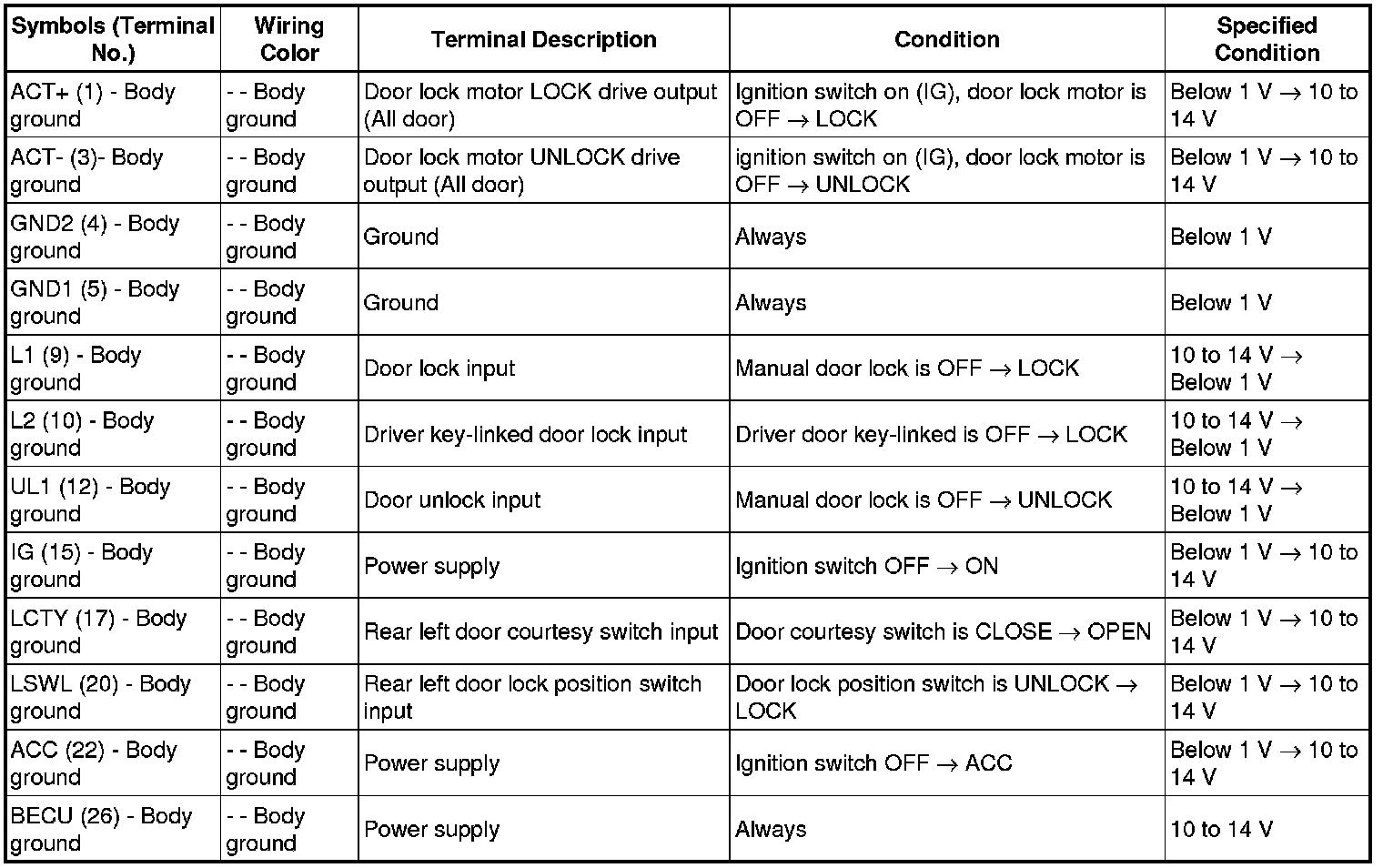

INSTRUMENT PANEL J/B:
