Power Door Lock Control System
Power Door Lock Control System

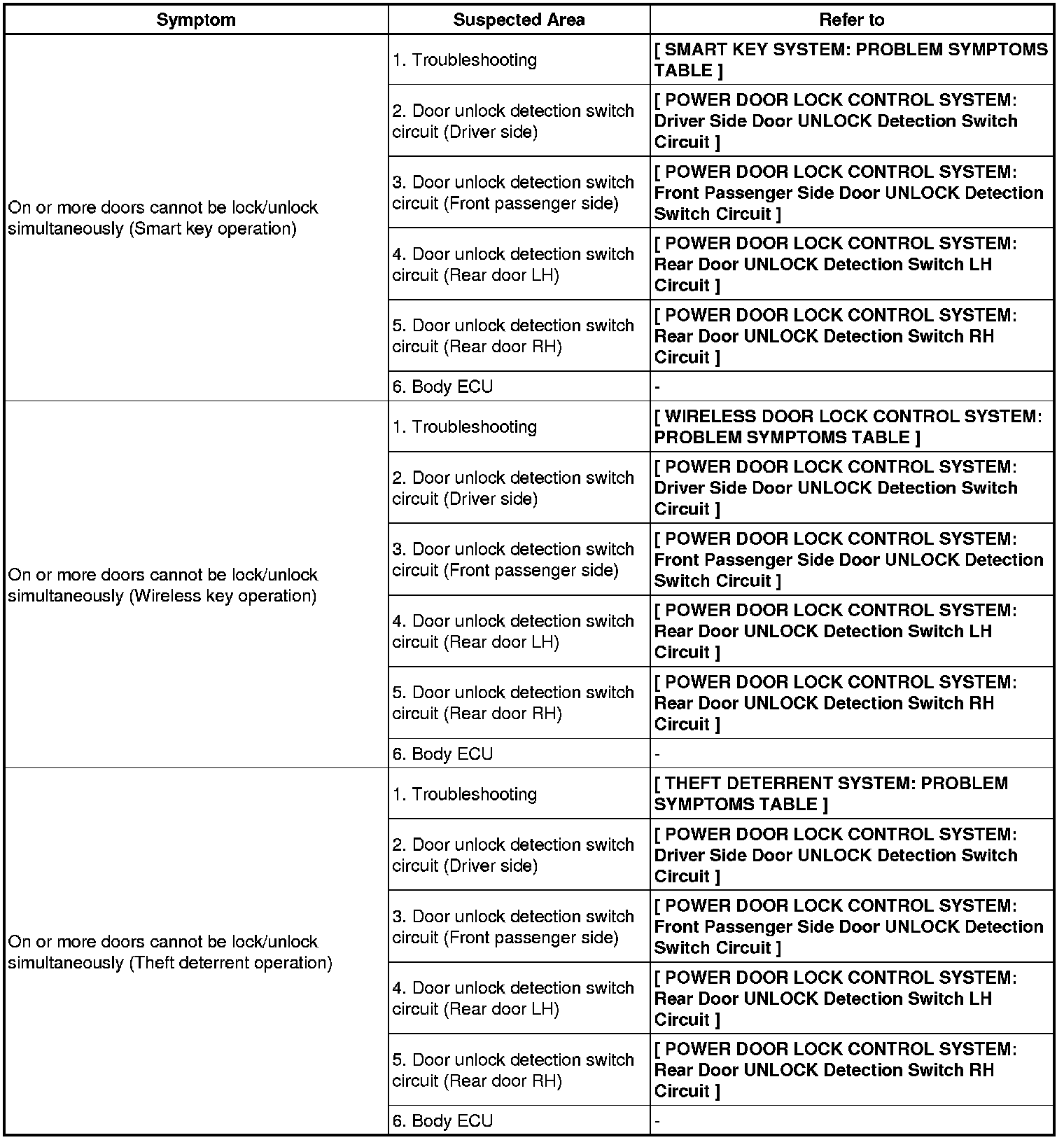

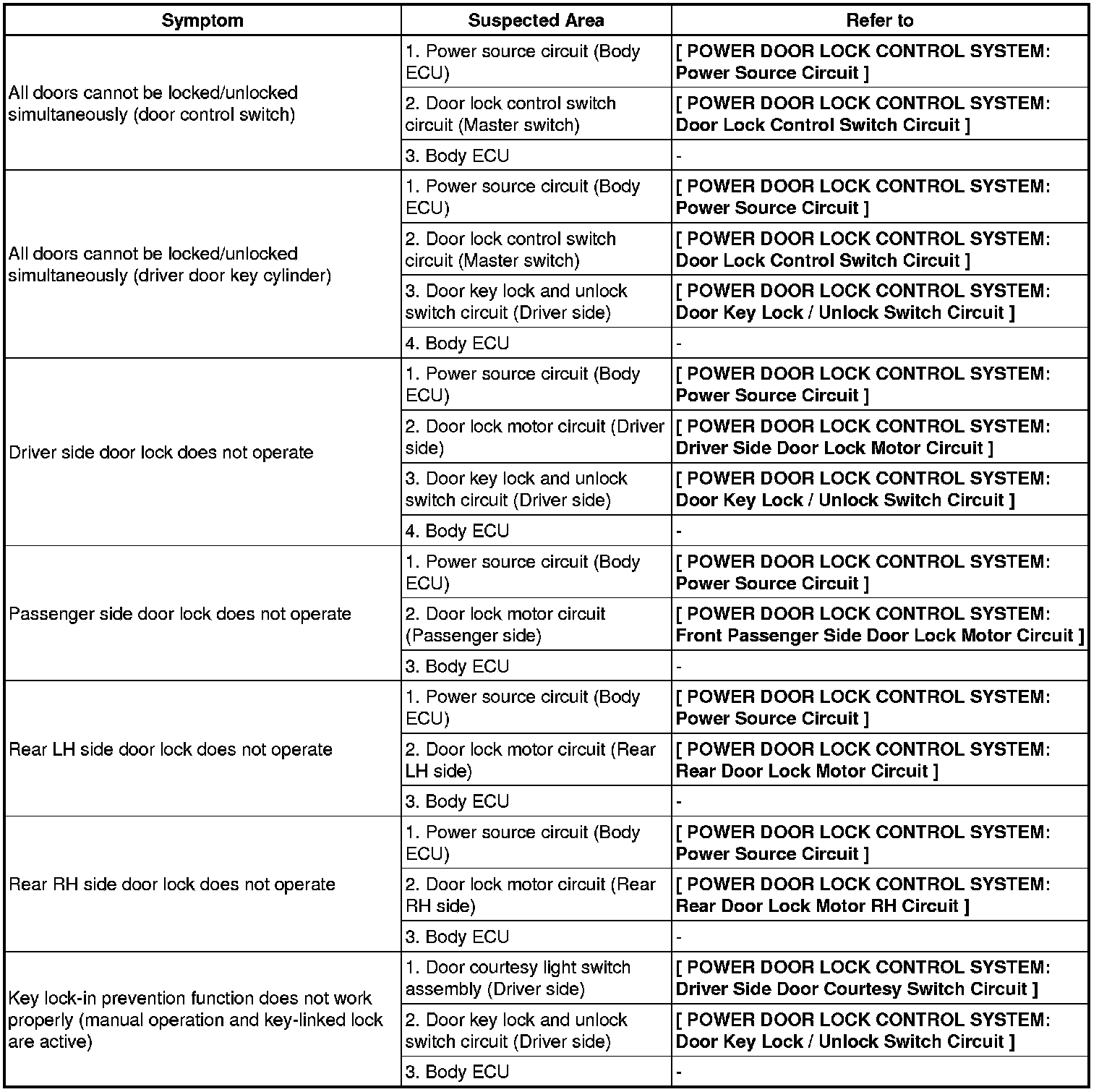

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE
PROBLEM SYMPTOMS TABLE
POWER DOOR LOCK CONTROL SYSTEM
