Power Mirror Control System (w/ Memory)

MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): SYSTEM DIAGRAM

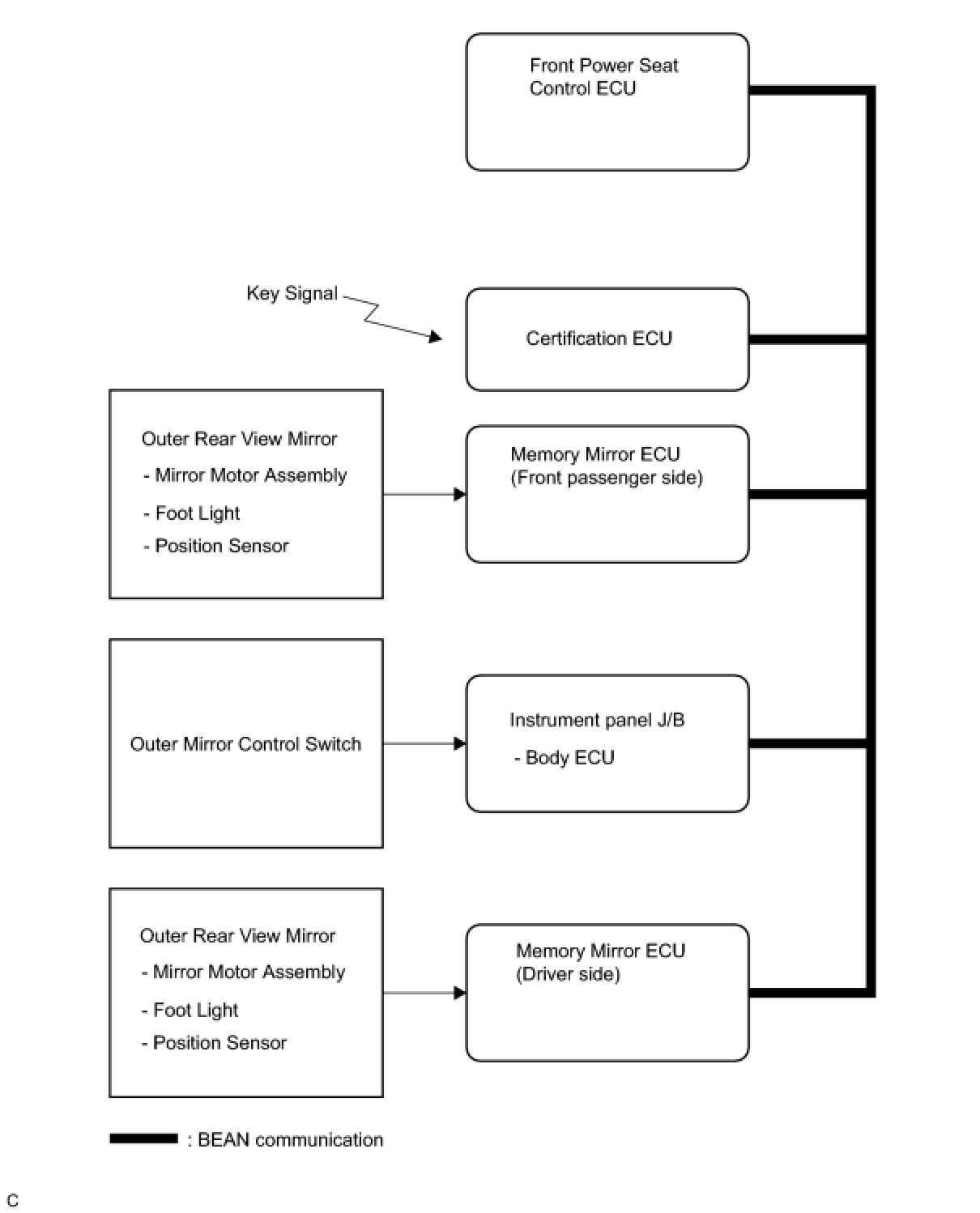

SYSTEM DIAGRAM

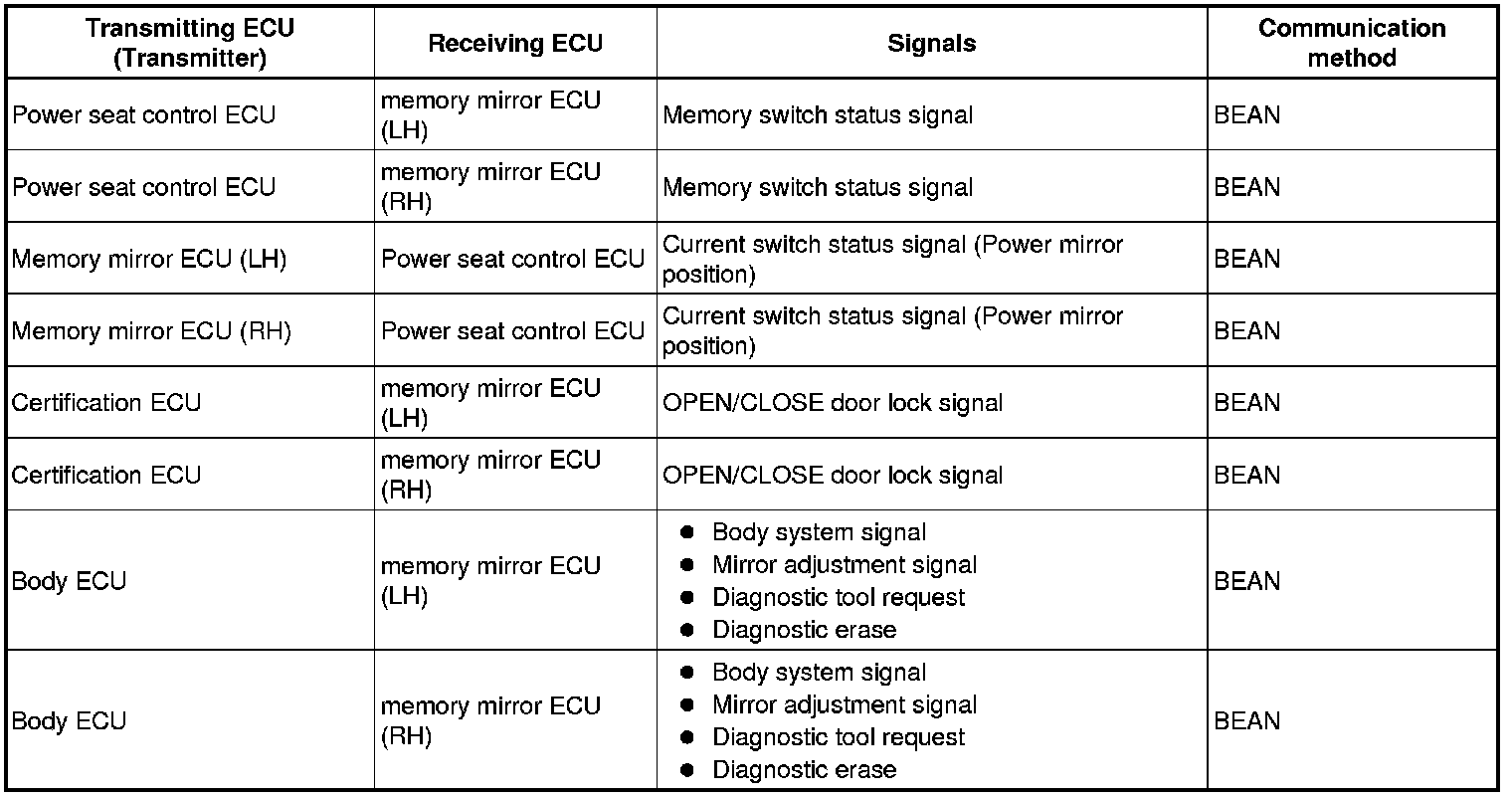

SIGNAL COMMUNICATION TABLE:





MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. POWER MIRROR CONTROL SYSTEM DESCRIPTION
This system has these functions: automatic glare- resistant electrochromic (EC) mirror, electrical remote control type mirror, memory function, foot light function, and rear window defogger-linked mirror defogger.

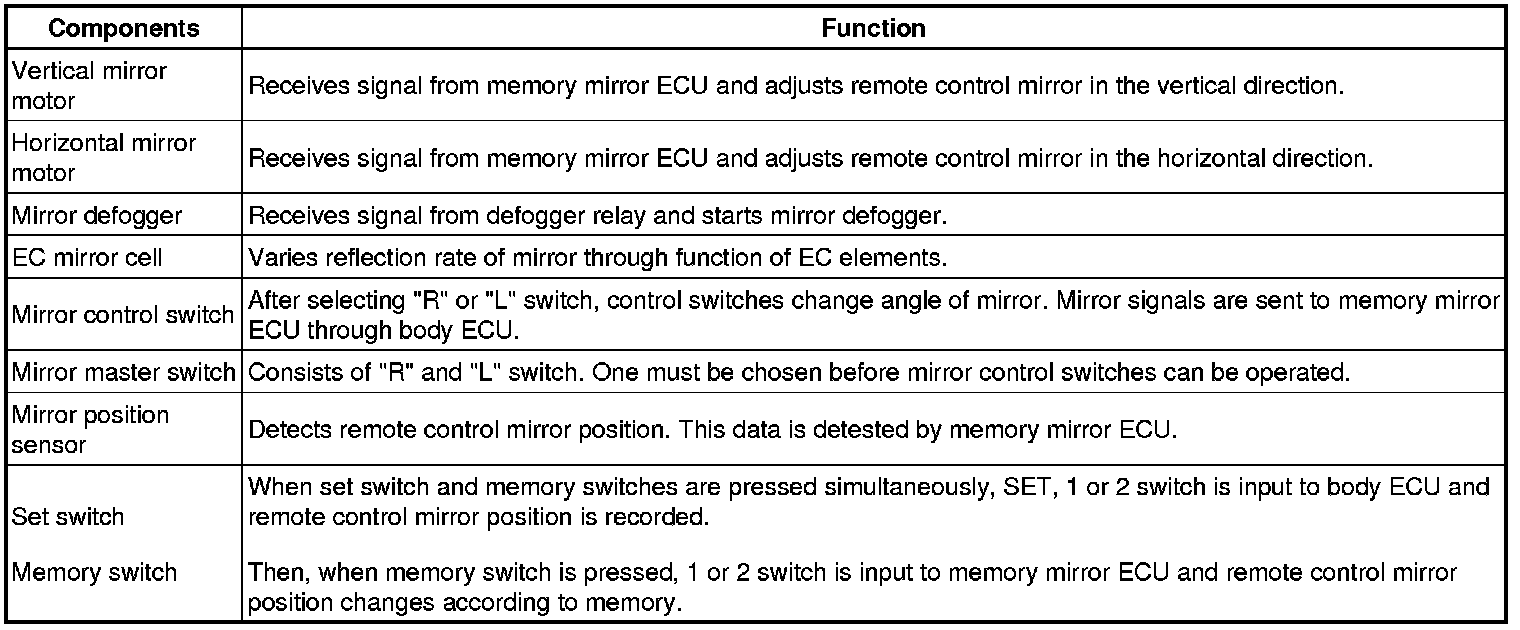

2. FUNCTION OF MAIN COMPONENT

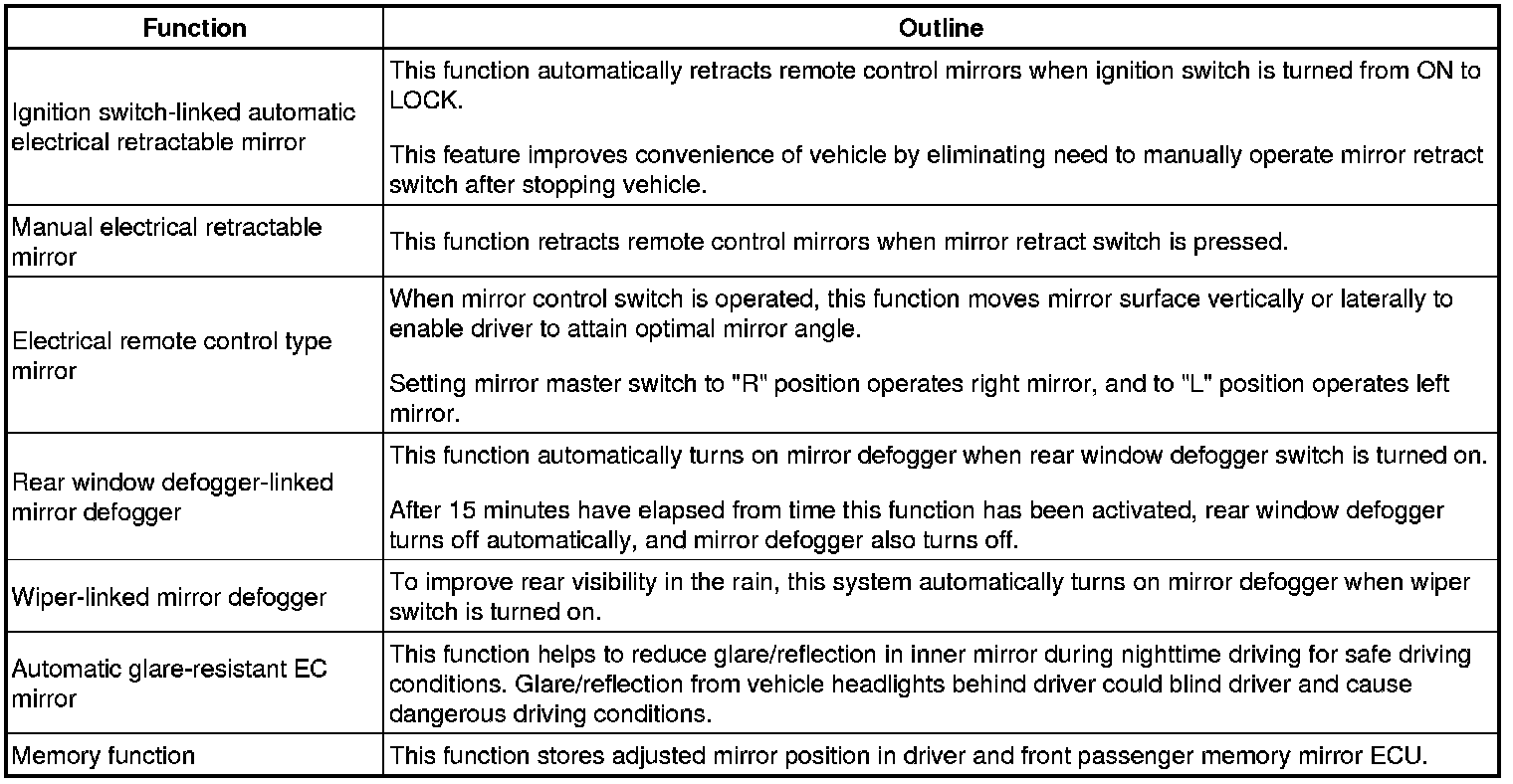

3. SYSTEM OPERATION
The remote control mirror has following features:
