Power Mirror Control System (w/o Memory)
Power Mirror Control System (w/o Memory)

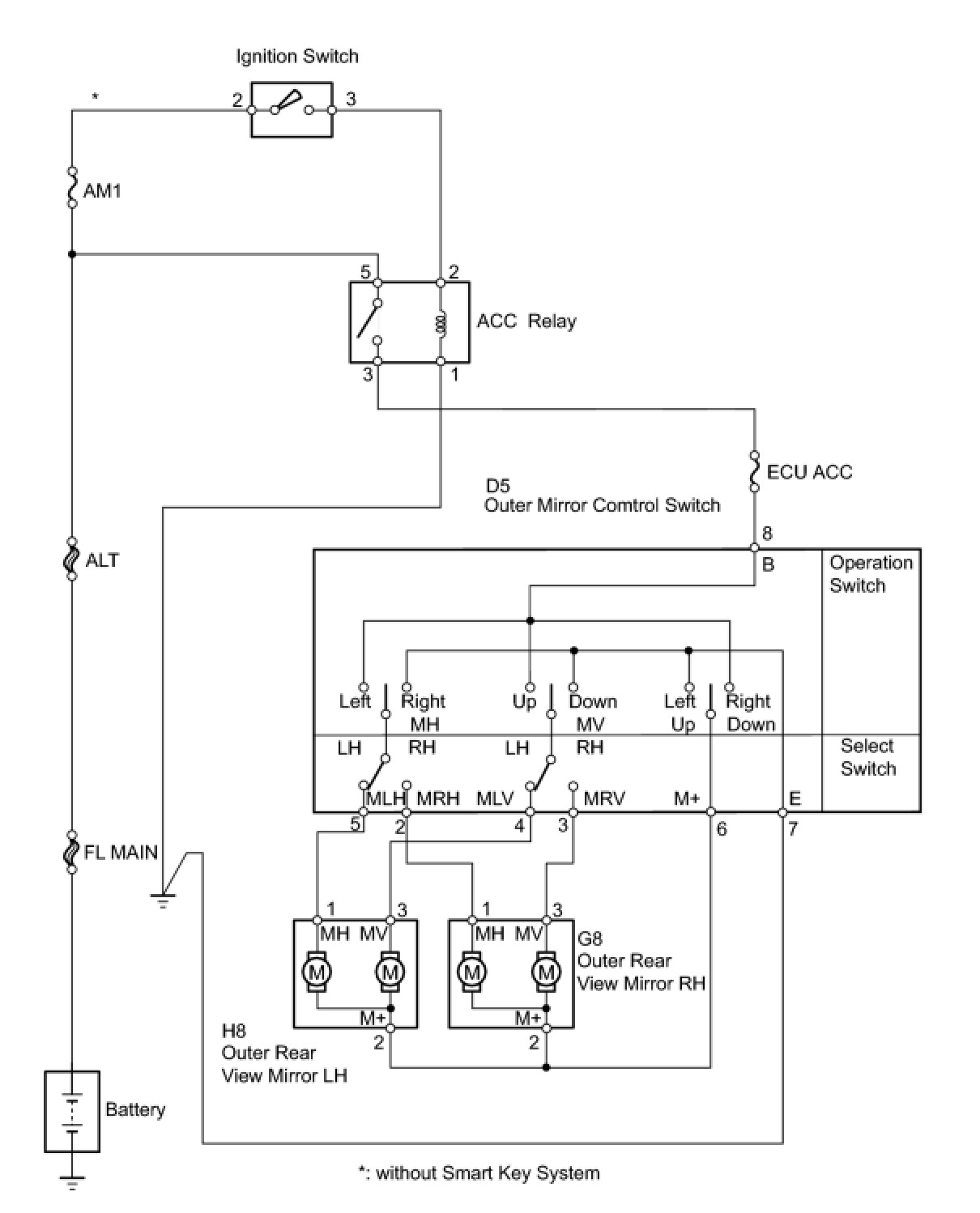

MIRROR: POWER MIRROR CONTROL SYSTEM (w/o Memory): SYSTEM DIAGRAM
SYSTEM DIAGRAM
