Removal

MIRROR: OUTER REAR VIEW MIRROR: REMOVAL

REMOVAL

HINT:
- Use the procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
2. REMOVE OUTER REAR VIEW MIRROR LH

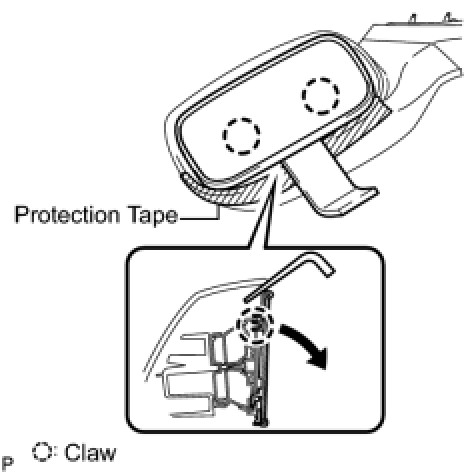

(a) Tape the lower part of outer mirror body with protection tape.
(b) Using a roof-moulding remover, disengage the 2 claws at the upper part of the mirror.
(c) Pull out the outer rear view mirror.
