Outer Rear View Mirror

MIRROR: OUTER REAR VIEW MIRROR: INSPECTION

INSPECTION

1. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH





(a) Inspect outer mirror operation.
(1) Disconnect the H8 connector.

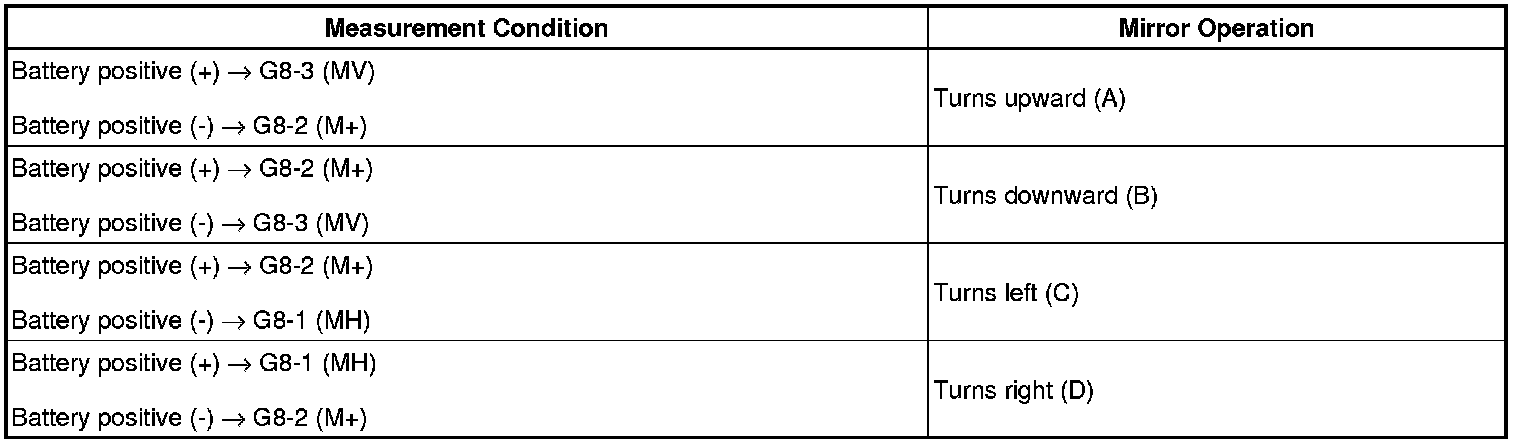

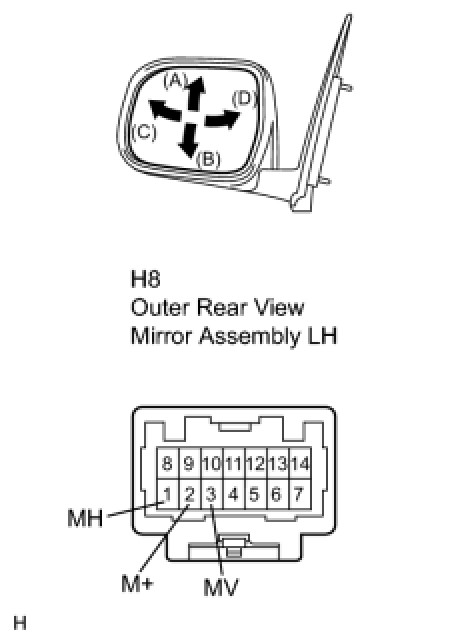

(2) Apply battery voltage and check operation of the mirror face.
Standard:





(b) Inspect outer mirror heater operation.

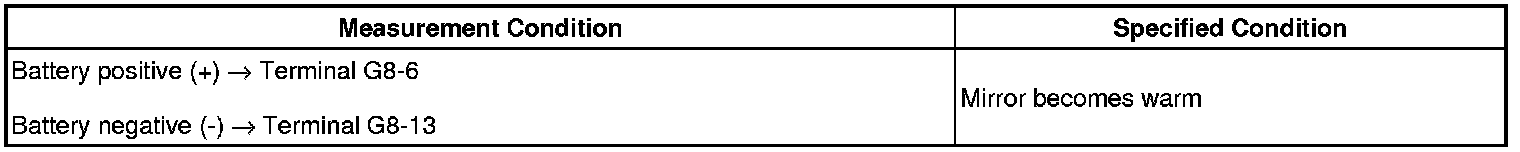

(1) Apply battery voltage and check operation of the mirror heater.

HINT: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
If the result is not as specified, replace the mirror assembly

OK:





(c) Inspect electrochromic outer mirror operation.

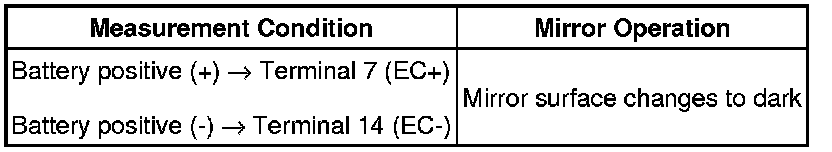

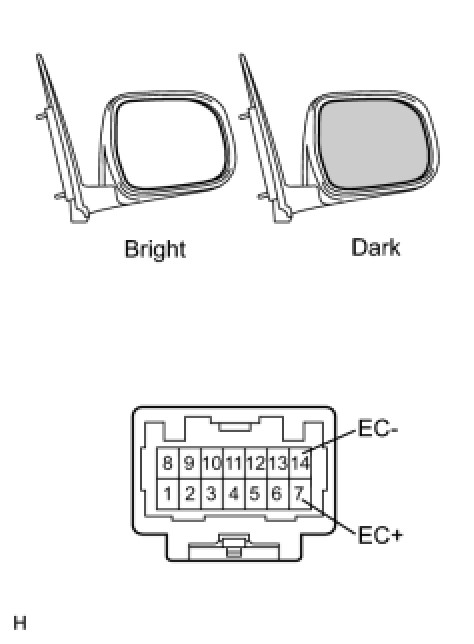

(1) Apply battery voltage and check operation of the mirror, as shown in the table and illustration.
Standard:





If the result is not as specified, replace the mirror assembly.
2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
(a) Inspect outer mirror operation.





(1) Disconnect the G8 mirror connector.

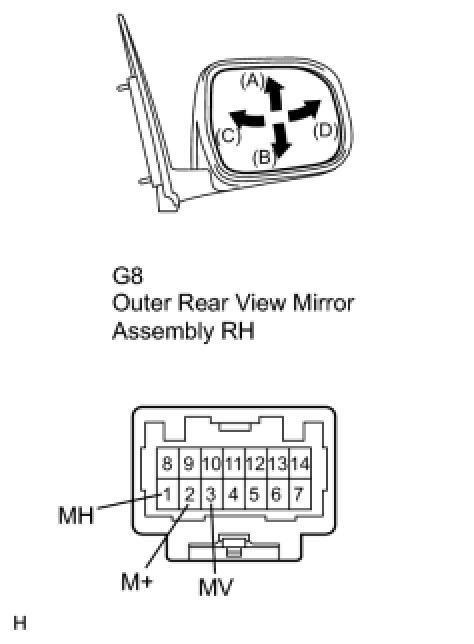

(2) Apply battery voltage and check operation of the mirror face.
Standard:





(b) Inspect outer mirror heater operation.
(1) Apply battery voltage and check operation of the mirror heater.

HINT: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:





If the result is not as specified, replace the mirror assembly.
(c) Inspect electrochromic outer mirror operation.

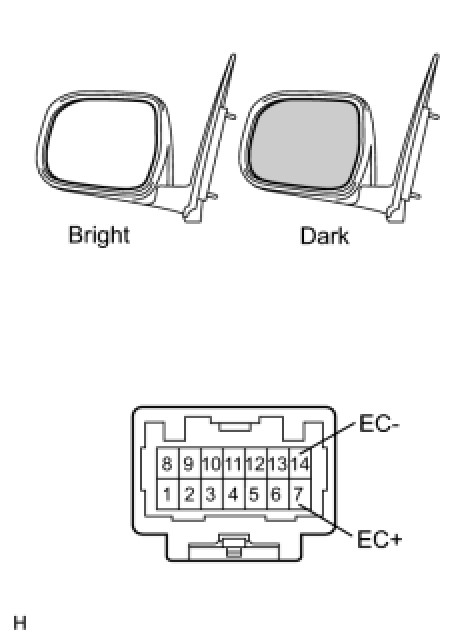

(1) Apply battery voltage and check operation of the mirror, as shown in the table and illustration.
Standard:





If the result is not as specified, replace the mirror assembly.
