MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): Position Sensor Circuit

Position Sensor Circuit

DESCRIPTION

When SET and 1 or 2 are pressed, the position sensor detects the mirror position and sends the signal to the memory mirror ECU. Then when position 1 or 2 is pressed, the memory mirror ECU drives the mirror motor based on the memorized sensor positions.

HINT: The power mirror control system is part of the multiplex communication system. This system features shared communication wiring that reduces the wiring complexity of the communication lines. The first step in any repair is to confirm the proper operation of the communication system. Proceed with troubleshooting after the communication has been verified (See Multiplex Communication System).

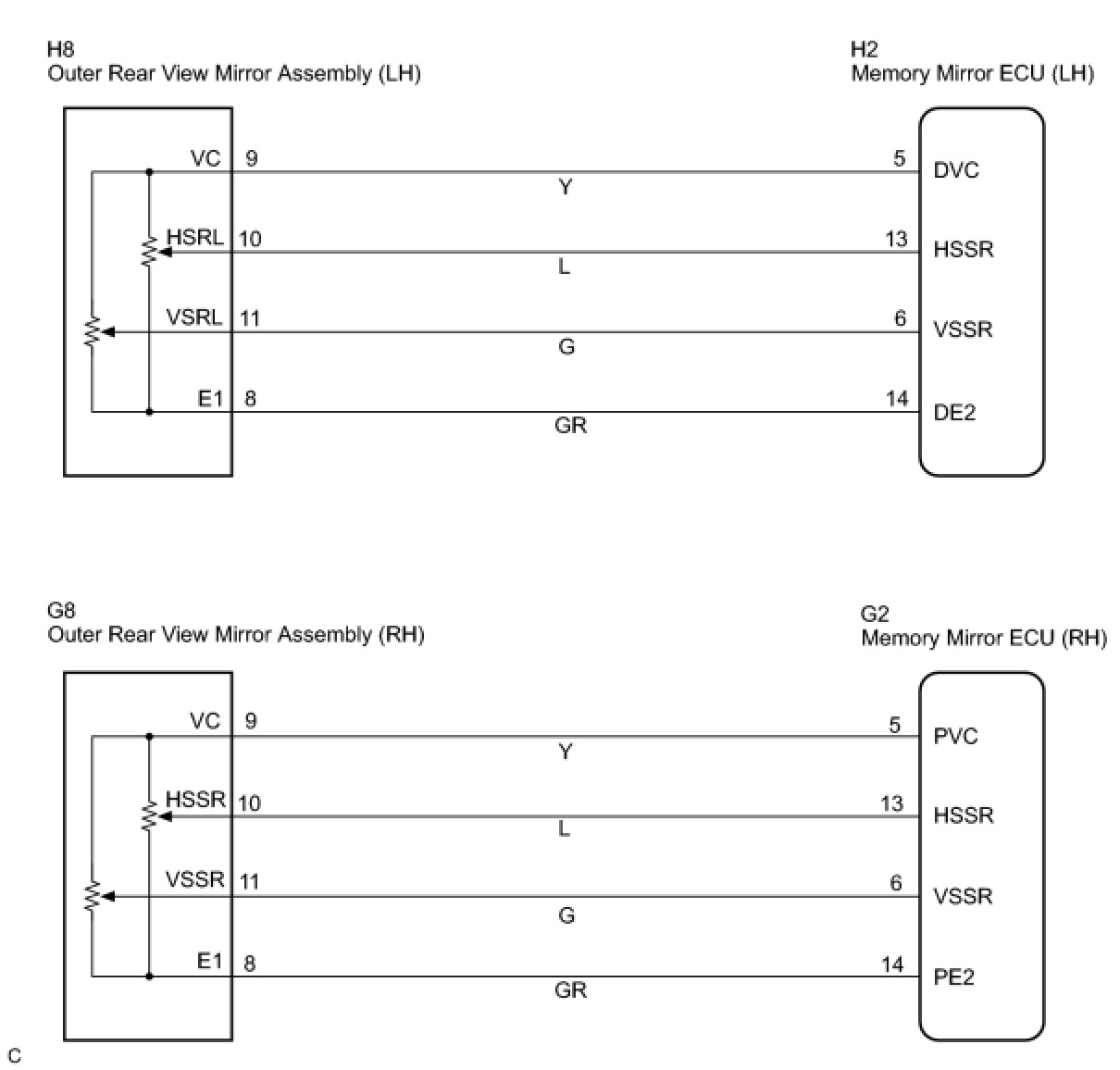

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM

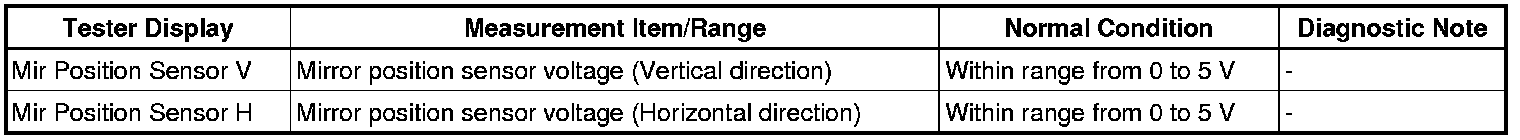

(a) Check the DATA LIST for proper functioning of the seat memory switch.

Mirror:





OK:
0 to 5 V is displayed

NG -- CHECK WIRE HARNESS (OUTER REAR VIEW MIRROR ASSEMBLY - MEMORY MIRROR ECU)
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
2. CHECK WIRE HARNESS (OUTER REAR VIEW MIRROR ASSEMBLY - MEMORY MIRROR ECU)

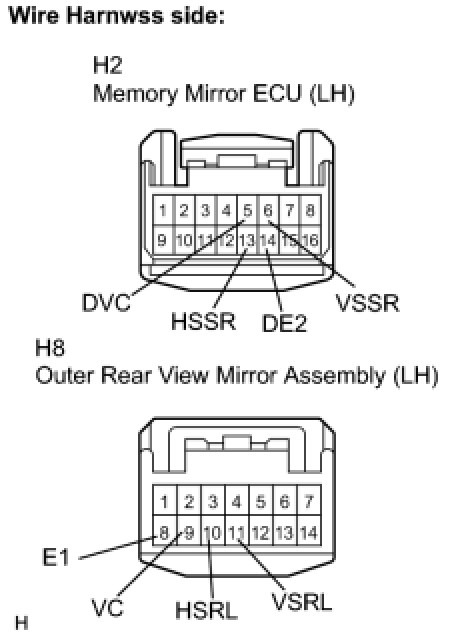

(a) LH:
(1) Disconnect the H2 and H8 connectors.
(2) Check the resistance of the wire harness side connectors.

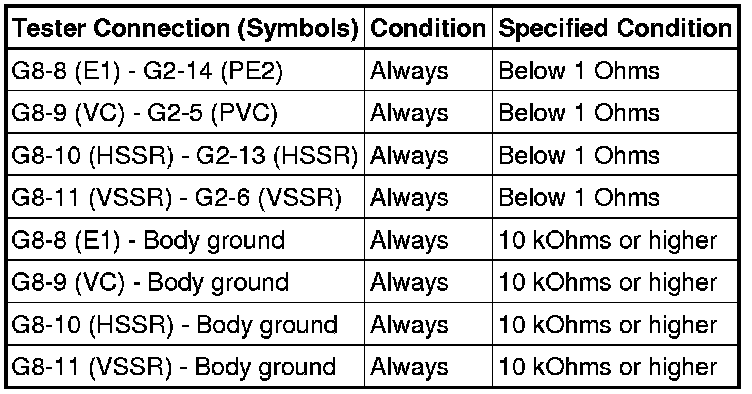

Resistance:









(b) RH:
(1) Disconnect the G2 and G8 connectors.
(2) Check the resistance of the wire harness side connectors.
Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
