Pinout Values and Diagnostic Parameters

MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): TERMINALS OF ECU

TERMINALS OF ECU

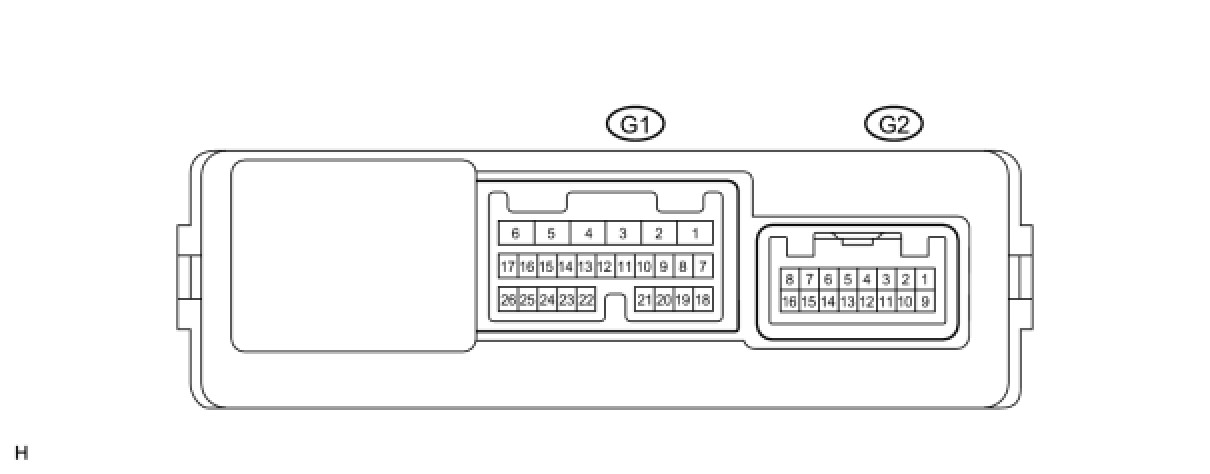

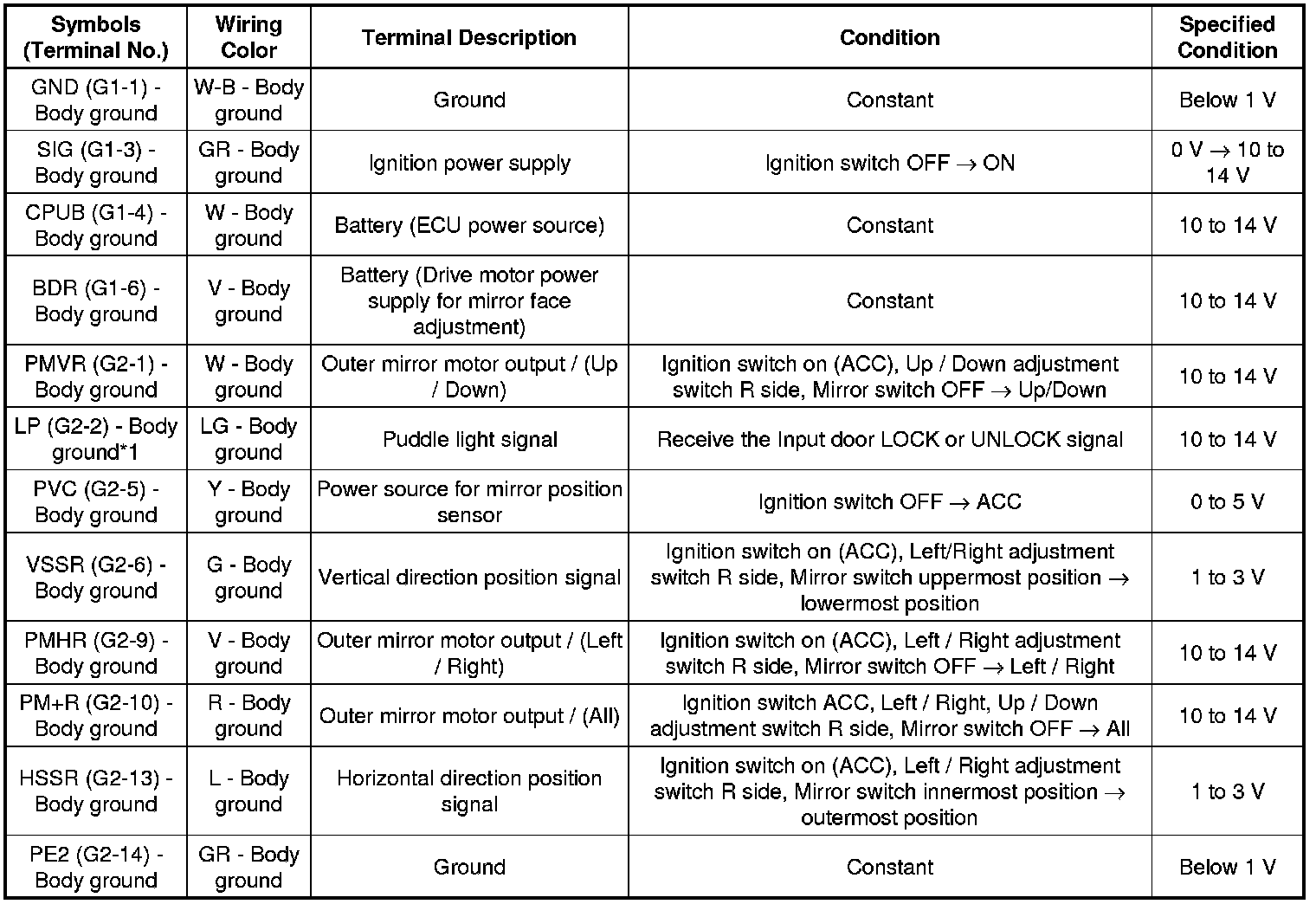

1. MEMORY MIRROR ECU (LH)









HINT: *1: w/ Foot Light

If the result is not as specified, replace the mirror assembly or the ECU may be malfunctioning.

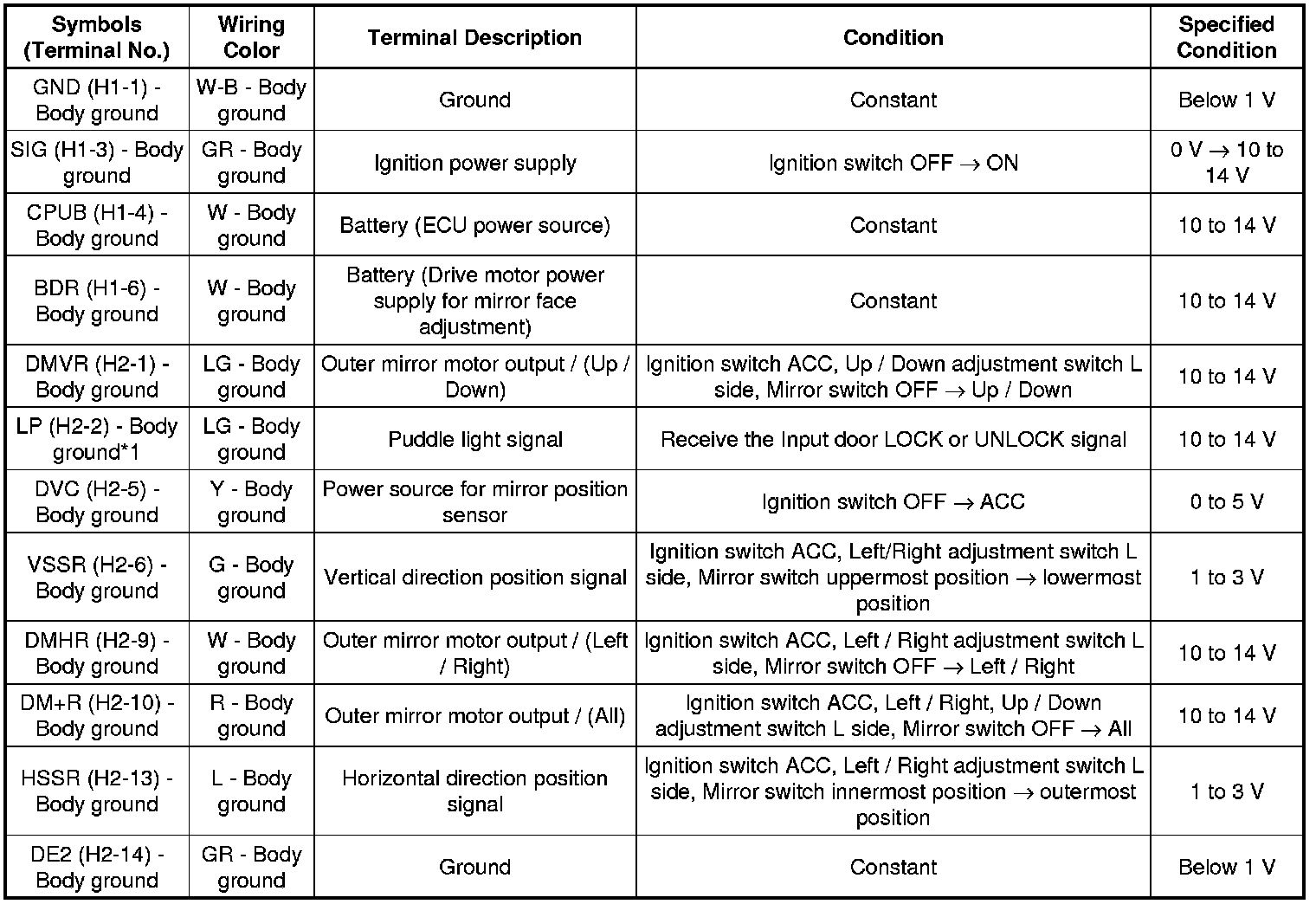

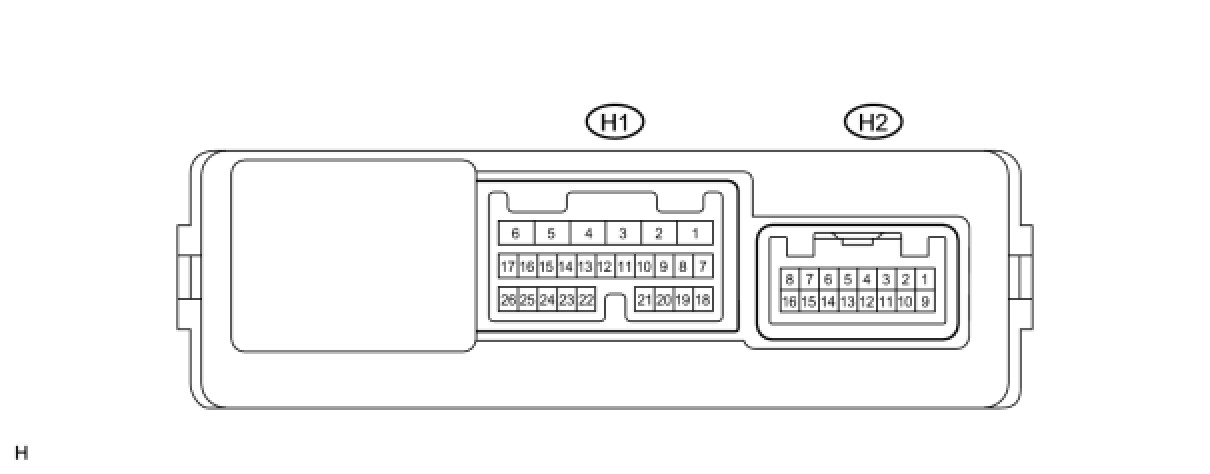

2. MEMORY MIRROR ECU (RH)









HINT: *1: w/ Foot Light

If the result is not as specified, replace the mirror assembly or the ECU may be malfunctioning.
