Installation

SLIDING ROOF: SLIDING ROOF HOUSING: INSTALLATION

INSTALLATION

1. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

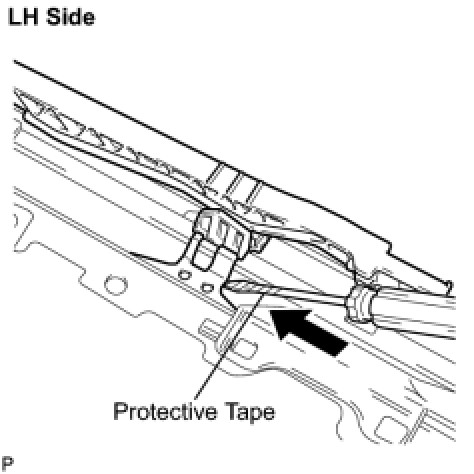

(a) Slide the sliding roof drive cable sub-assembly frontward and install it.

HINT:
- Tape the screwdriver tip before use.
- Use the same procedures for the RH side.

2. ADJUST FULLY CLOSED POSITION

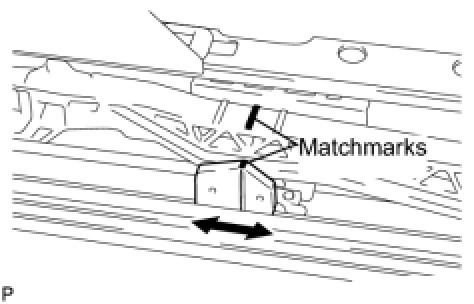

(a) Using a screwdriver, slide the sliding roof drive cable sub-assembly to align the matchmarks.

HINT: Tape the screwdriver tip before use.

3. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY





(a) Install the sliding roof drive gear sub-assembly with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 49 in-lbf)
(b) Engage the 2 claws to install the sliding roof map light bracket.
4. INSTALL SLIDING ROOF HOUSING SUB-ASSEMBLY
(a) Install the sliding roof housing sub-assembly with the 8 nuts and 4 bolts.
Bolt - Torque: 5.4 Nm (55 kgf-cm, 49 in-lbf)
Nut - Torque:.5.4 Nm (55 kgf-cm, 49 in-lbf)
(b) Install the 4 drain hoses to the housing.





5. ADJUST SLIDING ROOF GLASS SUB-ASSEMBLY

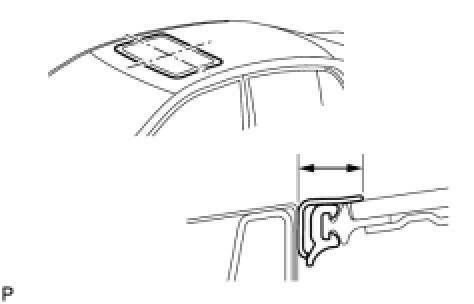

(a) Check for clearance between the roof glass and roof panel. Using a torx wrench (T25), loosen the 4 torx screws and adjust the sliding roof panel position.
Difference:
0 +- 1.4 mm (0 +- 0.055 in.)

NOTE: The difference should be even all around.

6. INSTALL SLIDING ROOF GLASS SUB-ASSEMBLY
(a) Using a torx wrench (T25), tighten 4 torx screws.
Torque: 4.5 Nm (46 kgf-cm, 40 in-lbf)
7. CHECK FOR WATER LEAK
(a) No water should leak after adjusting the sliding roof.
(b) If a leak is found, readjust the sliding roof.
8. INITIALIZATION OF SLIDING ROOF MOTOR
(a) Initialization of sliding roof motor Programming and Relearning.
