Body - Sliding Roof Initialization Procedure

T-SB-0156-08

August 5, 2008

Initialization of Sliding Roof During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

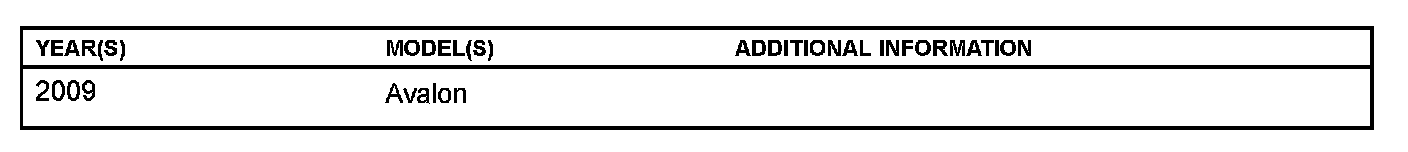

Applicability

Introduction

As a result of the removal of the Short Pin, the "automatic open and close" and "jam protection" functions of the sliding roof will be inoperative due to loss of the sliding roof position memory stored in the microcomputer.

Initialize the sliding roof after installing the Short Pin in its original location during Pre-Delivery Service (PDS).

NOTE
Any time the battery terminal has been disconnected, the sliding roof MUST be re-initialized.

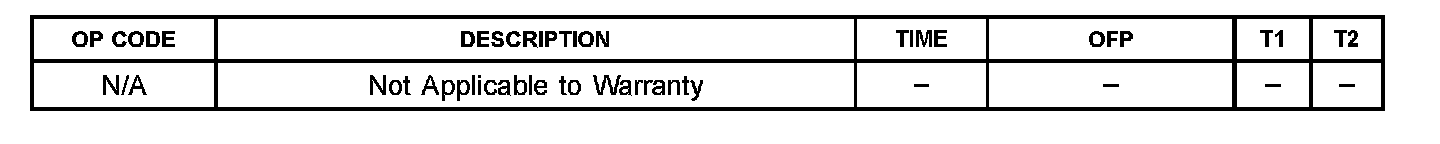

Warranty Information

Initialization Procedure

1. Turn the ignition switch to the "IG-ON" position.

NOTE
Make sure the sliding roof is closed.

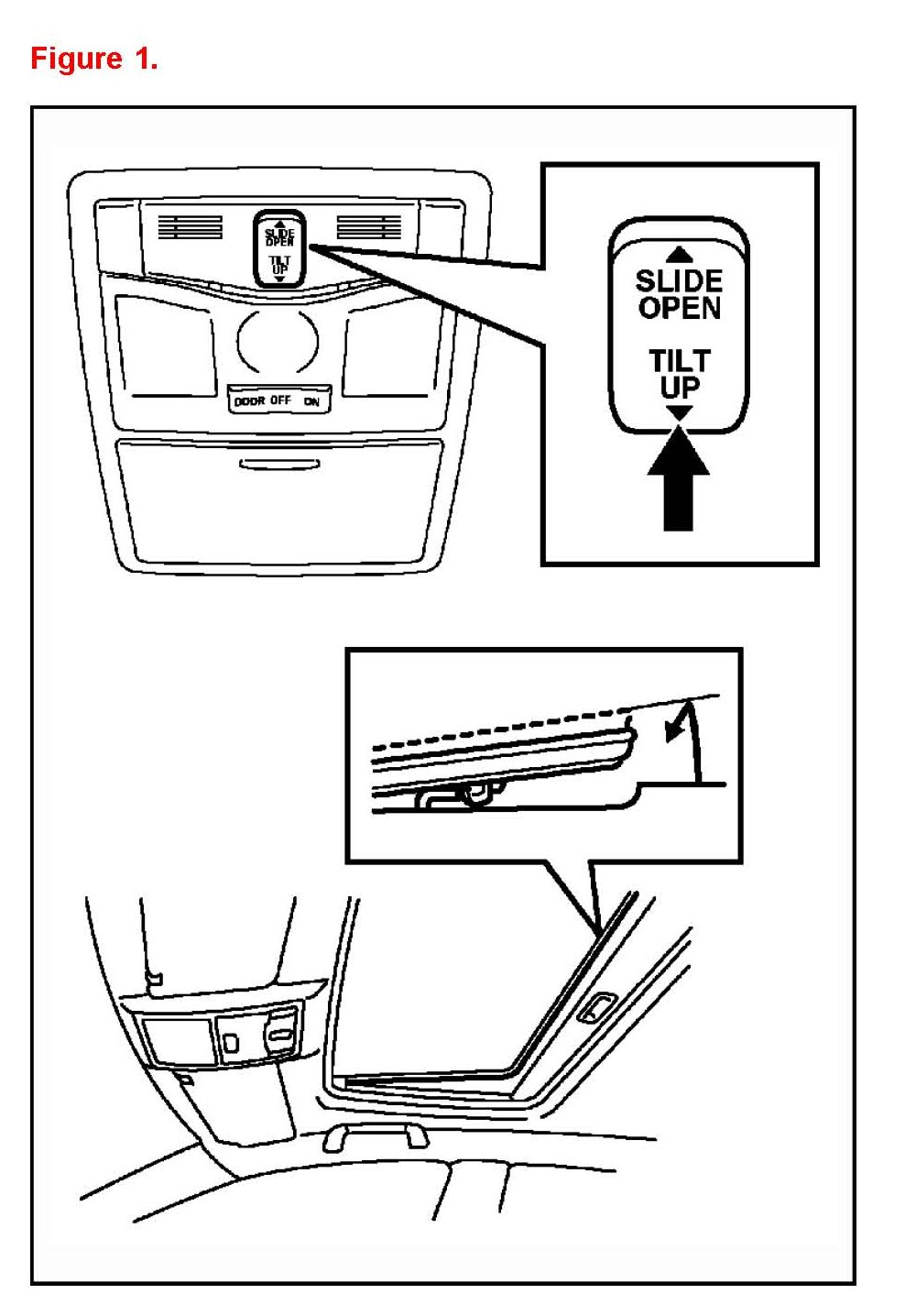

2. Push and hold the "TILT UP" side of the switch until the sliding roof tilts all the way up and then tilts down slightly.

3. Check for proper operation of the "One-touch slide open and close" and "One-touch tilt up and down" functions by pushing the switch briefly to the "slide open" and "tilt open" positions.

NOTE
Jam protection function becomes effective through the above initialization procedure.
