Power Seat Motor: Testing and Inspection

SEAT: LUMBAR SUPPORT ADJUSTER ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY

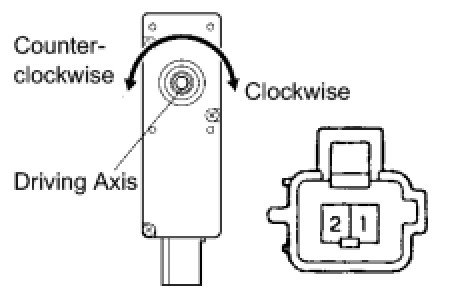

(a) Check lumbar support motor operation.
(1) Check that the motor rotates smoothly in the direction indicated when the battery is connected to the lumbar support motor connector terminals.

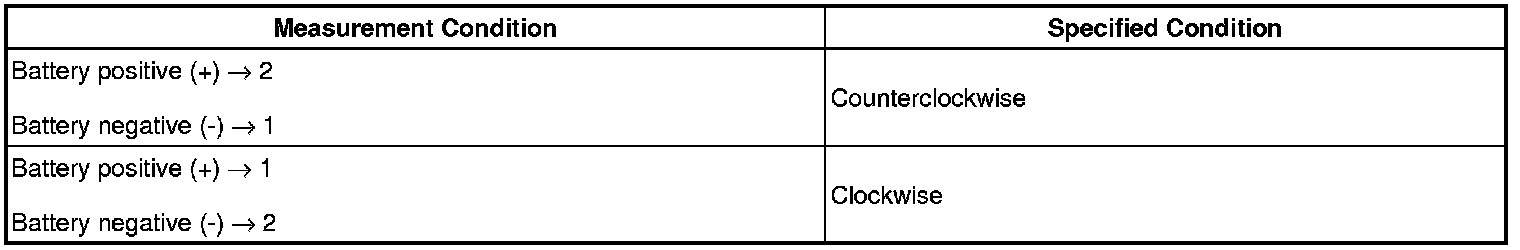

OK:





If the result is not as specified, replace the lumbar support adjuster assembly LH.
