Symptom Related Diagnostic Procedures

SEAT: SEAT HEATER SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

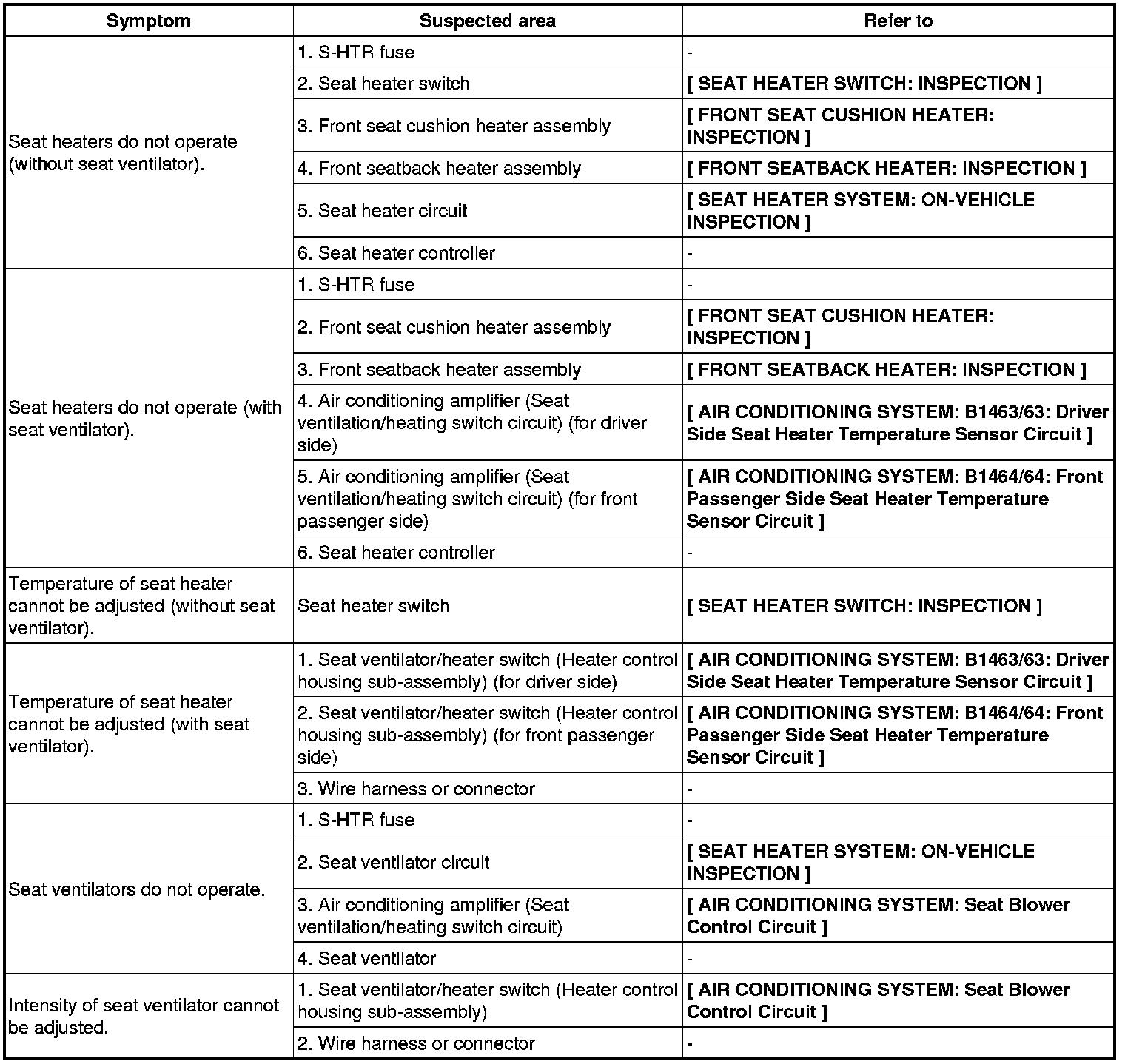

HINT: Use the table below, with suspected areas listed in numerical order, to determine the cause of the problem. Inspect and repair or replace parts as necessary according to the steps.

SEAT VENTILATION/HEATING SYSTEM
