Front Power Seat Control System (w/ Memory)

SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/ Memory): PROBLEM SYMPTOMS TABLE

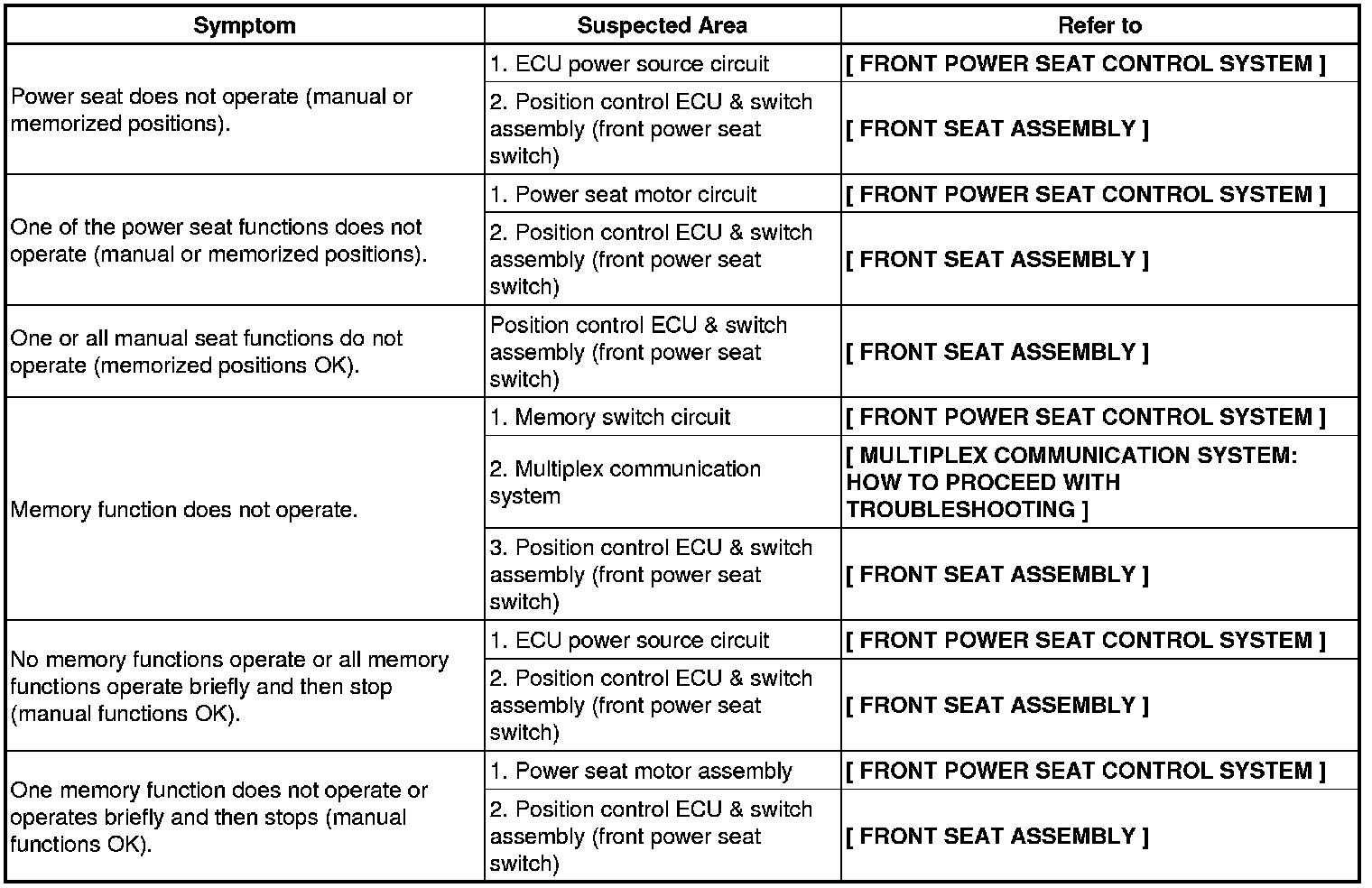

PROBLEM SYMPTOMS TABLE

HINT:
Inspect the fuse and relay before confirming the suspected areas in the table below.
Inspect each suspected area in numerical order for the corresponding symptom.
If the malfunction still exists after checking and confirming that all circuits and components are normal, replace the ECU.

FRONT POWER SEAT CONTROL SYSTEM (W/ MEMORY)
