Front Power Seat Control System (w/o Memory)

SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/o Memory): PROBLEM SYMPTOMS TABLE

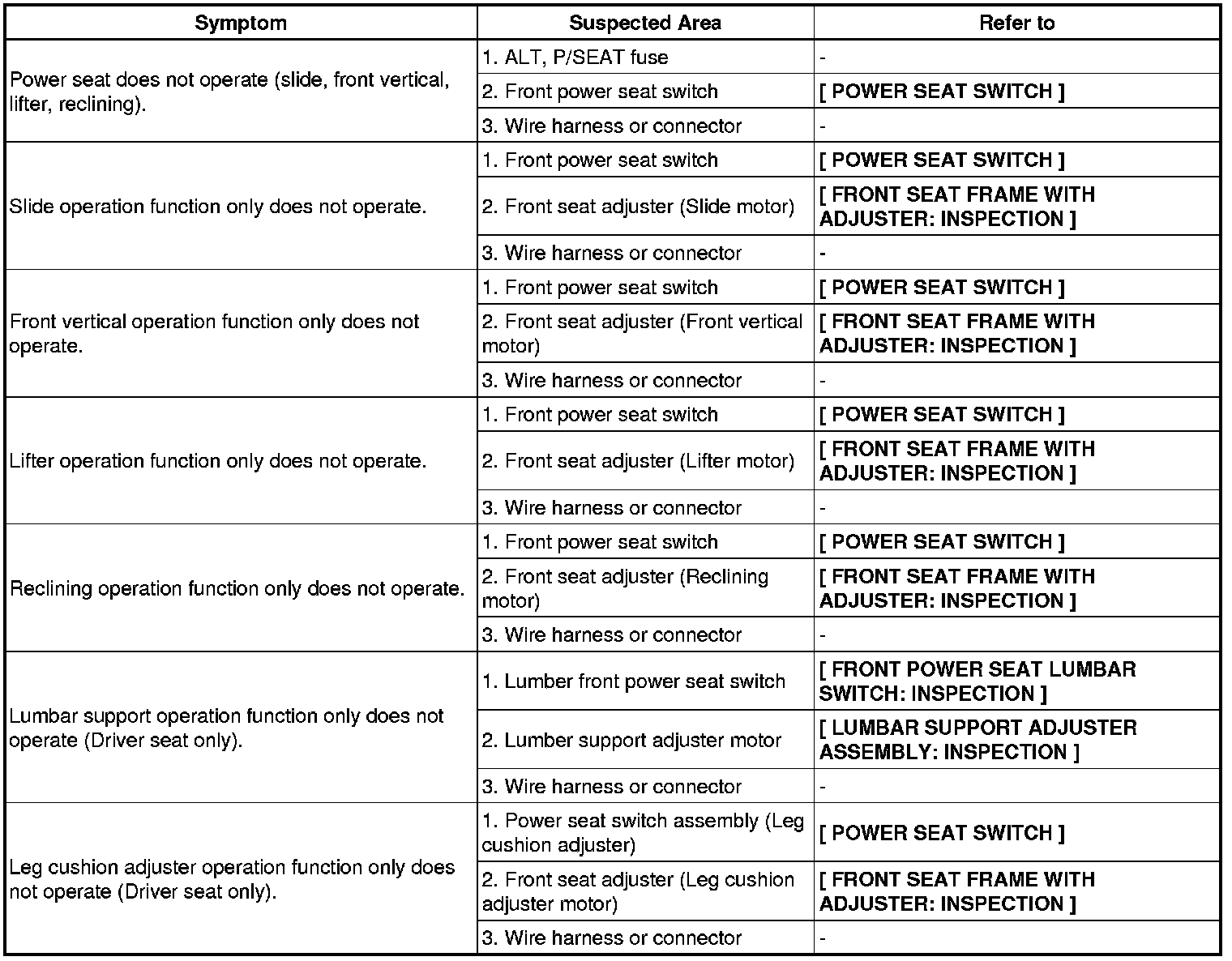

PROBLEM SYMPTOMS TABLE

HINT: Use the table below, with suspected areas listed in order of possible occurrence, to determine the cause of the problem. Inspect and repair or replace parts as necessary according to the steps.

FRONT POWER SEAT CONTROL SYSTEM (W/O MEMORY)
