Installation

BRAKE CONTROL: STEERING ANGLE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL STEERING ANGLE SENSOR

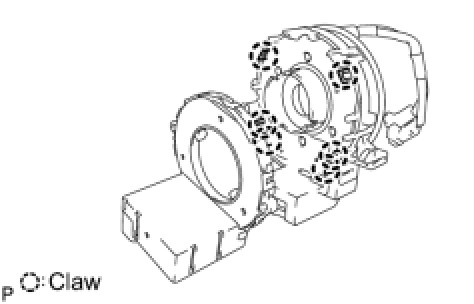

(a) Install the steering angle sensor to the spiral cable.

NOTICE:
- Engage the claws securely.
- Do not damage the claws.

2. INSPECT SPIRAL CABLE Testing and Inspection
3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. INSTALL SPIRAL CABLE Installation
5. CENTER SPIRAL CABLE Installation
6. INSTALL STEERING WHEEL ASSEMBLY Installation
7. INSTALL STEERING PAD Installation
8. INSPECT STEERING PAD Installation
9. INSPECT STEERING WHEEL CENTER POINT
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
- Make sure that the cable has been disconnected from the battery terminal for at least 2 seconds before reconnecting the cable.
- Connect the cable to the negative (-) battery terminal with the front wheels facing straight ahead.

11. INSPECT SRS WARNING LIGHT Installation.
