Pinout Values and Diagnostic Parameters

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

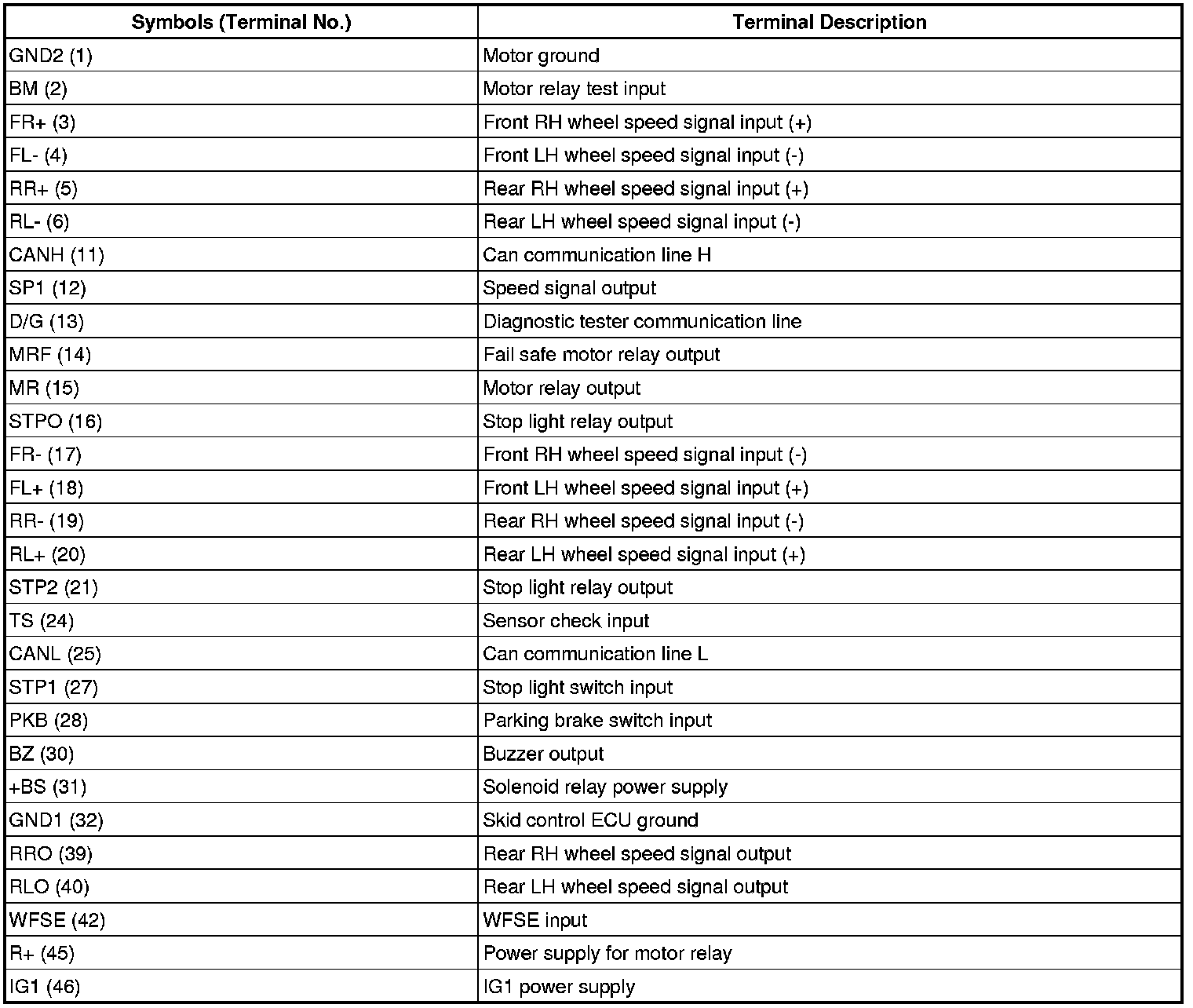

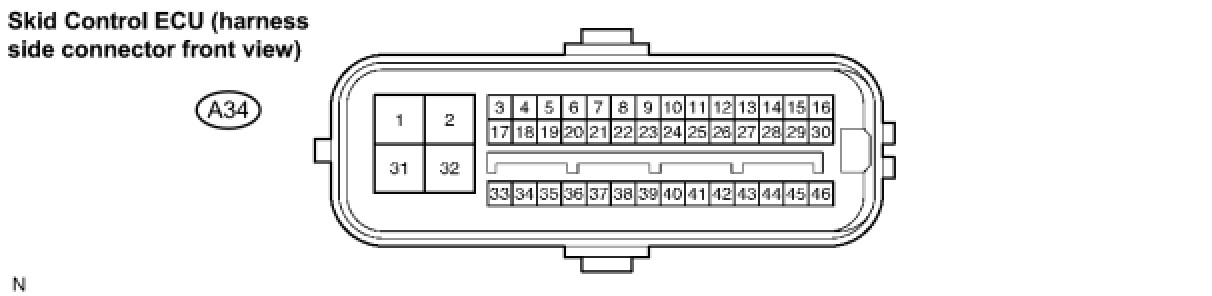

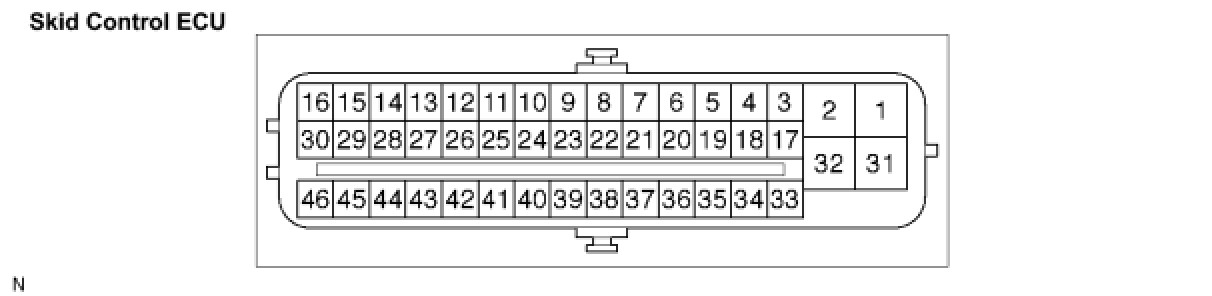

1. Terminals of ECU

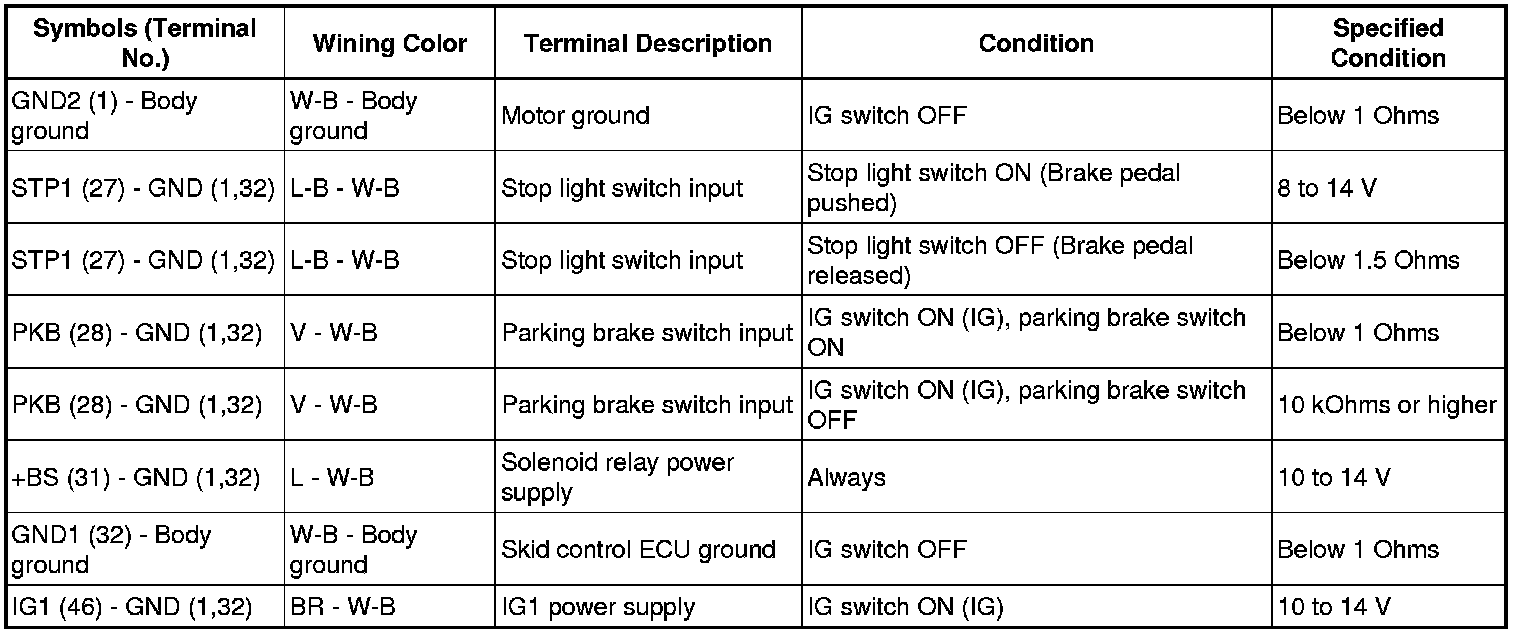

2. Terminal Inspection
(a) Disconnect the connector and measure the voltage on the wire harness side.

HINT: Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.
