Slip Indicator Light Does Not Come ON

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: Slip Indicator Light does not Come ON

Slip Indicator Light does not Come ON

DESCRIPTION

The SLIP indicator blinks during VSC and/or TRAC operation.
When the system fails, the SLIP indicator comes on to warn the driver.
The SLIP indicator comes on when traction control is terminated by pressing the traction control switch.

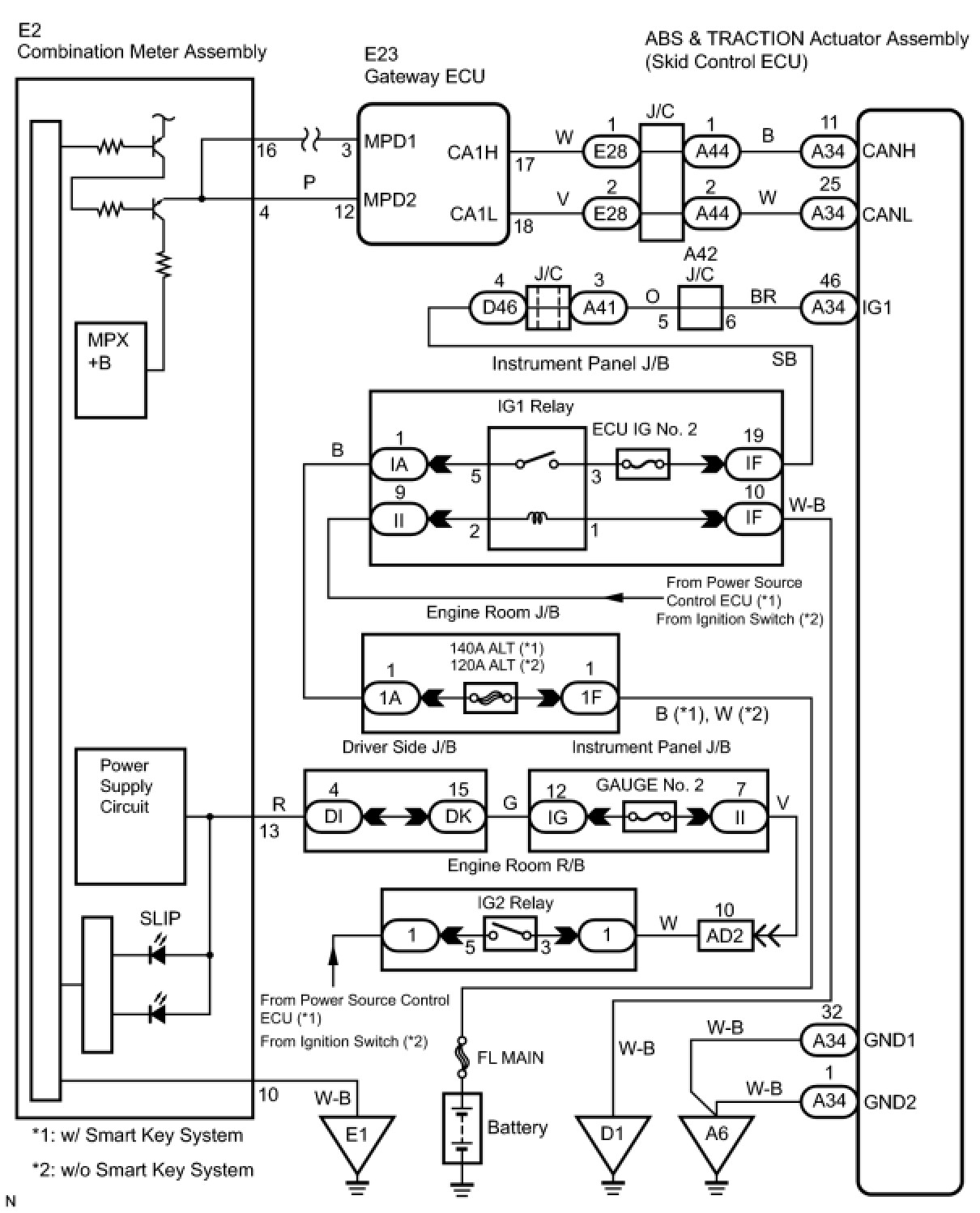

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration Programming and Relearning.

PROCEDURE

1. INSPECT CAN COMMUNICATION SYSTEM
(a) Check if the CAN communication system DTC is output Diagnosis System.
Result:





B -- REPAIR CAN COMMUNICATION SYSTEM
A -- Continue to next step.

2. INSPECT MULTIPLEX COMMUNICATION SYSTEM
(a) Check if the multiplex communication system DTC is output Initial Inspection and Diagnostic Overview.
Result:





B -- REPAIR MULTIPLEX COMMUNICATION SYSTEM
A -- Continue to next step.

3. INSPECT SLIP INDICATOR LIGHT
(a) Connect Techstream to the DLC3.
(b) Start the engine.
(c) Select "ACTIVE TEST" on Techstream.

ACTIVE TEST: ABS / VSC / TRAC





(d) Check that "ON" and "OFF" of the SLIP indicator light are indicated on the combination meter when using Techstream.
OK:
The SLIP indicator light turns on or off in accordance with Techstream.

HINT: If troubleshooting has been carried out according to the PROBLEM SYMPTOMS TABLE, refer back to the table and proceed to the next step before replacing the part Problem Symptoms Table.

NG -- INSPECT COMBINATION METER ASSEMBLY
OK -- REPLACE ABS & TRACTION ACTUATOR ASSEMBLY
4. INSPECT COMBINATION METER ASSEMBLY
(a) Check the combination meter assembly How To Proceed With Troubleshooting.

HINT: If troubleshooting has been carried out according to the PROBLEM SYMPTOMS TABLE, refer back to the table and proceed to the next step Problem Symptoms Table.

NG -- REPLACE COMBINATION METER ASSEMBLY
OK -- END
