BRAKE CONTROL: FRONT SPEED SENSOR: INSTALLATION

INSTALLATION

1. INSTALL FRONT SPEED SENSOR





(a) Install the front speed sensor with the bolt.
Torque: 8.5 Nm (87 kgf-cm, 75 in-lbf)

NOTE: Prevent foreign matter from attaching to the sensor tip.

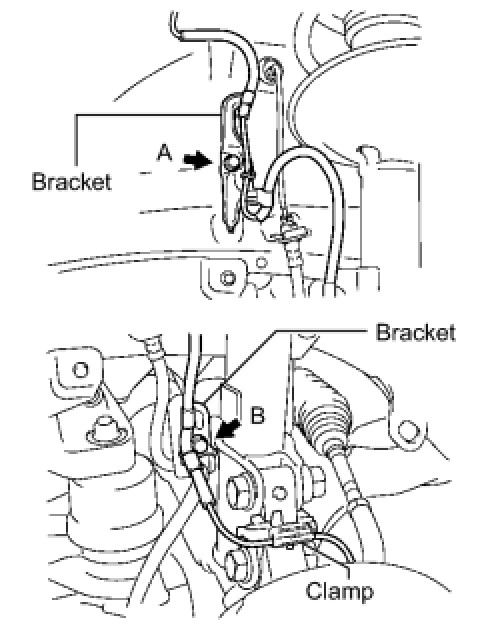

(b) Install the sensor harness brackets with the 2 bolts to the body and shock absorber assembly.
Bolt A - Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
Bolt B - Torque: 19 Nm (192 kgf-cm, 14 ft-lbf)
(c) Connect the clamp to the steering knuckle.

NOTE: Do not twist the wire harness for front speed sensor when installing the speed sensor.





(d) Connect the speed sensor connector and clamp.
2. INSTALL FRONT FENDER LINER LH
3. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
4. CHECK FOR SPEED SENSOR SIGNAL
(a) Check for the speed sensor signal Test Mode Procedure.
