BRAKE CONTROL: REAR SPEED SENSOR: INSTALLATION

INSTALLATION

1. INSTALL REAR SPEED SENSOR





(a) Clean the contact surface of the axle hub and a new skid control sensor.

NOTE: Prevent foreign matter from attaching to the sensor rotor.

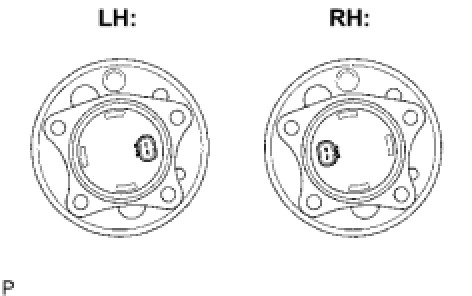

(b) Place the skid control sensor on the axle hub so that the connector is positioned as shown in the illustration.

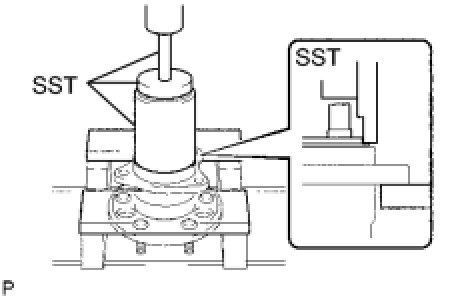

(c) Using SST and a press, install the skid control sensor to the axle hub.
SST: 09830-36010
SST: 09950-60010
09951-00650
SST: 09950-70010
09951-07100

NOTE:
- Do not tap the skid control sensor with a hammer directly.
- Check that there should be no foreign matter on the skid control sensor detection portion.
- Press the skid control sensor in the axle hub straight and slowly.

2. INSTALL REAR AXLE HUB & BEARING ASSEMBLY LH





(a) Install the rear axle hub & bearing assembly with the 4 bolts.
Torque: 80 Nm (816 kgf-cm, 59 ft-lbf)
3. INSTALL REAR DISC
4. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH Installation
5. CONNECT SKID CONTROL SENSOR WIRE





(a) Connect the connector to the skid control sensor.
6. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
7. INSPECT REAR WHEEL ALIGNMENT
8. CHECK FOR SPEED SENSOR SIGNAL
(a) Check for speed sensor signal Test Mode Procedure.
