Disassembly

BRAKE: BRAKE PEDAL: DISASSEMBLY

DISASSEMBLY

1. REMOVE STOP LIGHT SWITCH ASSEMBLY

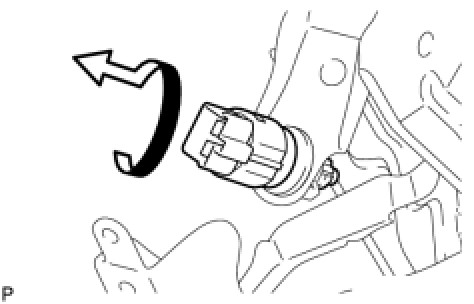

(a) Turn the stop light switch assembly counterclockwise and remove the stop light switch assembly.
(b) Remove the stop light switch mounting adjuster.
2. REMOVE BRAKE PEDAL SUB-ASSEMBLY

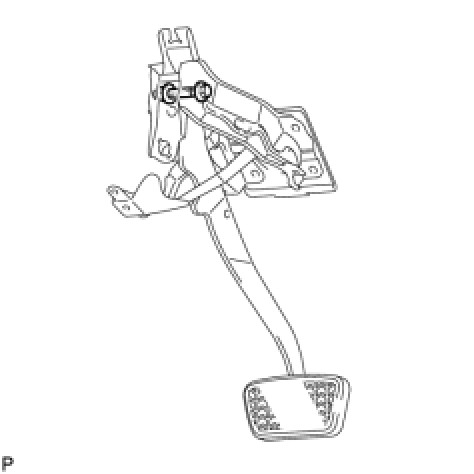

(a) Remove the nut, bolt, washer and brake pedal sub-assembly from the brake pedal support sub-assembly.
(b) Remove the 2 brake pedal bushes and collar from the brake pedal sub-assembly.
3. REMOVE BRAKE PEDAL PAD
