Reassembly

BRAKE: BRAKE PEDAL: REASSEMBLY

REASSEMBLY

1. INSTALL BRAKE PEDAL PAD
2. INSTALL BRAKE PEDAL SUB-ASSEMBLY





(a) Install 2 new brake pedal bushes and the collar to the brake pedal sub-assembly.

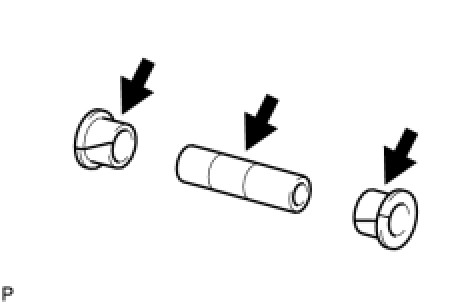

HINT: Apply lithium soap base glycol grease to the parts indicated by arrows.





(b) Install the brake pedal sub-assembly with the bolt, washer and nut.
Torque: 37 Nm (375 kgf-cm, 27 ft-lbf)
3. INSTALL STOP LIGHT SWITCH ASSEMBLY
(a) Install the stop light switch mounting adjuster.
(b) Insert the stop light switch assembly until the body hits the cushion.
(c) Make a quarter turn clockwise to install the stop light switch assembly.
(d) Connect the stop light switch connector.

NOTICE:
- When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in.
- The turning torque for installing the stop light switch assembly

Torque: 1.5 Nm (15 kgf-cm, 13 in-lbf)or less

HINT: After adjusting the brake pedal height, adjust the stop light switch assembly.
