Removal

BRAKE: BRAKE PEDAL: REMOVAL

REMOVAL

NOTE: Release the vacuum from the booster by depressing the brake pedal several times. Then remove the brake master cylinder from the brake booster.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH Removal
3. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH Removal
4. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal
5. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY Removal
6. REMOVE COWL TOP PANEL OUTER Removal
7. DRAIN BRAKE FLUID
8. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE Removal
9. REMOVE AIR CLEANER CASE Removal
10. REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY Removal
11. DISCONNECT VACUUM HOSE Removal
12. REMOVE FRONT DOOR SCUFF PLATE LH Removal
13. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Removal
14. REMOVE INSTRUMENT SIDE PANEL LH Removal
15. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH Removal
16. REMOVE INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO. 1 Removal
17. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 1 Removal
18. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 2 Removal
19. REMOVE INSTRUMENT PANEL FINISH PLATE (w/o Smart Key System) Removal
20. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY Removal
21. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER Removal
22. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal
23. REMOVE COMBINATION METER ASSEMBLY Removal
24. REMOVE BRAKE PEDAL RETURN SPRING Removal
25. REMOVE PUSH ROD PIN Removal
26. REMOVE BRAKE BOOSTER ASSEMBLY Removal
27. REMOVE BRAKE BOOSTER GASKET Removal
28. REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
29. REMOVE BRAKE PEDAL SUPPORT SUB-ASSEMBLY

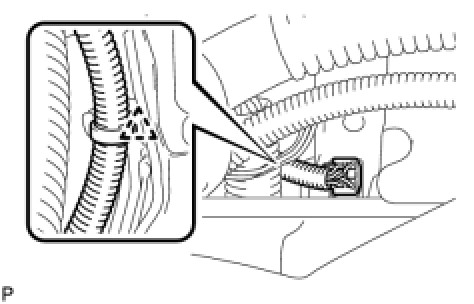

(a) Disconnect the stop light switch connector and wire harness clamp.

(b) Remove the 2 bolts and brake pedal support sub-assembly.
