Disassembly

BRAKE: BRAKE MASTER CYLINDER: DISASSEMBLY

DISASSEMBLY

1. REMOVE BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
2. REMOVE BRAKE MASTER CYLINDER RESERVOIR STRAINER
3. REMOVE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
(a) Mount the brake master cylinder sub-assembly in a vise.

NOTE: Place aluminum plates on the vise to prevent damage to the brake master cylinder sub-assembly.

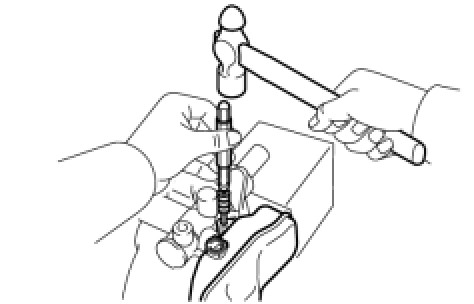

(b) Using a pin punch and a hammer, tap out the straight pin and remove the brake master cylinder reservoir assembly.
4. REMOVE MASTER CYLINDER RESERVOIR GROMMET
(a) Remove the 2 master cylinder reservoir grommets from the brake master cylinder reservoir assembly.
