Removal

BRAKE CONTROL: BRAKE ACTUATOR: REMOVAL

REMOVAL

1. DRAIN BRAKE FLUID

NOTE: Wash brake fluid off immediately if it adheres to any painted surface.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE BRAKE ACTUATOR WITH BRACKET

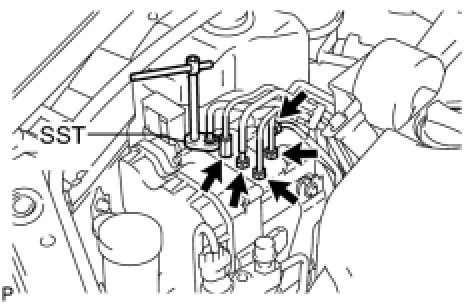

(a) Using SST, disconnect the 6 brake tubes from the actuator with bracket.
SST: 09023-00101

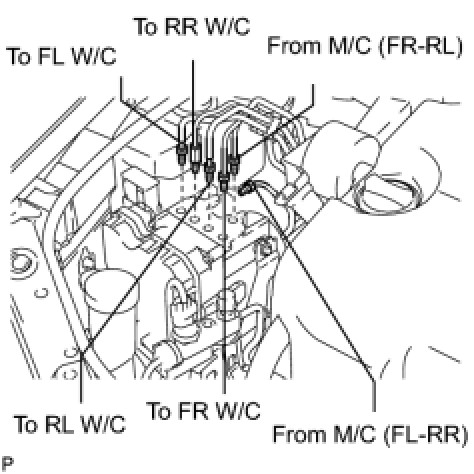

(b) Use tags or make a memo to identify the reconnection points.

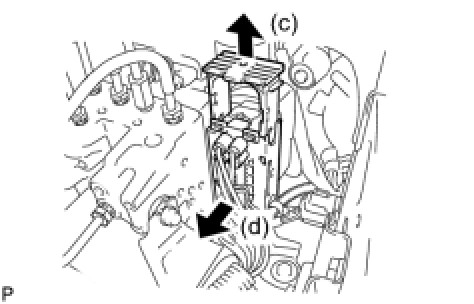

(c) Pull the lock lever upward.
(d) Disconnect the actuator connector.

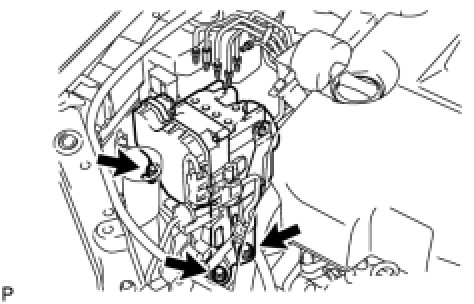

(e) Remove the 3 bolts and the actuator with bracket.

NOTE: Do not damage the brake tubes and wire harness.
