PARKING BRAKE: PARKING BRAKE CABLE: INSTALLATION

INSTALLATION

1. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.3





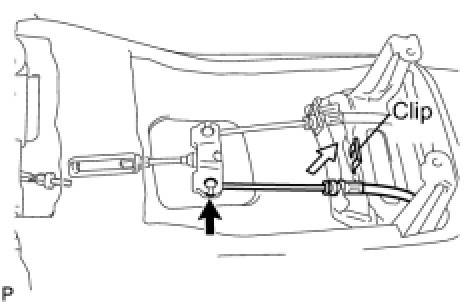

(a) Connect the parking brake cable assembly No.3 to the parking brake equalizer.
(b) Fix the parking brake cable assembly No.3 with the clip.

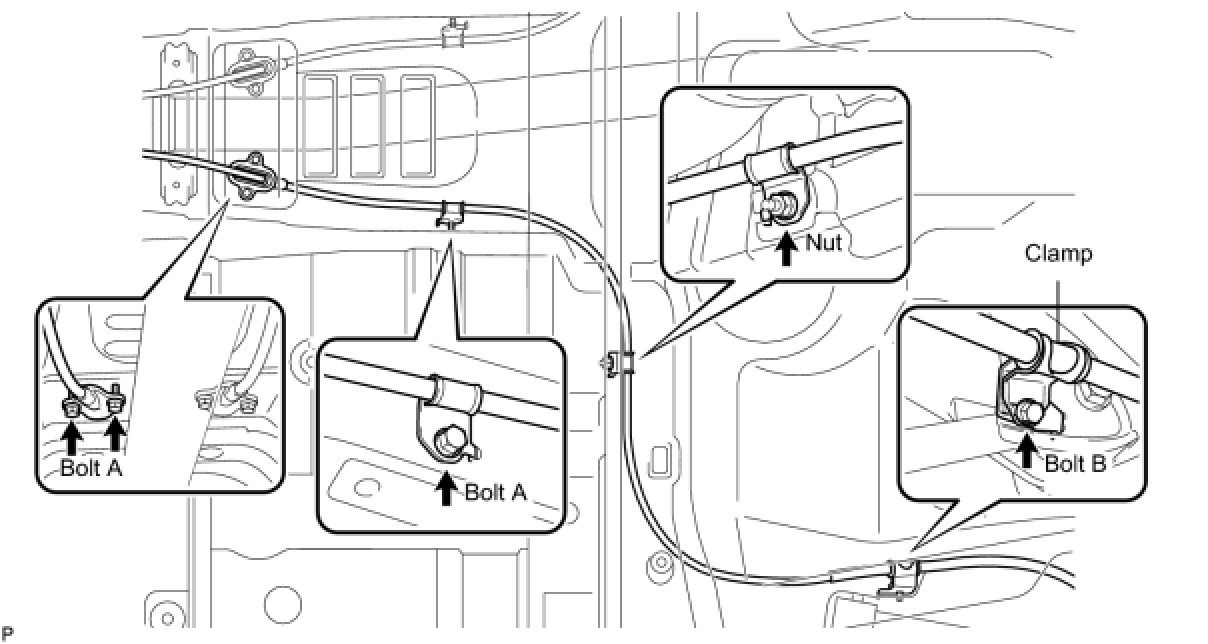

(c) Install the parking brake cable assembly No.3 with the bolts, nut and clamp as shown in the illustration.
Bolt A - Torque: 8.5 Nm (87 kgf-cm, 75 in-lbf)
Bolt B - Torque: 6.0 Nm (61 kgf-cm, 53 in-lbf)
Nut - Torque: 6.0 Nm (61 kgf-cm, 53 in-lbf)

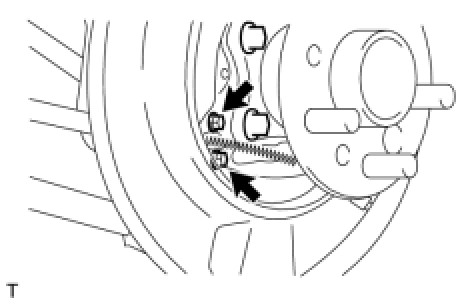

(d) Connect the parking brake cable assembly No.3 to the backing plate with the 2 bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
2. APPLY HIGH TEMPERATURE GREASE Reassembly
3. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY Reassembly
4. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET Reassembly
5. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY Reassembly
6. INSTALL PARKING BRAKE SHOE STRUT Reassembly
7. INSTALL PARKING BRAKE SHOE RETURN TENSION NO. 1 SPRING Reassembly
8. INSPECT PARKING BRAKE INSTALLATION Reassembly
9. INSTALL REAR DISC Reassembly
10. ADJUST PARKING BRAKE SHOE CLEARANCE Reassembly
11. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH Reassembly
12. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
13. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.4 Installation
14. INSTALL CONSOLE BOX ASSEMBLY
15. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
16. INSTALL CONSOLE BOX UPPER
17. INSTALL POSITION INDICATOR HOUSING ASSEMBLY
18. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
19. ADJUST PARKING BRAKE PEDAL TRAVEL Adjustments
