PARKING BRAKE: PARKING BRAKE PEDAL: DISASSEMBLY

DISASSEMBLY

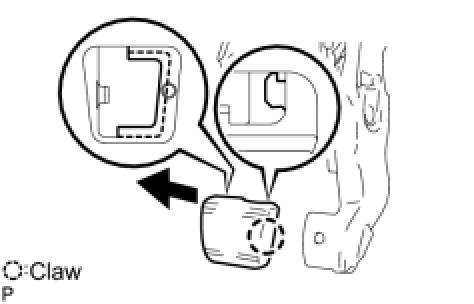

1. REMOVE PARKING PEDAL PAD





(a) Disengage the claw and remove the parking pedal pad from the parking brake control pedal assembly.

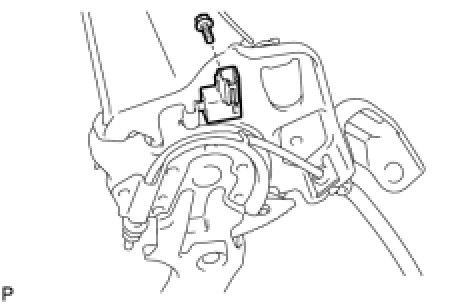

2. REMOVE PARKING BRAKE SWITCH ASSEMBLY





(a) Remove the screw and parking brake switch assembly from the parking brake control pedal assembly.

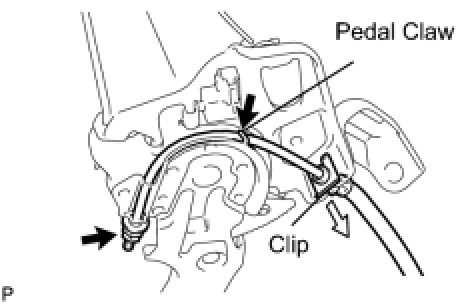

3. REMOVE PARKING BRAKE CABLE ASSEMBLY NO.1





(a) Pull up the parking brake pedal claw.
(b) Remove the lock nut and wire adjusting nut No.1 of the parking brake cable assembly No.1 from the parking brake pedal assembly.
(c) Remove the clip and parking brake cable assembly No.1 from the parking brake control pedal assembly.
