Reassembly

PARKING BRAKE: PARKING BRAKE PEDAL: REASSEMBLY

REASSEMBLY

1. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.1

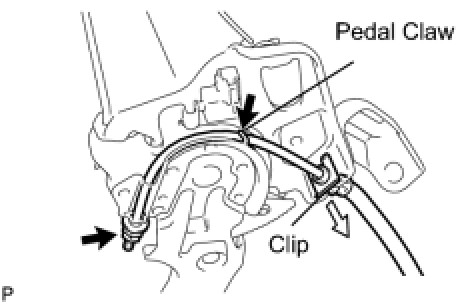

(a) Pass the parking brake cable assembly No.1 through the parking brake control pedal and hold the cable with the clip.
(b) Pass the parking brake cable through the pedal guide. Temporarily tighten the wire adjusting nut No.1 and lock nut.

HINT: Fully tighten the wire adjusting nut No.1 and lock nut when adjusting the parking brake pedal free play.

(c) Fully bend the parking brake pedal claw.
2. INSTALL PARKING BRAKE SWITCH ASSEMBLY





(a) Install the parking brake switch assembly with the screw.
Torque: 0.9 Nm (9 kgf-cm, 7.8 in-lbf)
3. INSTALL PARKING PEDAL PAD

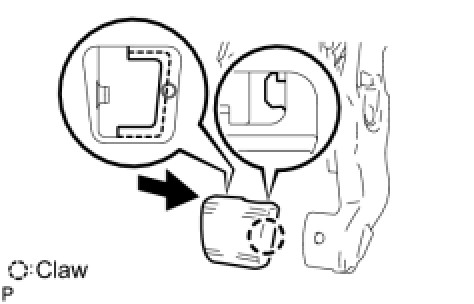

(a) Engage the claw and install the parking pedal pad on the parking brake control pedal assembly.
