PARKING BRAKE: PARKING BRAKE PEDAL: INSTALLATION

INSTALLATION

1. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY

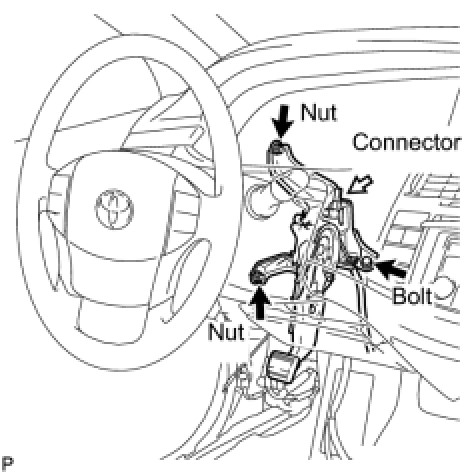

(a) Install the parking brake control pedal assembly with the bolt and 2 nuts.
Bolt - Torque: 39 Nm (398 kgf-cm, 29 ft-lbf)
Nut - Torque: 39 Nm (398 kgf-cm, 29 ft-lbf)
(b) Connect the connector to the parking brake switch assembly.

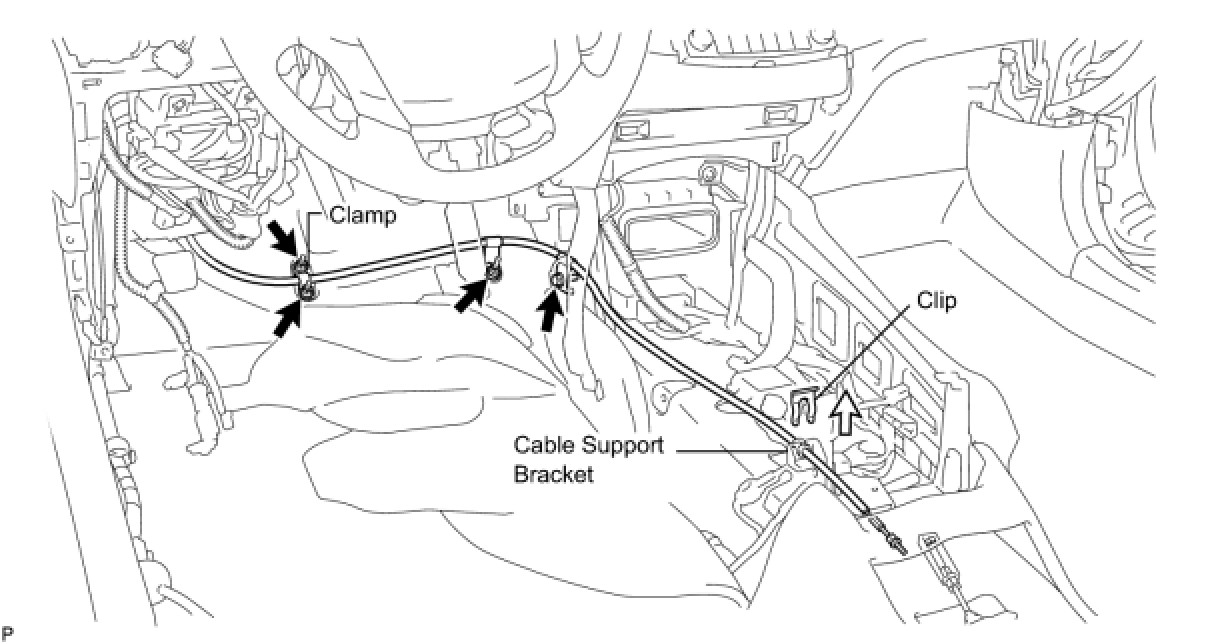

(c) Install the parking brake cable assembly No.1 to the body with the clamp, 3 nuts and bolt.





Bolt - Torque: 13 Nm (132 kgf-cm, 10 ft-lbf)
Nut - Torque: 5.4 Nm (55 kgf-cm, 48 ft-lbf)
(d) Install the parking brake cable assembly No.1 to the cable support bracket with the clip.
2. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.4

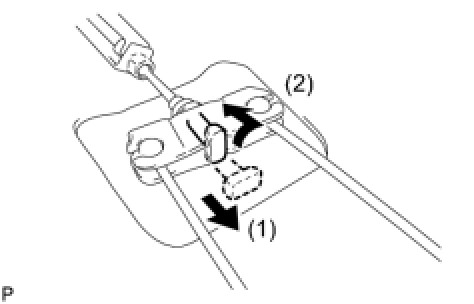

(a) Install the parking brake cable assembly No.4 to the parking brake equalizer as shown in the illustration.

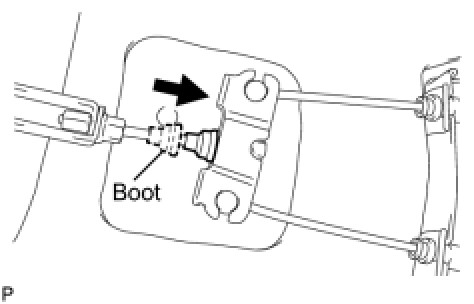

(b) Slide the boot back as shown in the illustration.

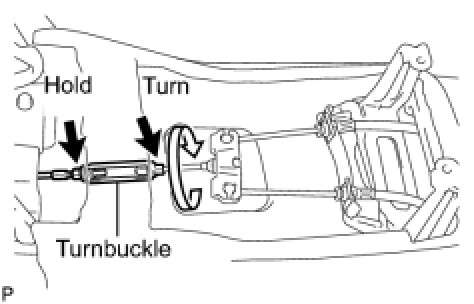

(c) Hold the nut on the parking brake cable assembly No.1 using a wrench. Tighten the turnbuckle of the parking brake cable assembly No.4 using a wrench.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
3. INSTALL SHIFT & SELECT LEVER SUPPORT

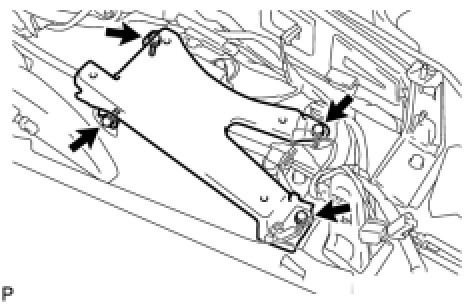

(a) Install the shift & select lever support to the body with the 4 bolts.
4. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY
5. INSTALL CONSOLE BOX DUCT NO.1
6. INSTALL CONSOLE BOX FRONT
7. INSTALL CONSOLE BOX ASSEMBLY
8. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
9. INSTALL CONSOLE BOX UPPER
10. INSTALL POSITION INDICATOR HOUSING ASSEMBLY
11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
12. INSTALL INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1
13. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL LH
14. INSTALL INSTRUMENT SIDE PANEL LH
15. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
16. INSTALL FRONT DOOR SCUFF PLATE LH
17. INSTALL FRONT LH SEAT ASSEMBLY Installation
18. INSTALL REAR SEAT TRACK BRACKET COVER INNER LH
19. INSTALL FRONT SEAT TRACK COVER LH REAR OUTER
20. INSTALL SEAT TRACK BRACKET COVER INNER FRONT LH
21. INSTALL SEAT TRACK BRACKET COVER OUTER FRONT LH
22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

23. INSPECT SRS WARNING LIGHT Installation
24. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL Adjustments
