Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Power Brake Assist
>>
Vacuum Brake Booster
>>
Service and Repair
>>
Components
Components

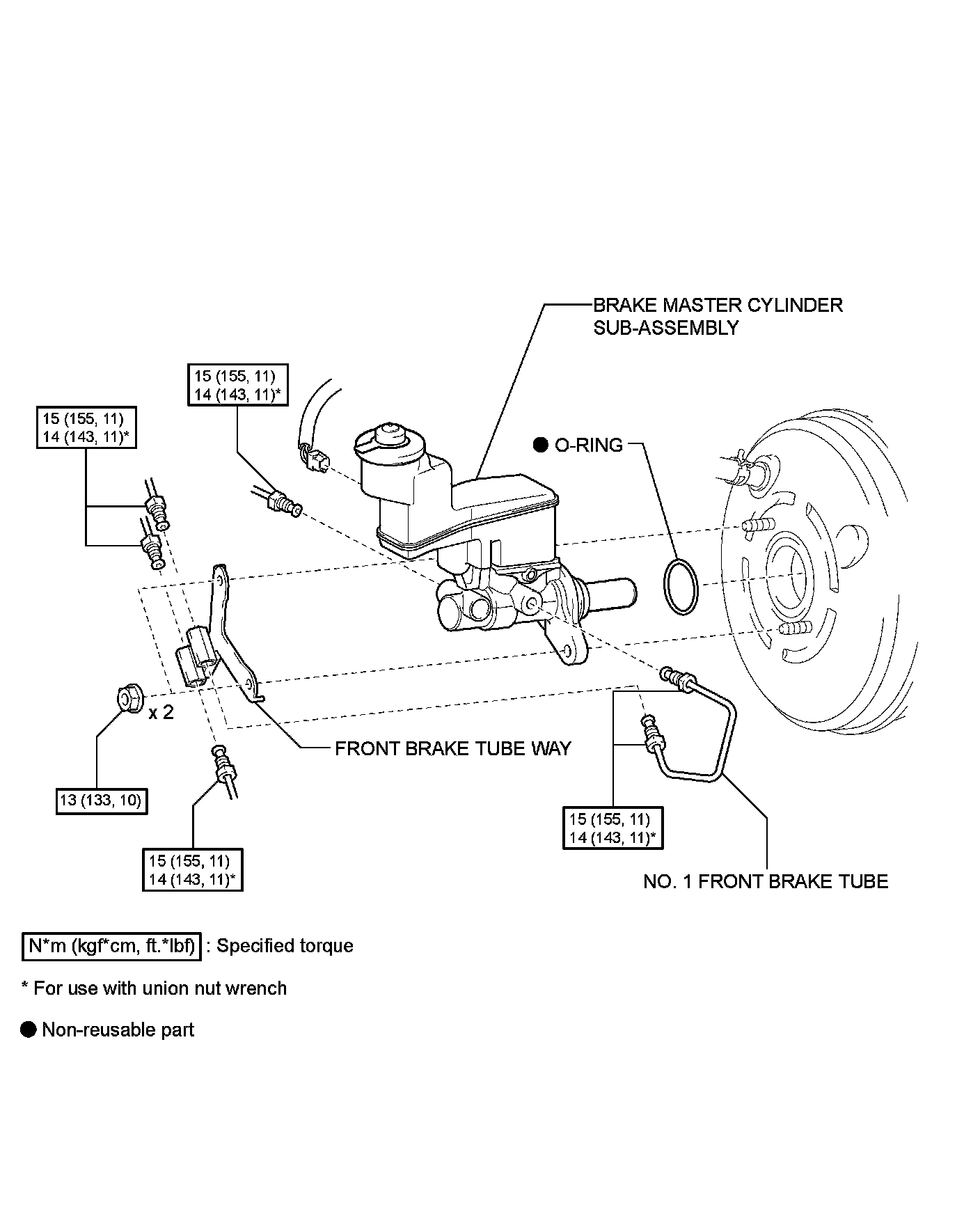

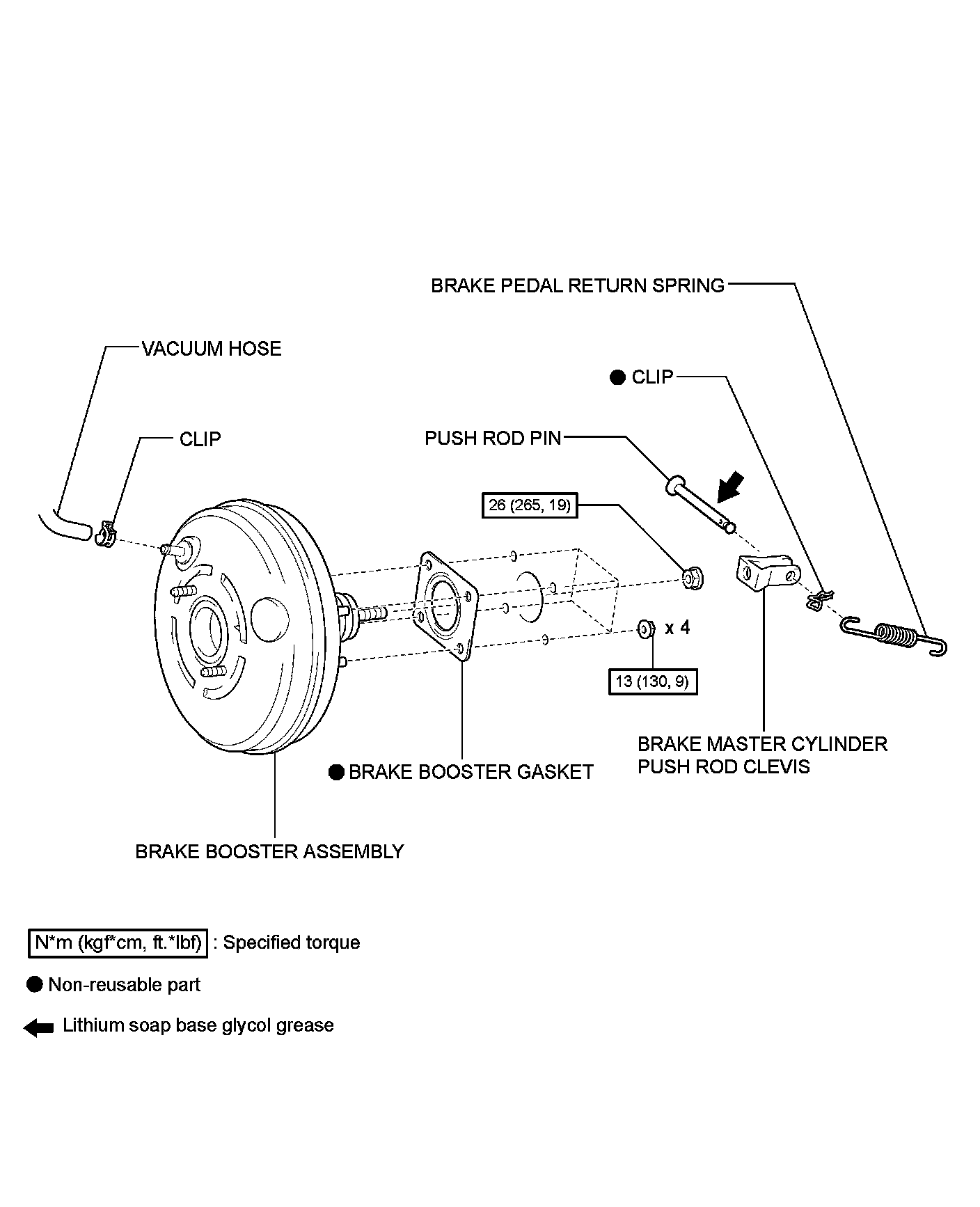

BRAKE: BRAKE BOOSTER: COMPONENTS
COMPONENTS
ILLUSTRATION
