Brakes and Traction Control: Testing and Inspection

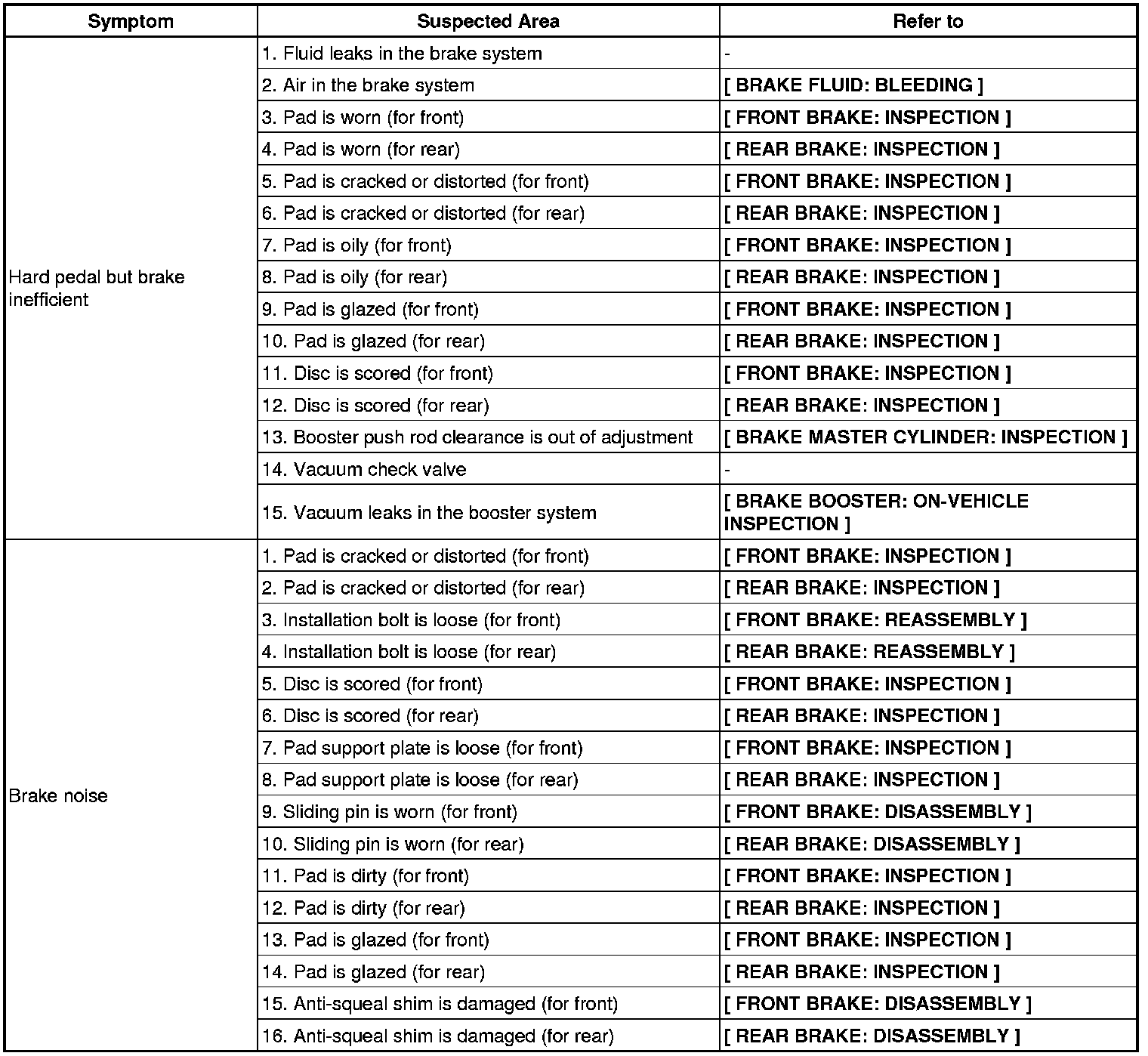

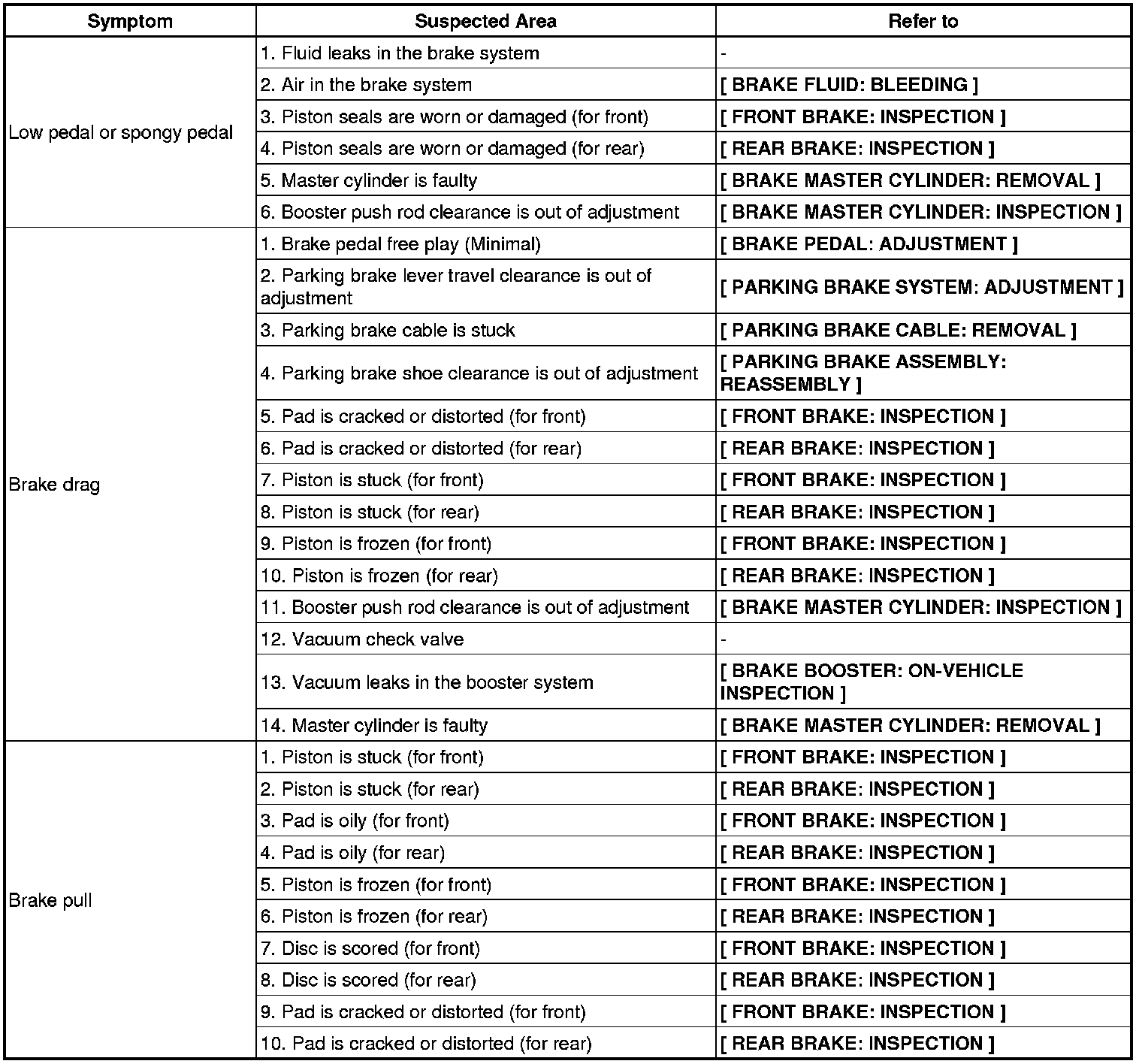

BRAKE: BRAKE SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

Use the table below to help find the cause of each problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
