Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Cruise Control System
Cruise Control System
CRUISE CONTROL
: CRUISE CONTROL SYSTEM: TERMINALS OF ECU

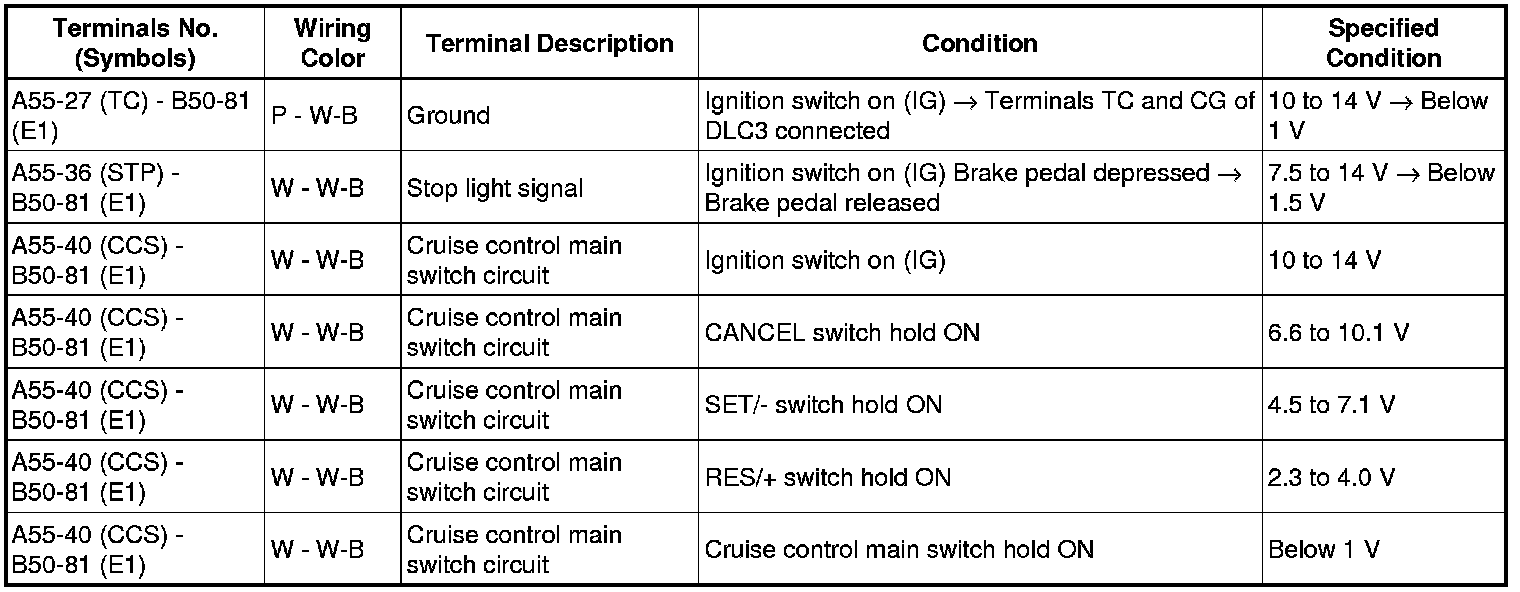

TERMINALS OF ECU
1.
CHECK ECM
