Dynamic Laser Cruise Control System

CRUISE CONTROL: DYNAMIC LASER CRUISE CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE

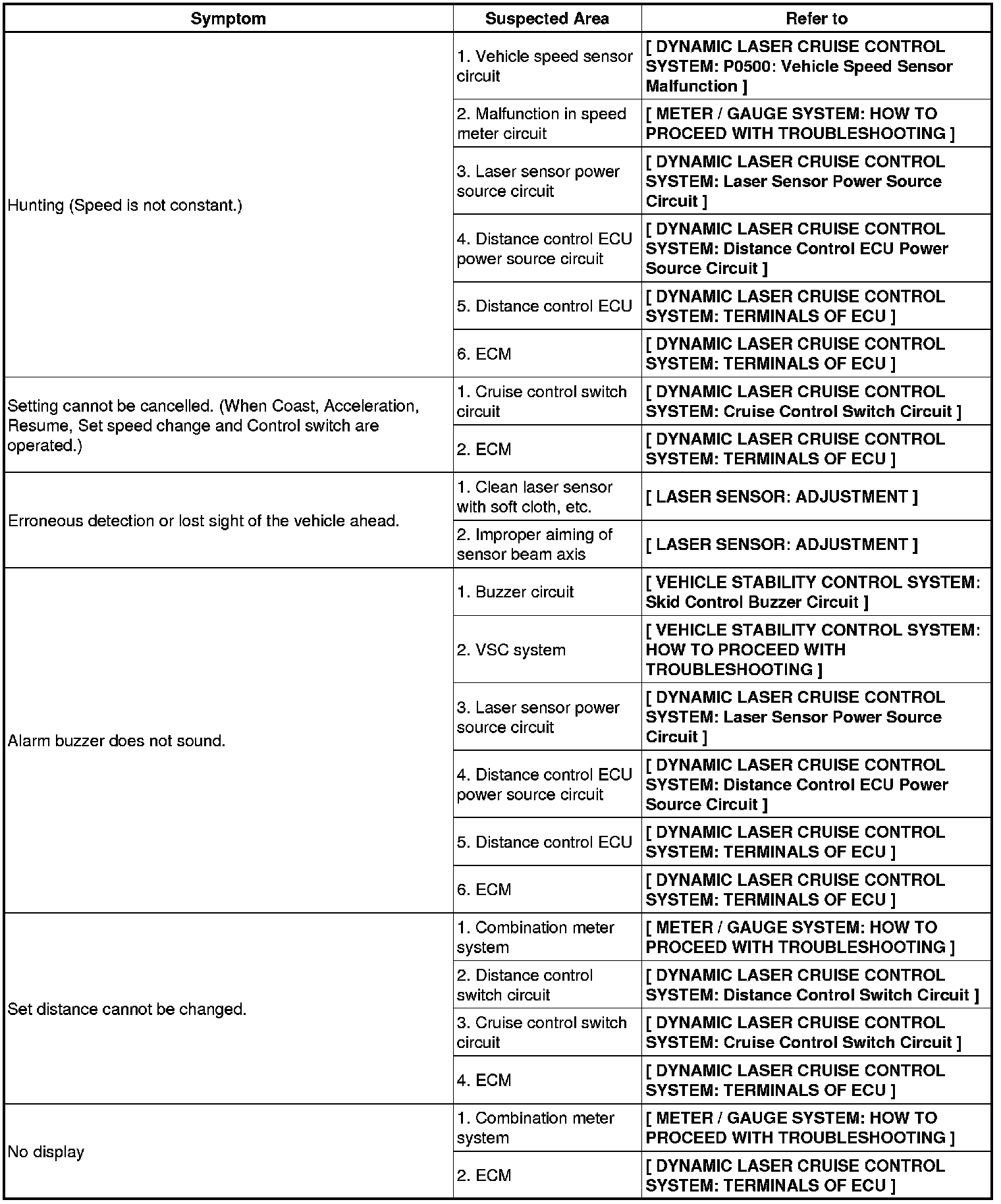

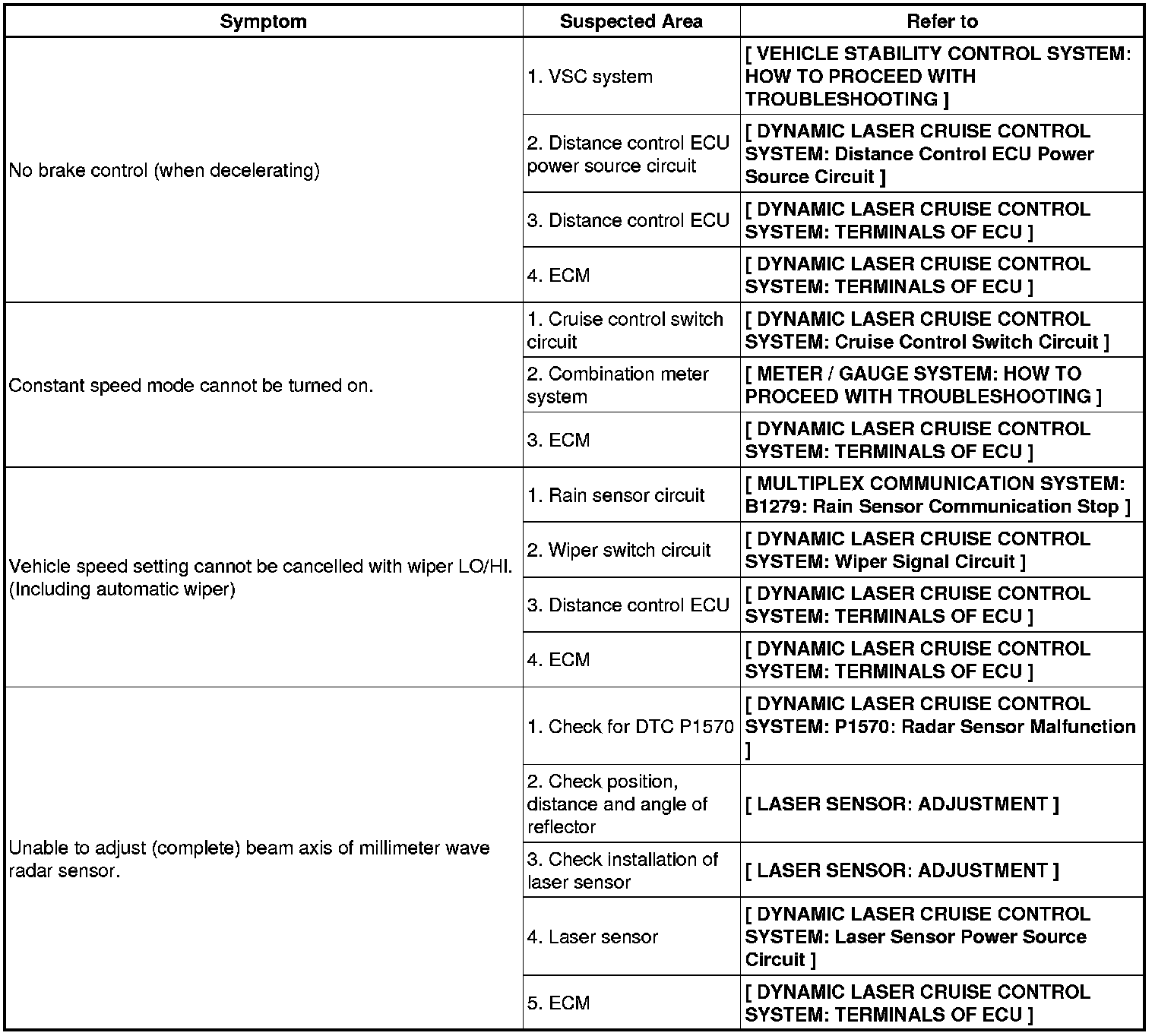

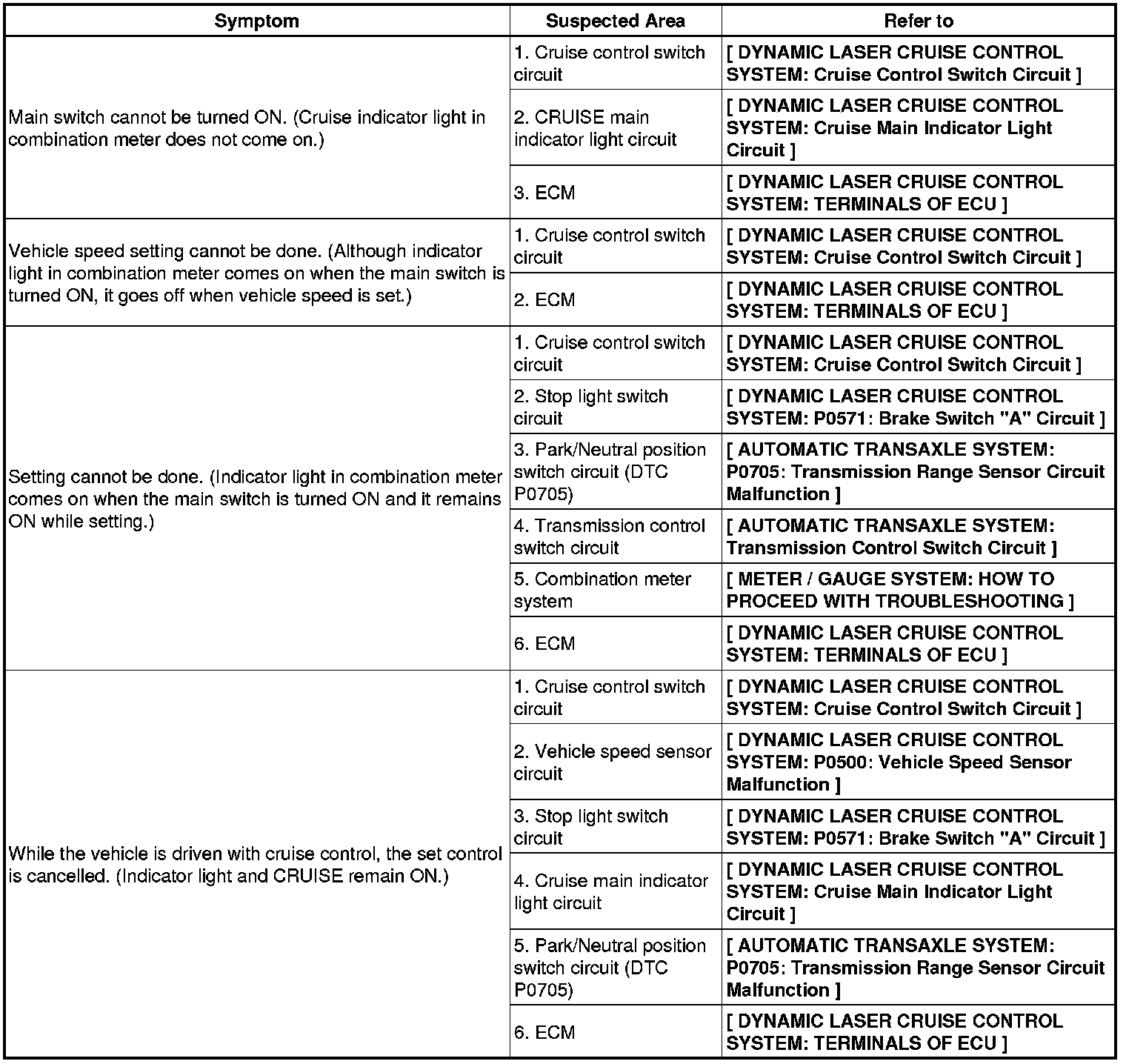

PROBLEM SYMPTOMS TABLE

If a normal system code is displayed during the DTC check but the problem still occurs, check the suspected areas for each problem symptom in the order given in the table below.

HINT: Inspect the "Fuse" and "Relay" before confirming the suspected areas as shown in the chart below. Inspect each suspected area for the corresponding symptom in numerical order.

DYNAMIC LASER CRUISE CONTROL SYSTEM
