Problem Symptoms Table

CRUISE CONTROL: CRUISE CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

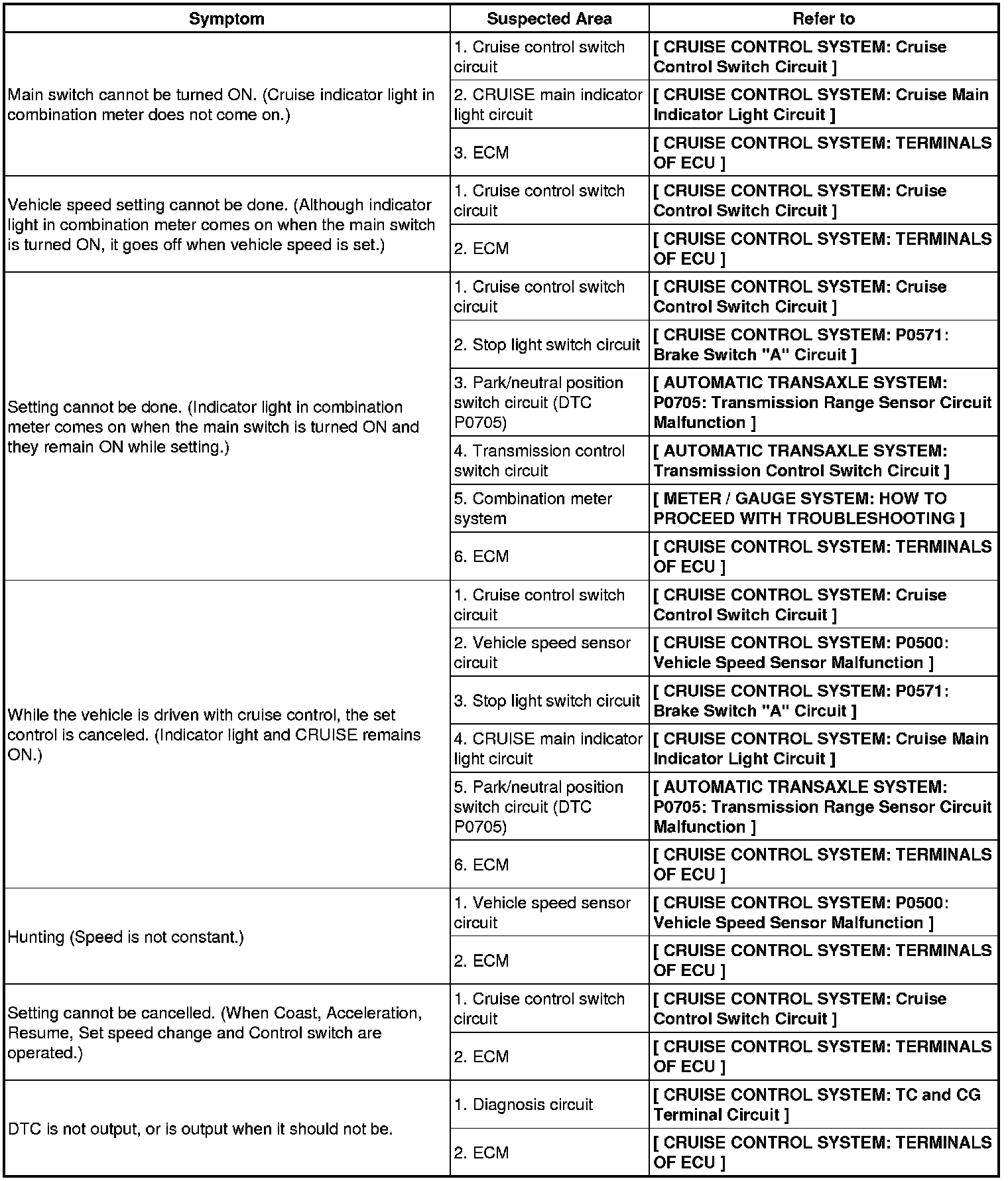

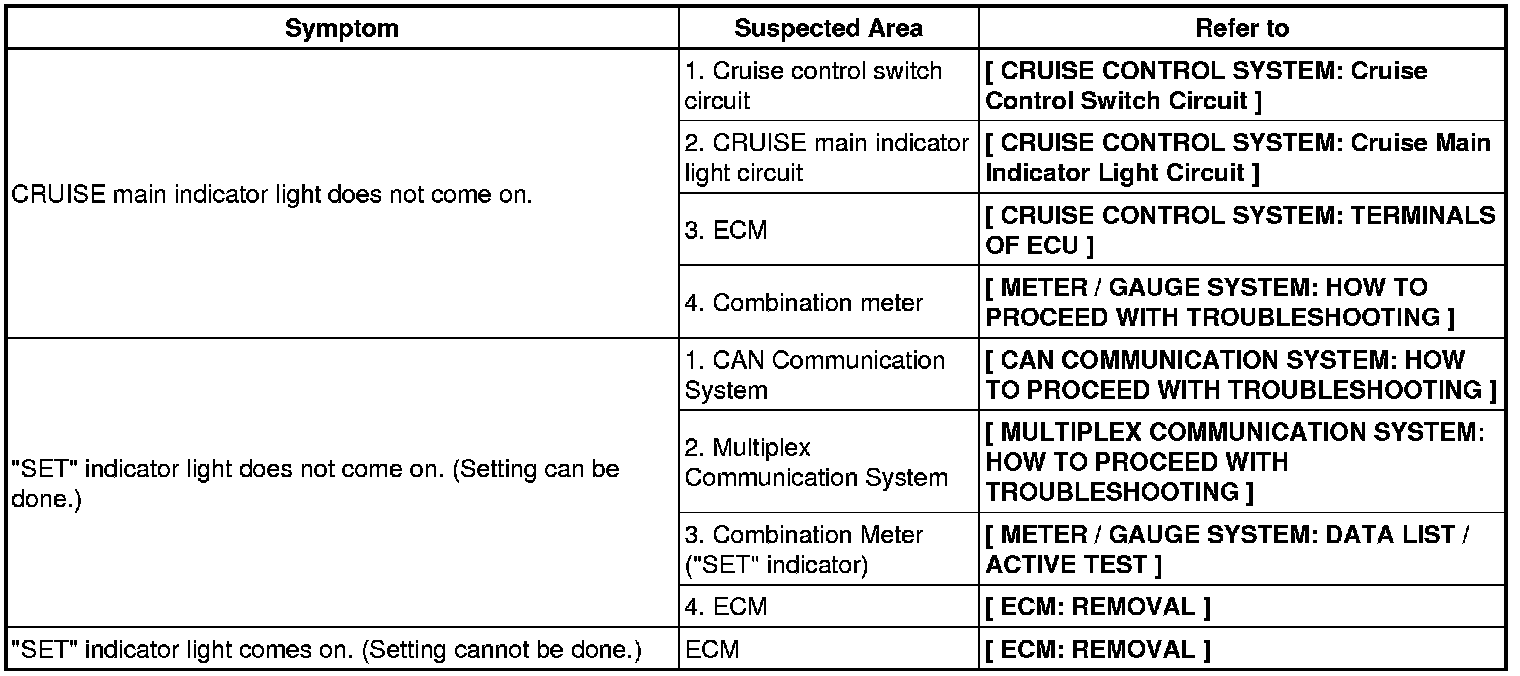

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table below.

HINT: Inspect the "Fuse" and "Relay" before confirming the suspected areas as shown in the chart below. Inspect each malfunction circuit in numerical order for the corresponding symptom.

CRUISE CONTROL SYSTEM
