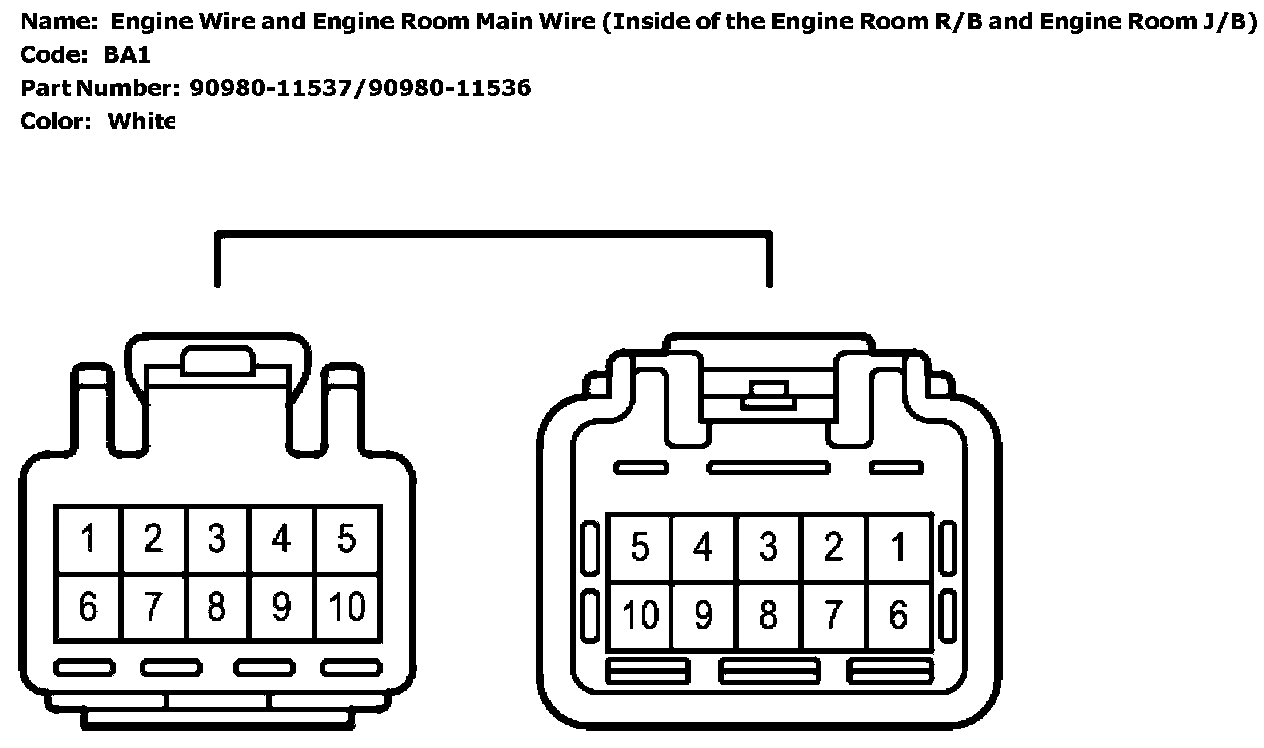

BA1 (Engine Wire and Engine Room Main Wire (Inside of the Engine Room R/B and Engine Room J/B))
BA1 (Engine Wire and Engine Room Main Wire (Inside of the Engine Room R/B and Engine Room J/B))
