Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

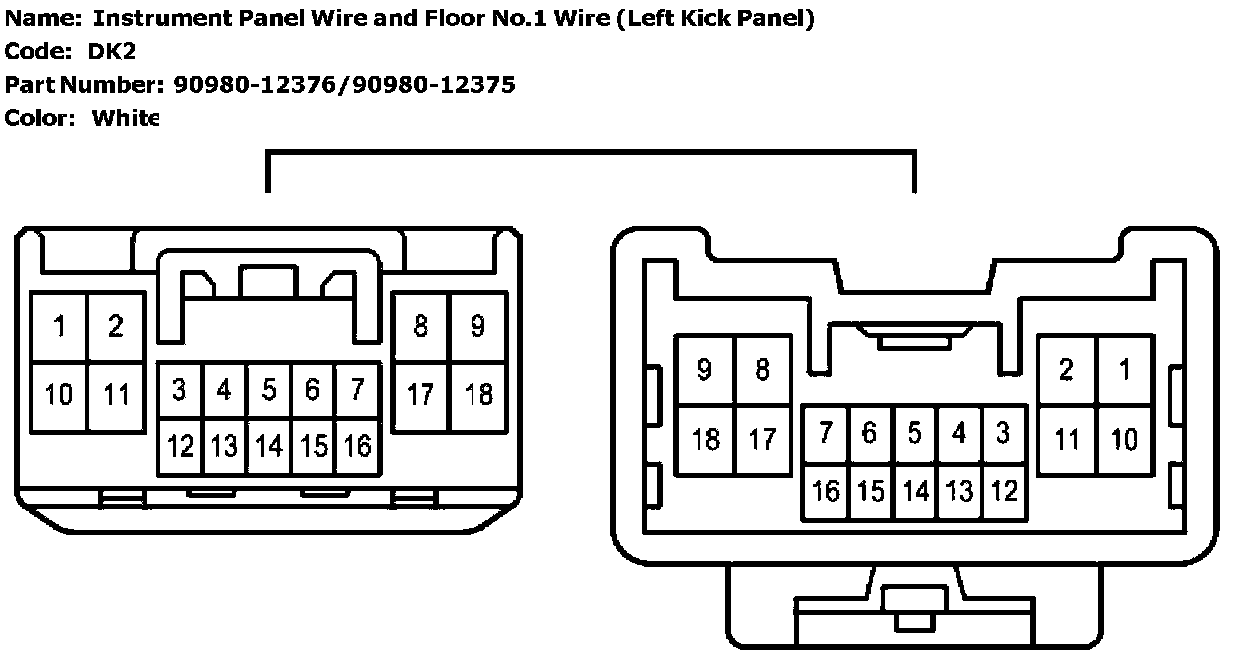

DK2 (Instrument Panel Wire and Floor No.1 Wire (Left Kick Panel))
DK2 (Instrument Panel Wire and Floor No.1 Wire (Left Kick Panel))
