Home >> Toyota >> 2009 >> Avalon V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> IX1 (Rear Door RH Wire and Electrical Key Wire Rear RH (Inside of the Rear Door RH))

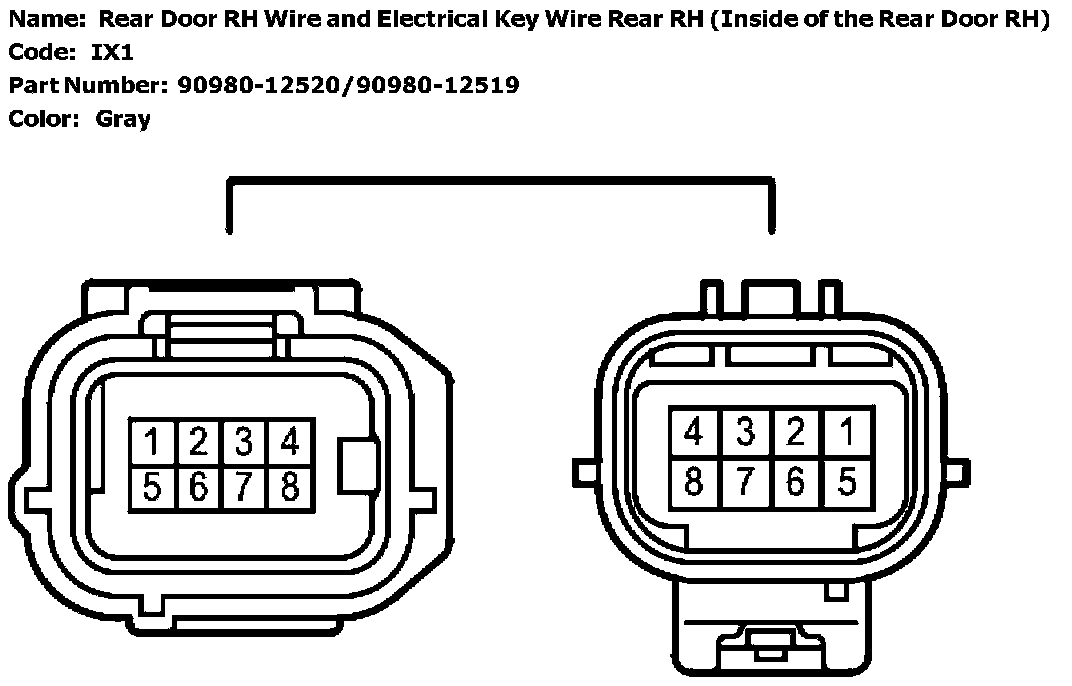

IX1 (Rear Door RH Wire and Electrical Key Wire Rear RH (Inside of the Rear Door RH))
