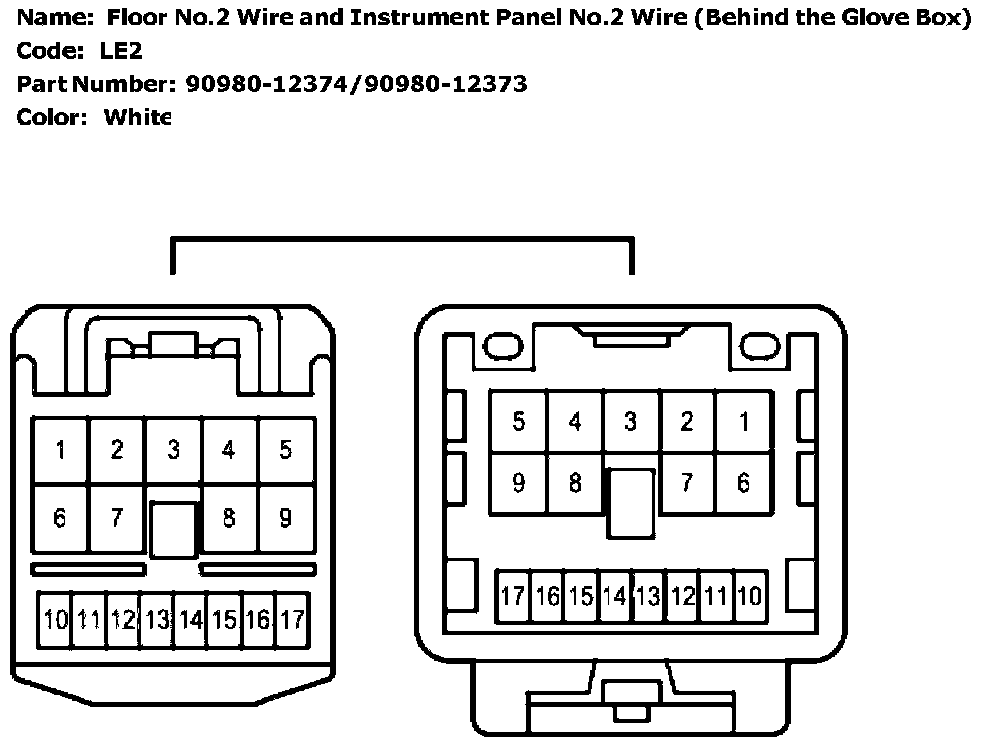

LE2 (Floor No.2 Wire and Instrument Panel No.2 Wire (Behind the Glove Box))
LE2 (Floor No.2 Wire and Instrument Panel No.2 Wire (Behind the Glove Box))
