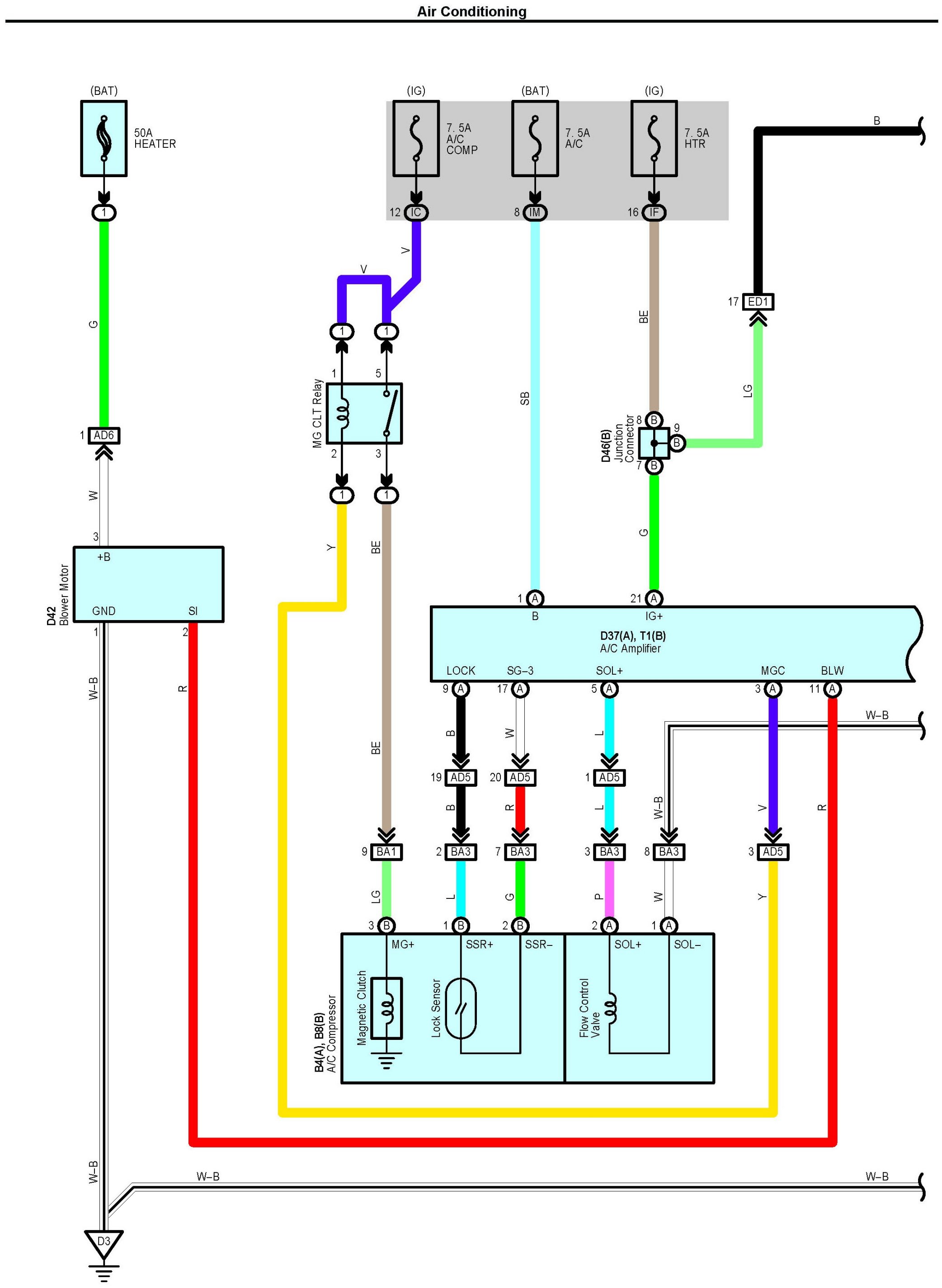

System Diagram

NOTE: In diagram 1 two compressors are represented, either the magnetic clutch type or flow control valve type.

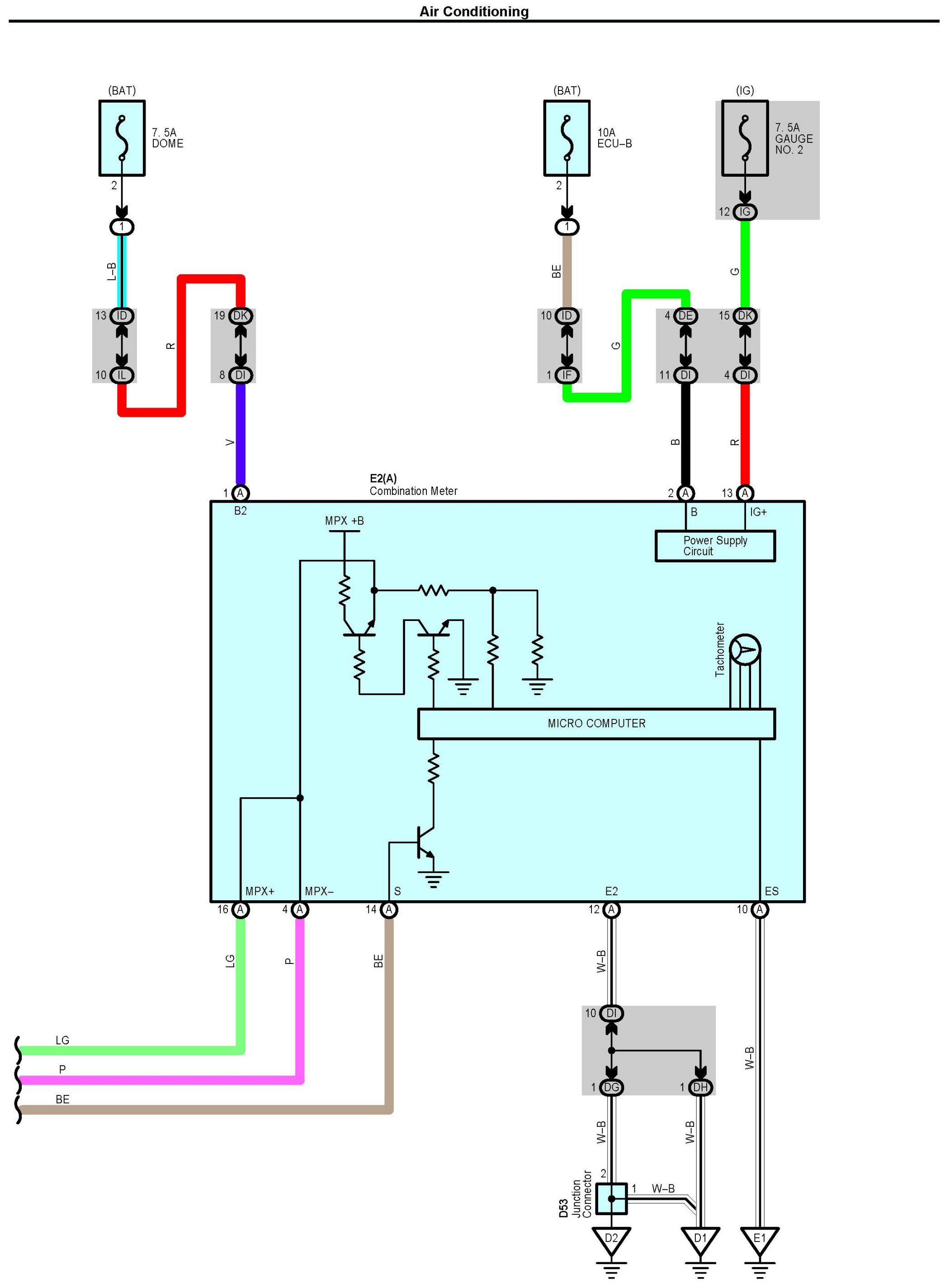

Air Conditioning Part 1:

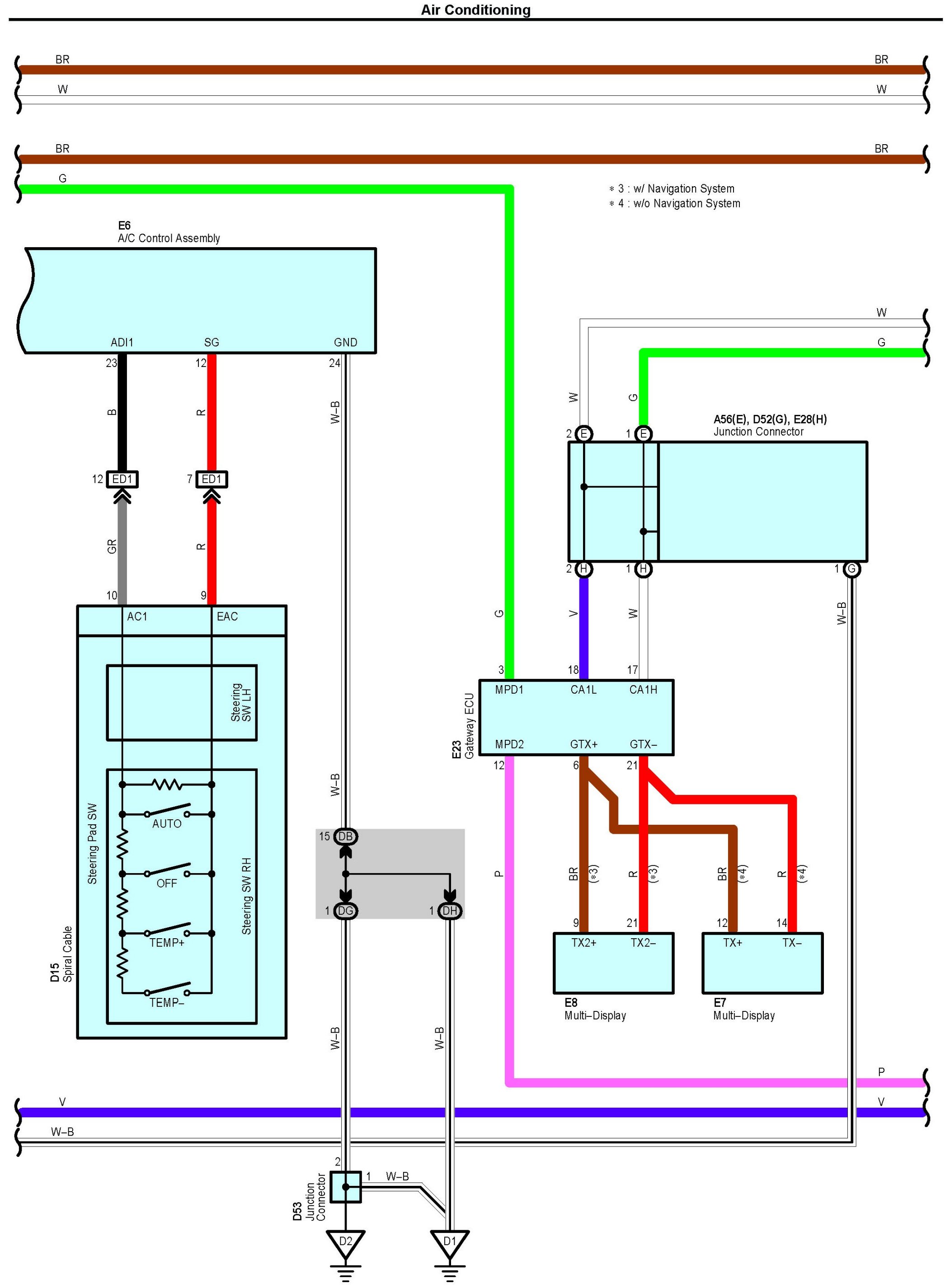

Air Conditioning Part 2:

Air Conditioning Part 3:

Air Conditioning Part 4:

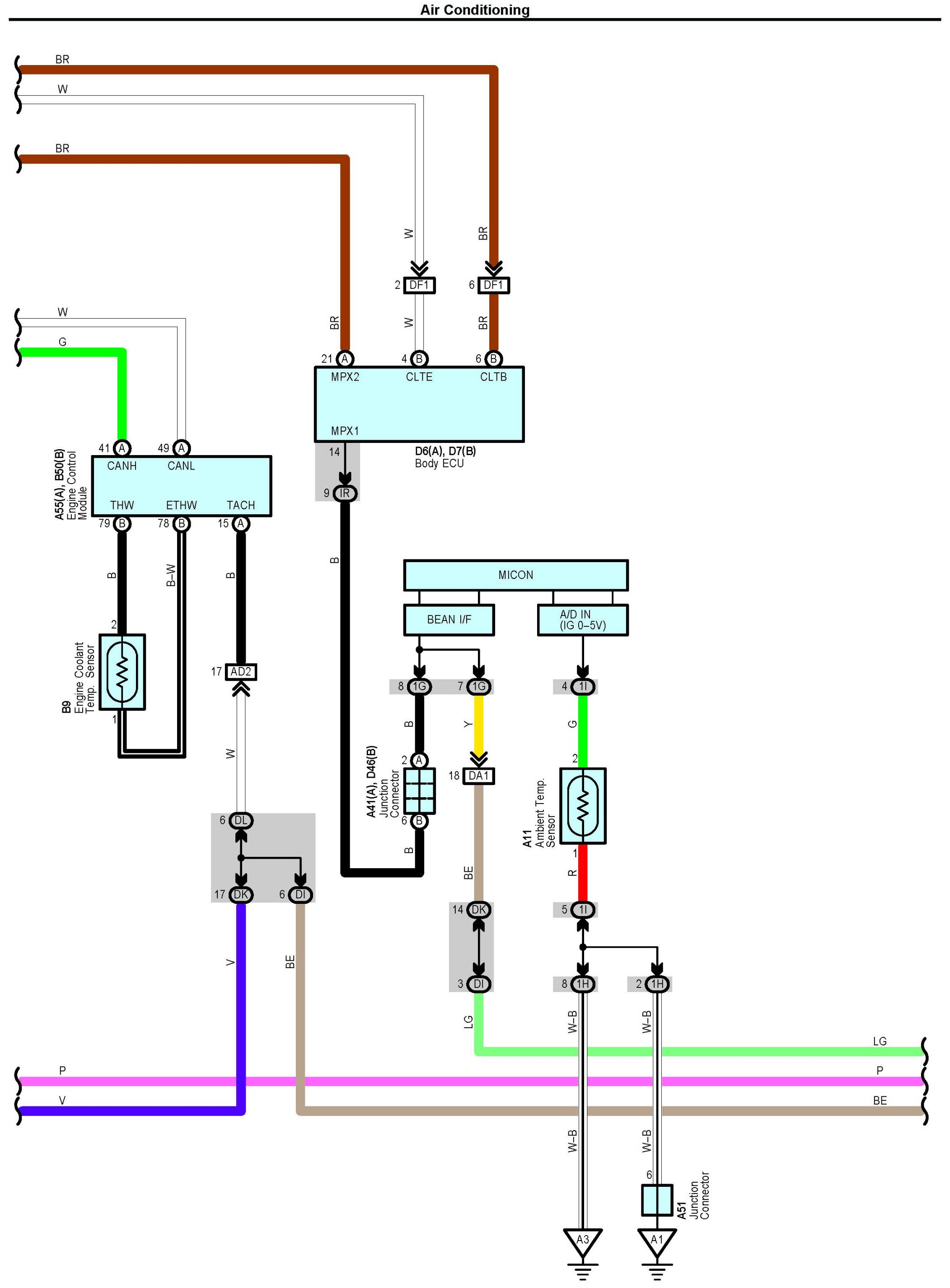

Air Conditioning Part 5:

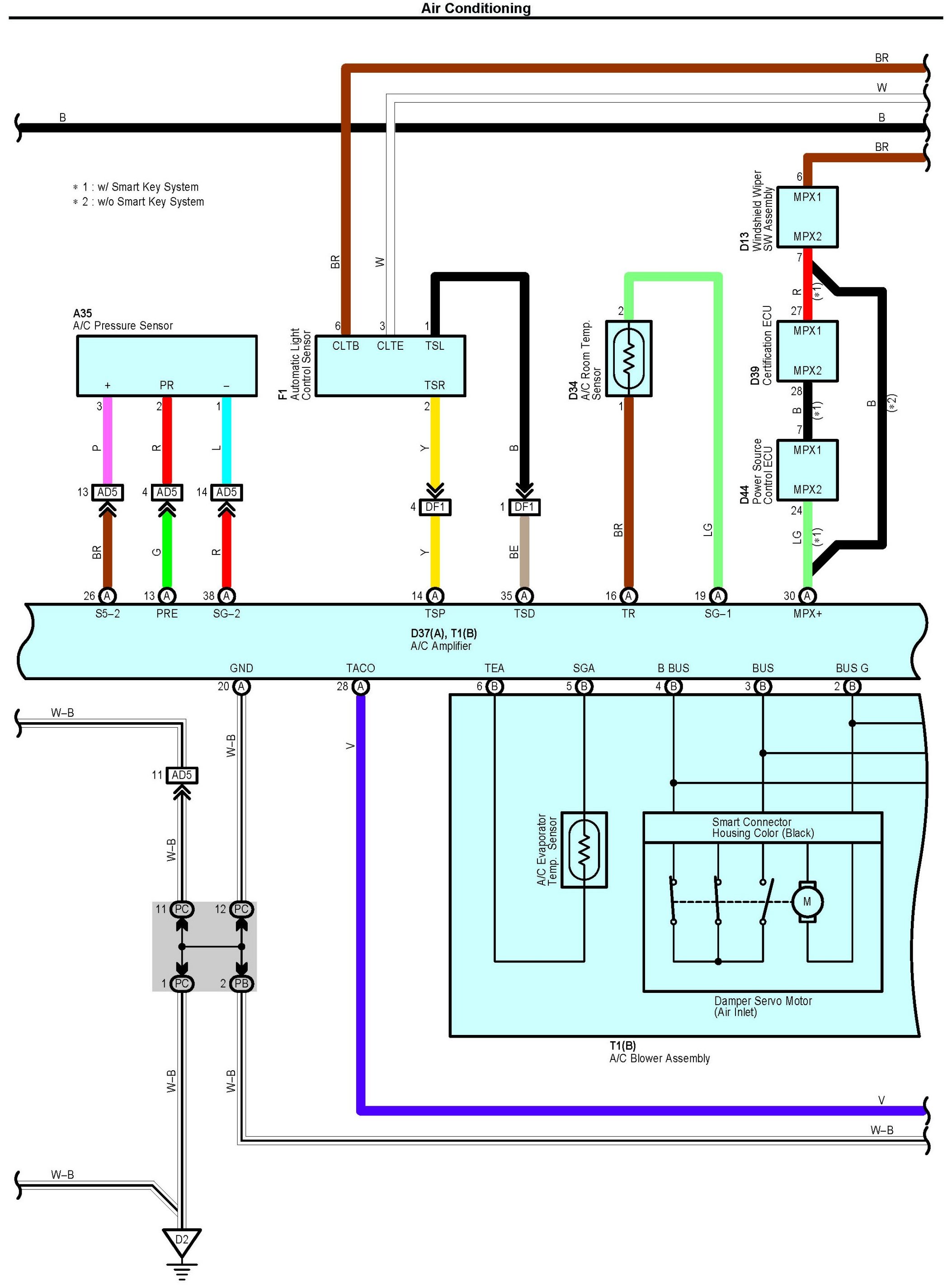

Air Conditioning Part 6:

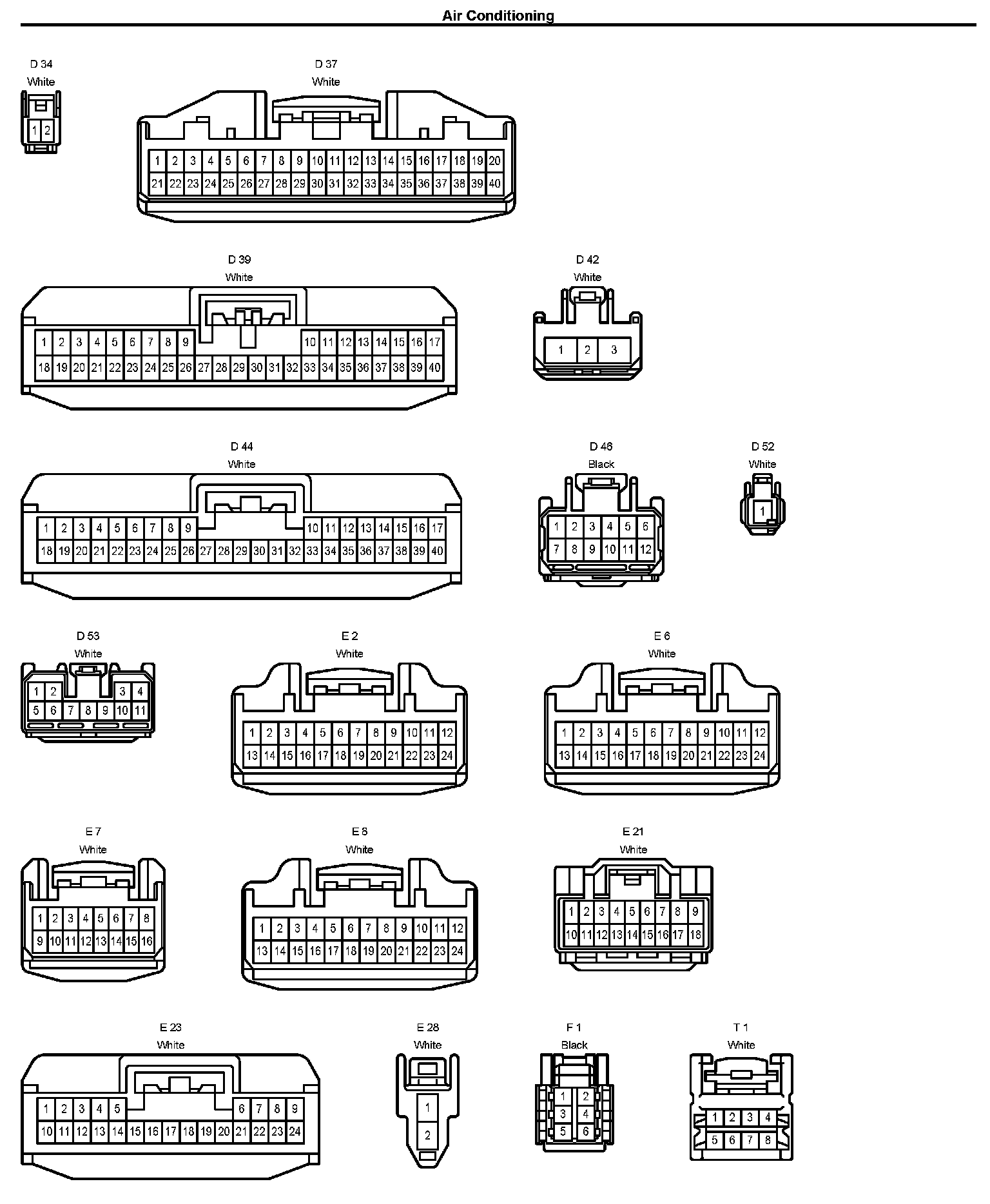

Connectors Part 1:

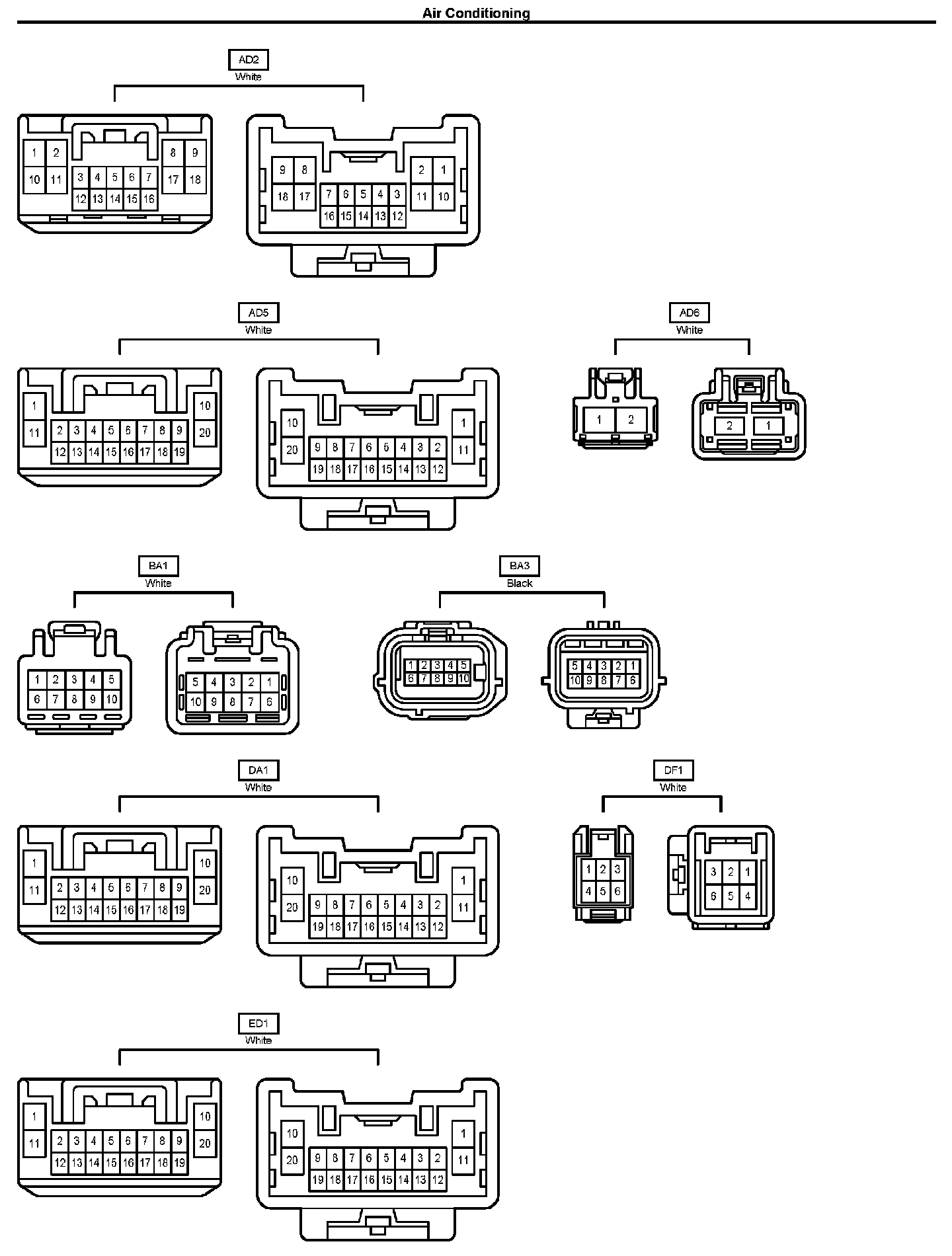

Connectors Part 2:

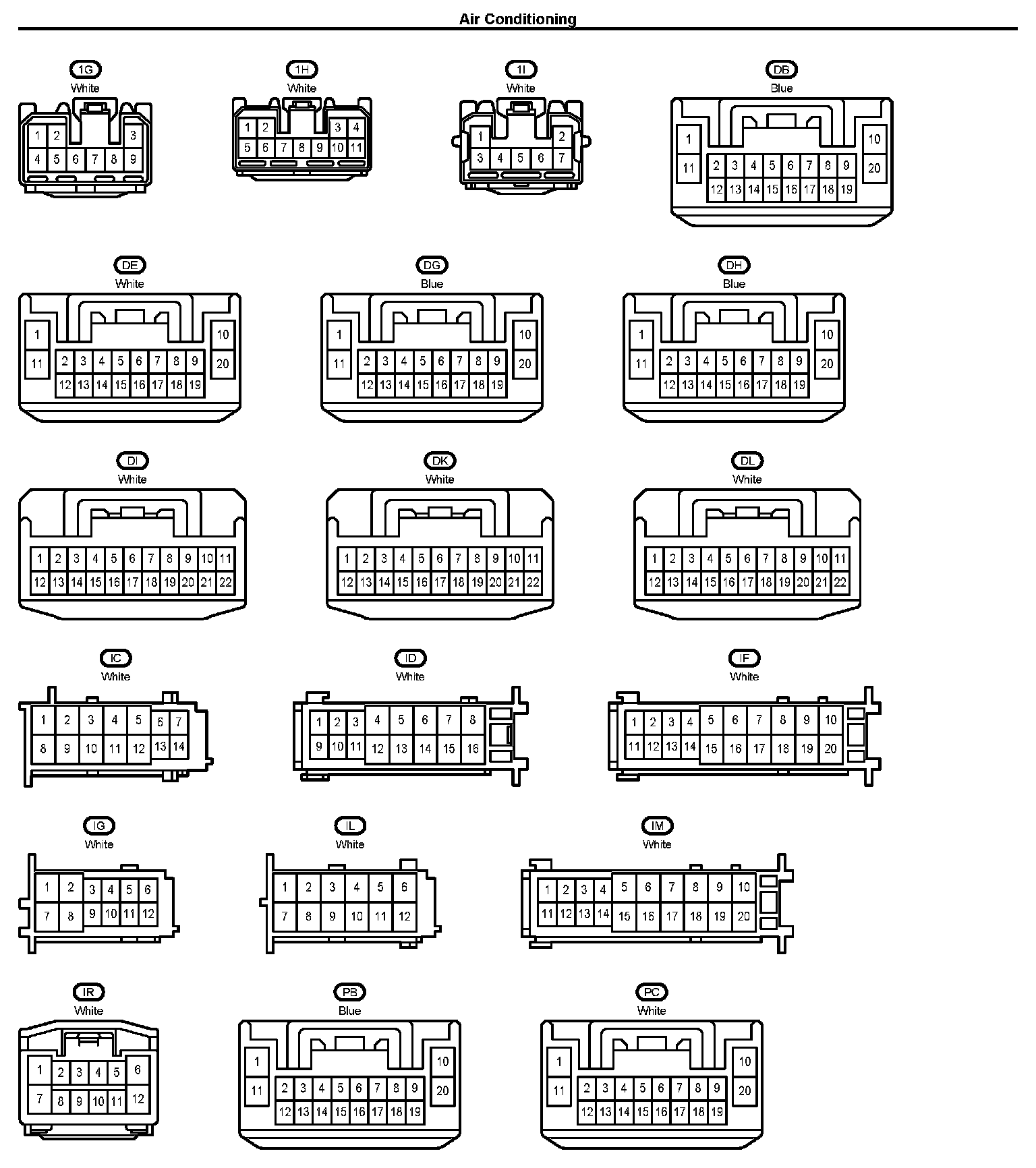

Connectors Part 3:

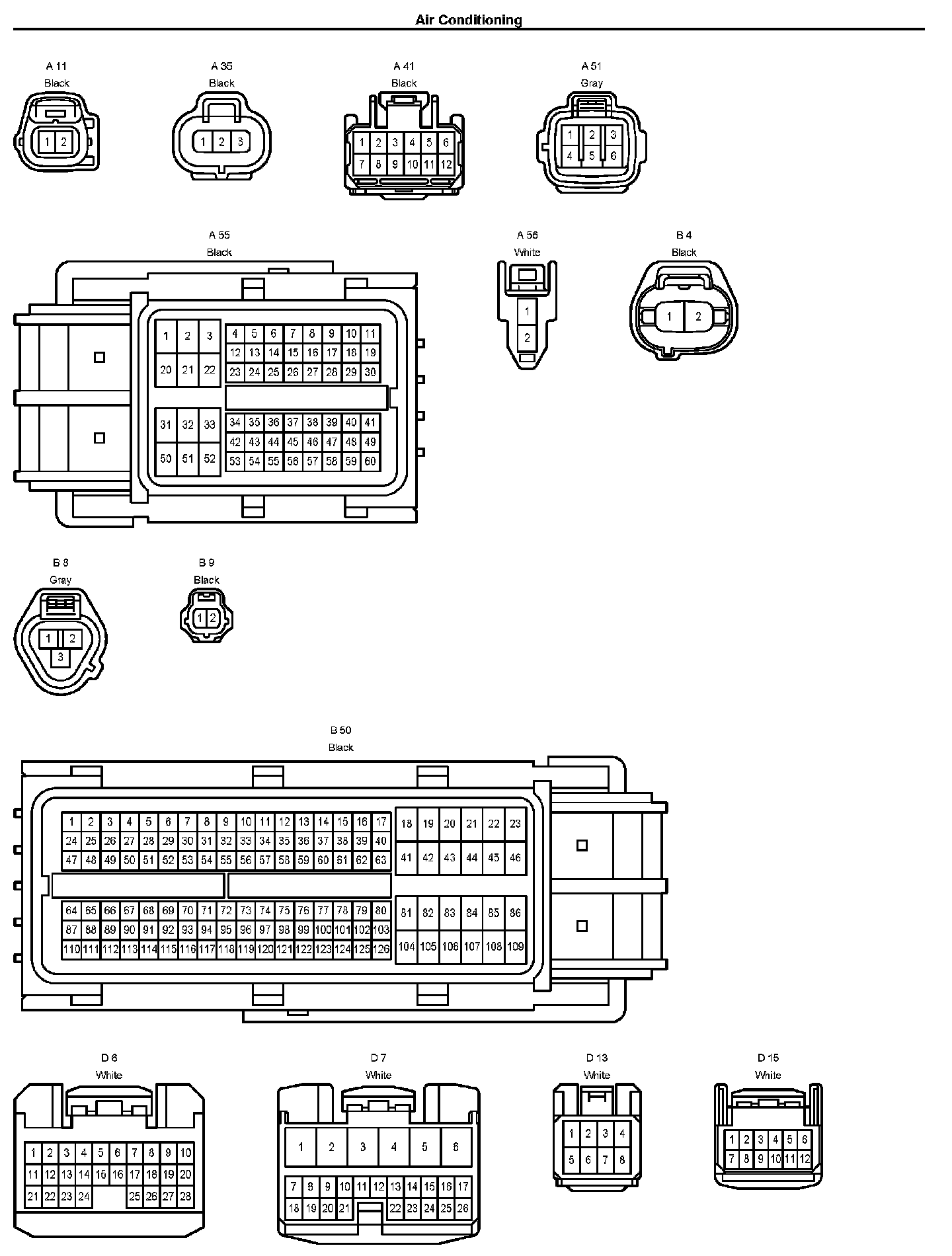

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
